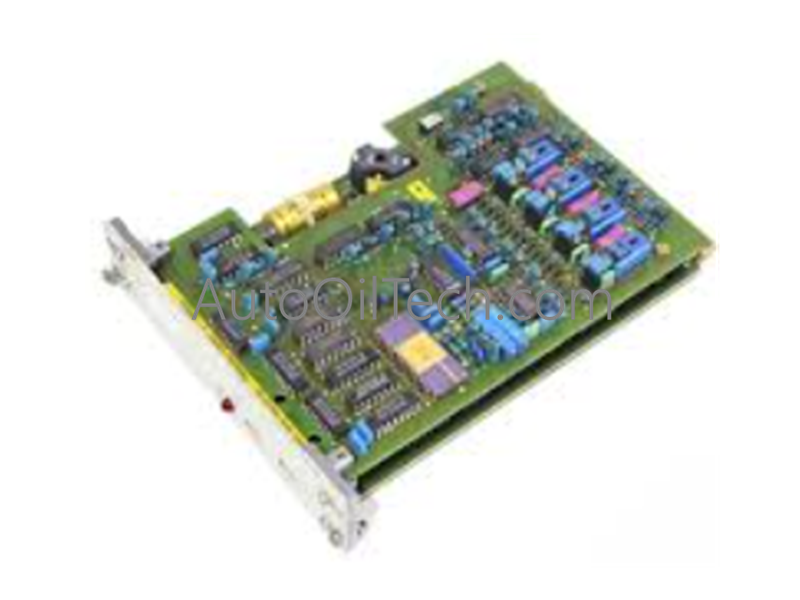

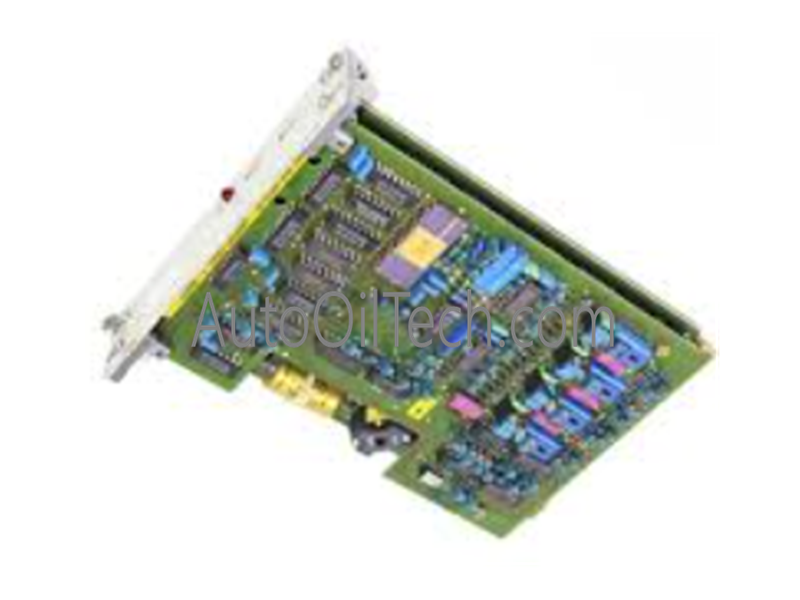

ABB 70EA01a-E Input Module

Product Description

The ABB 70EA01A-E (HESG446220R1) functions as a high-precision, rack-integrated analog input interface card engineered for distributed process automation architectures. It reliably converts continuous field sensor parameters into stable, high-resolution digital data.

Technical Specifications

• Brand: ABB
• Model Code: 70EA01A-E
• Part Reference: HESG446220R1
• Product Classification: Analog Input (AI) Signal Conditioning Card
• Conversion Architecture: Multi-channel precise analog-to-digital data processing
• Instrumentation Input Support: Accepts standard telemetry loops including 4-20 mA current and 0-10 V voltage potentials
• System Integration Compatibility: Tailored for proprietary ABB controllers and dedicated I/O subracks
• Data Refresh Profile: Synchronous high-speed scanning to prevent process variable lag
• Galvanic Isolation Barrier: Onboard filtering componentry protecting underlying processor bus logic
• Mounting Configuration: Slide-in rackmount chassis format with multi-pin rear backplane interface
• Hardware Resilience: Heavy-duty structural layout optimized for continuous long-term industrial deployment

Industrial Application Scenarios

This modular analog telemetry board mounts inside centralized control cabinets to continuously aggregate current loops from remote pressure transmitters, flowmeters, and thermal instrumentation, delivering noise-filtered values directly to the master processing node.
