ABB 5SHY3545L0006 AC Drives

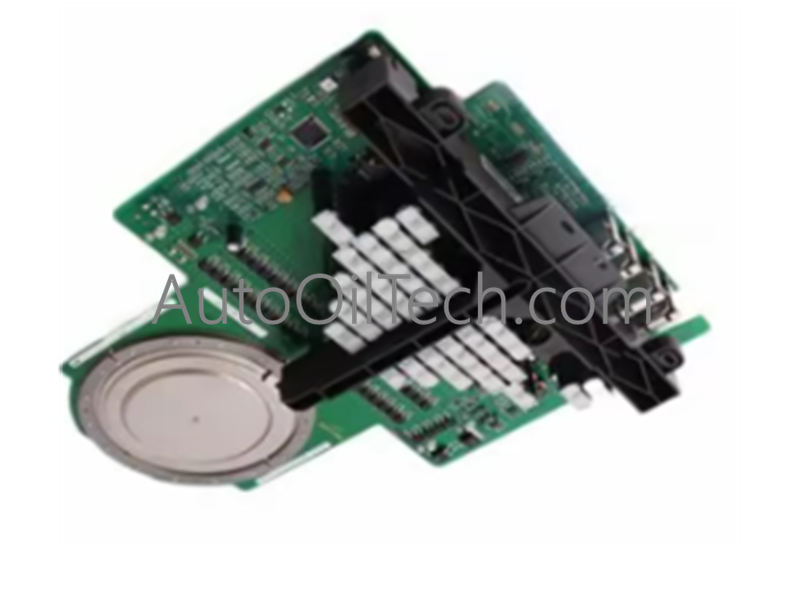

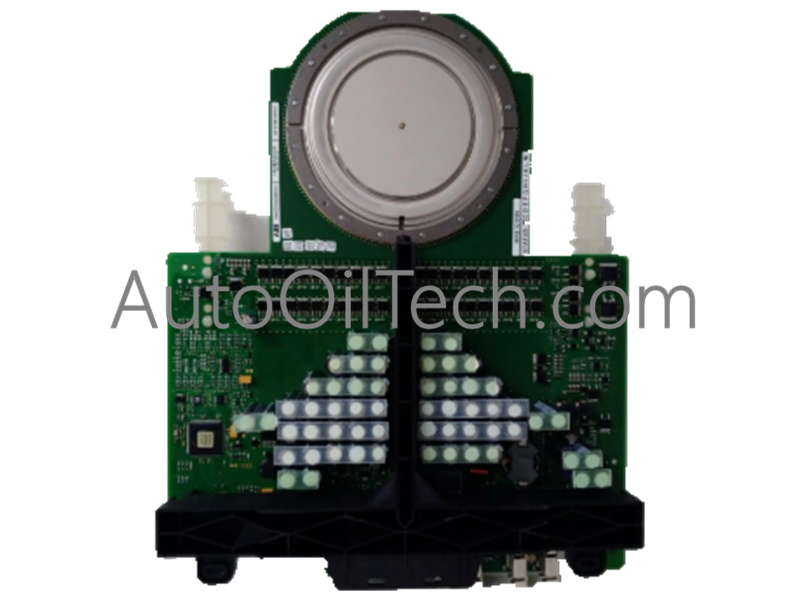

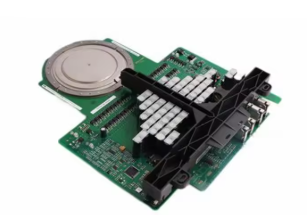

The ABB 5SHY3545L0006, also cataloged as the ABB 5SHY3545L0006 Asymmetric IGCT Module, operates as a dedicated hardware component for high-voltage and high-current switching execution within ACS 6000 Active Rectifier Units (ARU) networks.

Hardware Specifications

Firmware Flash Compatibility and I/O Density Scaling

This component functions as a Power Electronic Building Block (PEBB) executing one phase leg of AC-to-DC or DC-to-AC conversion. High-current execution demands synchronized firmware flash compatibility between the central ACS 6000 drive processor board and the integrated gate control unit. This timing harmony prevents gate turn-off propagation delays, allowing the module to maintain its rated 4000 A snubberless turn-off performance under high electromagnetic immunity constraints while scaling switching operations below 1 kHz.

Frequently Asked Questions

Q: What is the mechanical significance of the 40 kN mounting force specification?

A: The 40 kN clamping force is required to compress the internal press-pack silicon wafer interfaces. This precise physical force ensures low electrical contact resistance and optimized junction-to-case thermal dissipation paths. Lower clamping force causes local electrical arcing and immediate wafer failure.

Q: Can this module be applied in circuits with switching frequencies exceeding 1 kHz?

A: No. The internal thermal profiles and commutation characteristics of this asymmetric IGCT are optimized strictly for medium-frequency switching profiles below 1 kHz. Exceeding this boundary induces runaway thermal stress.

Q: Does this module require an external snubber circuit for turn-off protection?

A: No. The device architecture supports snubberless turn-off, meaning the integrated gate drive switches fast enough to absorb the full turn-off energy without the aid of external resistor-capacitor-diode (RCD) snubber networks.
