- ABB 5SHX1060H0003 3BHB020538R0001 Power Semiconductor Module
Sale

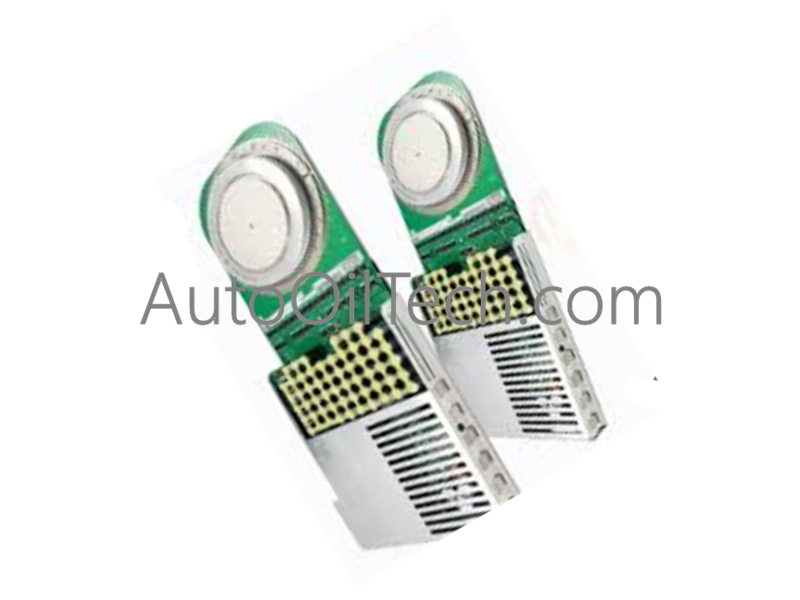

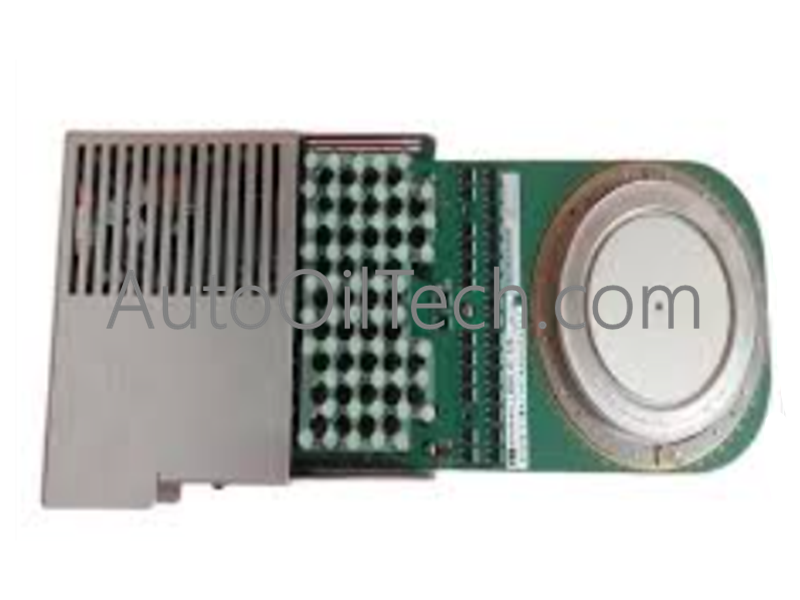

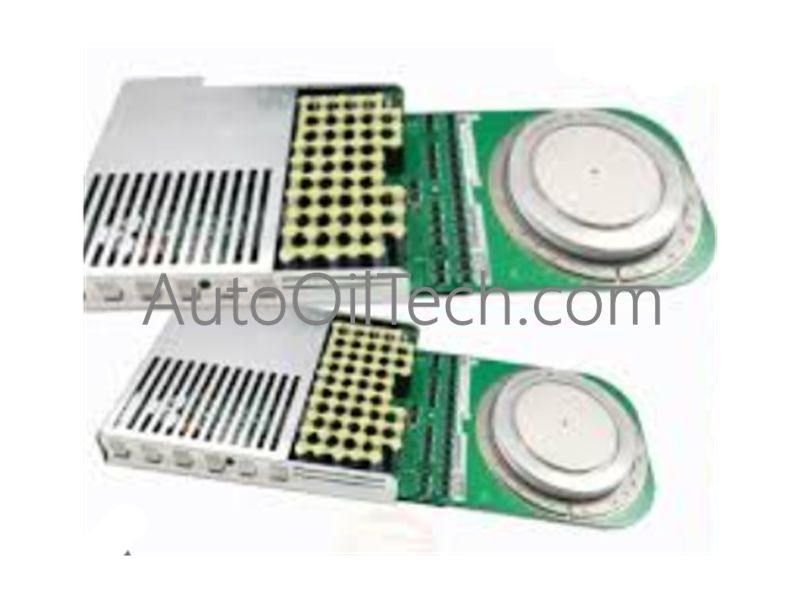

ABB 5SHX1060H0003 3BHB020538R0001 Power Semiconductor Module
No reviews
In stock!
- Part Number: 5SHX1060H0003 3BHB020538R0001
- Brand: ABB
- Type: Power Semiconductor Module
- Dimensions: 116x2.5x2cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
Configured for high-power switching execution in AC Drives networks, the ABB 5SHX1060H0003 (3BHB020538R0001 IGCT Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5SHX1060H0003 |
| Brand | ABB |
| Origin | Switzerland (CH) |
| Weight | 2.90 kg (Standard class mass) |
| Dimensions | Standard press-pack housing dimensioned for high-voltage industrial frames |
| Operating Temp | -40 to +125 deg C (Standard junction boundary limits) |
| Power Consumption | Regulated via integrated gate drive electrical distribution |
| Module Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Ordering Code | 3BHB020538R0001 |
| Commutation Type | Snubberless turn-off |
| Application Compatibility | HVDC transmission, large motor drives, medium-frequency converters |
Firmware Flash Compatibility and I/O Density Scaling
The device integration utilizes high-power density scaling to map gate switching commands directly to the core thyristor structure. To achieve synchronized execution in high-voltage DC (HVDC) and large motor drive topologies, the master control rack must operate on a specific firmware flash compatibility version. This software layer ensures the control interface triggers the gate unit with zero pulse-width distortion, providing deterministic timing paths necessary to maintain snubberless turn-off performance during continuous high-load switching below 1 kHz.
Frequently Asked Questions
Q: What makes the 3BHB020538R0001 module suitable for series connection in high-voltage lines?
A: The integrated gate-commutated thyristor technology ensures precise turn-off synchronization with minimal jitter. This simultaneous switching performance allows multiple modules to be arranged in a series configuration to scale up total voltage capacity while maintaining uniform voltage distribution across each device.
Q: Can this module operate safely without a standard resistor-capacitor-diode (RCD) snubber circuit?
A: Yes. The device features snubberless turn-off capability, meaning the integrated gate drive switches fast enough to transition from a conduction state to a blocking state without requiring external snubber networks to absorb turn-off energy.
Q: How do the physical characteristics of this unit mitigate electromagnetic interference (EMI)?
A: The module is engineered with a compact press-pack design that minimizes internal loop inductance. Combined with a high-immunity control interface, this structure prevents gate signal distortion and latch-up faults under extreme electrical transient (dv/dt and di/dt) conditions.
