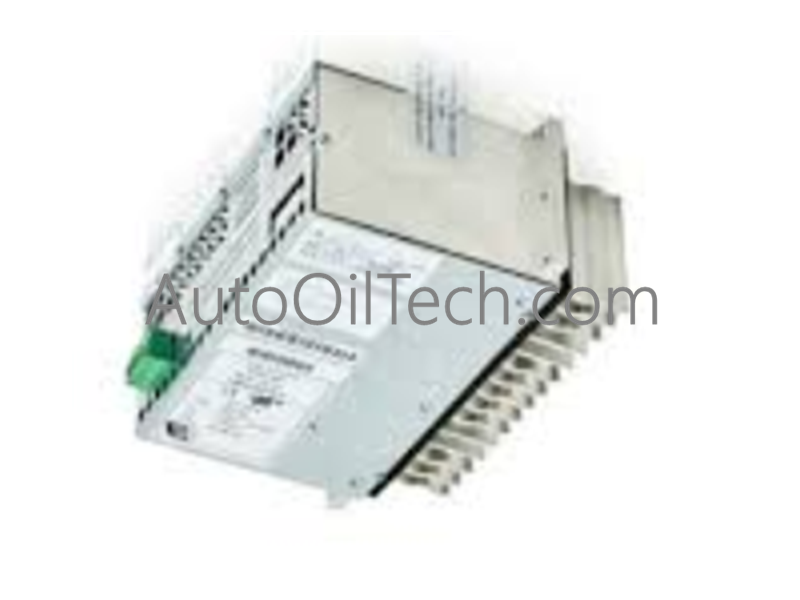

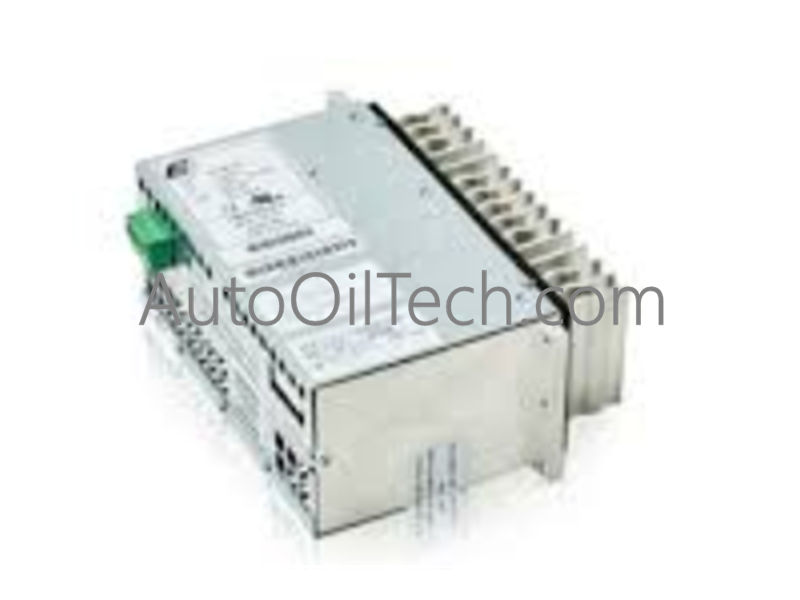

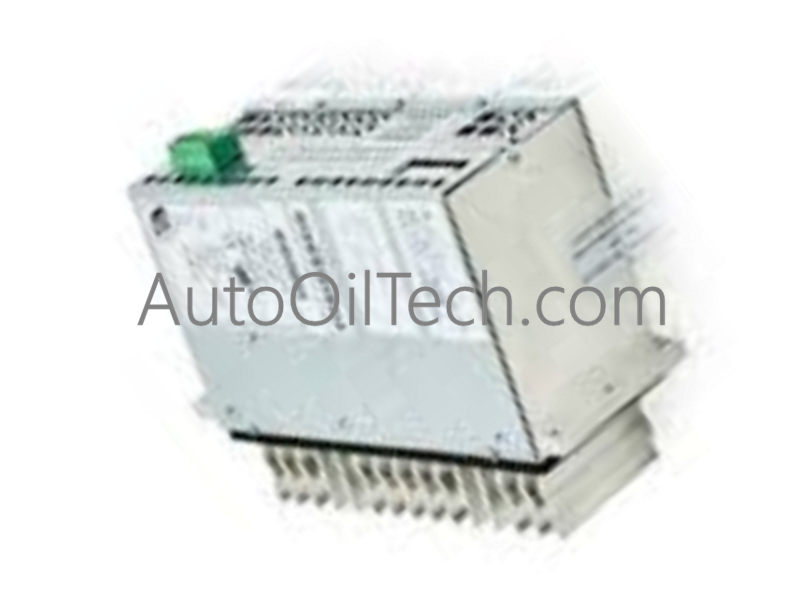

The ABB560PSR00 R0001(Product ID:1KGT026500R0001) is a high-efficiency subrack power supply module designed for the RTU560 remote terminal system. It converts wide-range 24–60 VDC inputs into stable, low-ripple 5 VDC and 24 VDC outputs. Supporting parallel redundancy, it ensures continuous runtime for critical substation automation and utility telemetry arrays.
Technical Specifications
Manufacturer: ABB
Model Designation:560PSR00 R0001
Product ID Code:1KGT026500R0001
Hardware Classification: Subrack Redundant Power Supply Unit (PSU)
System Series Compatibility: RTU560 Remote Terminal Unit Ecosystem
Operational Input Range: 24 to 60 V DC wide-tolerance window
Output Channel One: 5 V DC stabilized regulated voltage at 5.5 A max load
Output Channel Two: 24 V DC stabilized regulated voltage at 0.7 A max load
Total Combined Wattage: 44.3 W total continuous power rating
Thermal Conversion Efficiency: Approximately 85% energy utilization index
Output Residual Ripple: Less than or equal to 30 mV (5 VDC loop), less than or equal to 80 mV (24 VDC loop)
Availability Architecture: Parallel active redundancy configuration capability
Mechanical Mounting Layout: Plug-in chassis module for standard RTU560 subrack channels
Physical Housing Footprint: 257 mm x 138 mm x 175 mm
Net Hardware Weight: Approximately 0.5 kg (1.10 lbs) without outer shipping container
Industrial Application Scenarios
Substation Automation Telemetry: Supplies continuous operational voltages to main processor and communication links within electrical grid distribution nodes.
Smart Grid Monitoring: Powers analog and digital input boards inside remote RTU cabinets to log high-speed switchgear status information.
Renewable Plant Substations: Deploys inside utility interface panels of wind farms and solar arrays to sustain data links with the master control room.
Pipeline Infrastructure Automation: Drives distributed telemetry hardware blocks along oil and gas distribution channels to ensure continuous pressure measurement updates.
