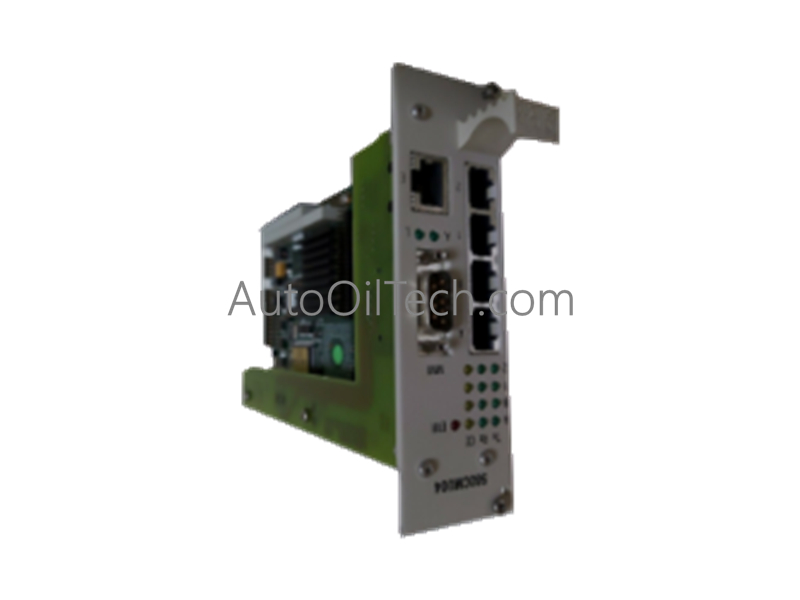

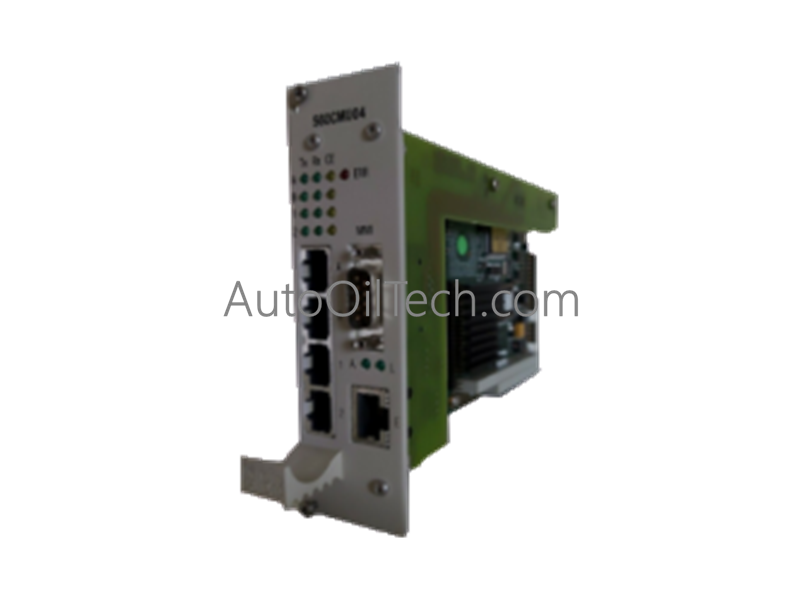

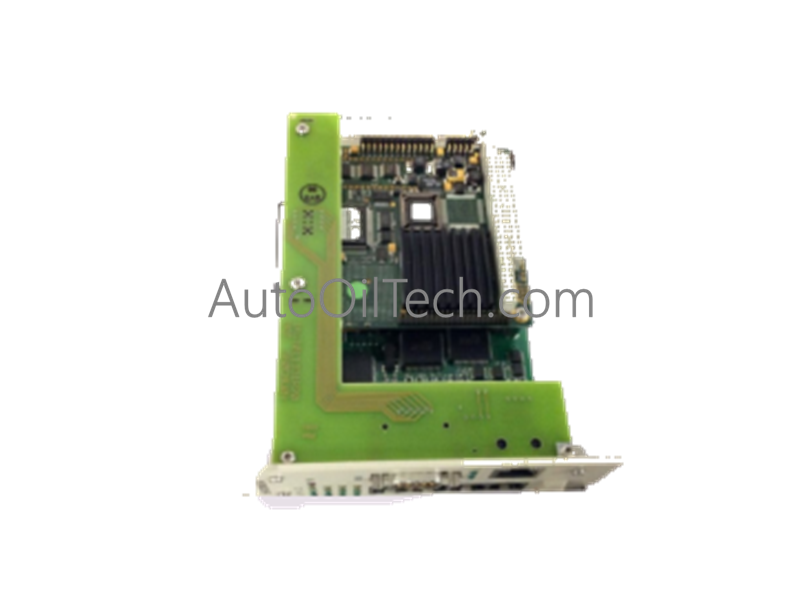

Configured for field data processing and protocol management in RTU560 networks, the ABB 560CMU04 (560CMU04 Central Module Unit) provides direct physical/electrical execution.
Regulated via internal subrack backplane distribution
Processor
32-bit industrial-grade CPU
Memory Architecture
High-capacity RAM and flash storage
Ethernet Interfaces
2 x 10/100BaseT ports
Serial Interfaces
4 x RS-232 / RS-485 ports
Storage Temperature
-40 to +85 deg C
Security Protocols
Integrated encryption and authentication
Firmware Flash Compatibility and I/O Density Scaling
The central module unit processes real-time data aggregation by scaling I/O density points across the subrack backplane bus. To ensure deterministic execution of concurrent network topologies and prevent packet collision faults, the master processor must be configured with a validated firmware flash compatibility baseline. This software alignment coordinates the subrack hardware profile, allowing the 32-bit industrial CPU to arbitrate multi-protocol serial and Ethernet communications simultaneously without introducing latency or configuration mismatch errors during heavy SCADA polling loops.
Frequently Asked Questions
Q: Can the 560CMU04 handle multiple communication protocols simultaneously?
A: Yes. The hardware architecture contains dedicated controller pathways that allow the simultaneous execution of Ethernet-based protocols alongside legacy serial communication lines (RS-232 and RS-485) without cross-talk or processing delays.
Q: Is this central module unit hot-swappable within an active RTU560 subrack?
A: No. Removing or inserting the central processor while the backplane bus is energized will disrupt active data streams and risks corrupting runtime flash memory sectors. System power must be isolated before component exchange.
Q: How does the module maintain data security across distributed networks?
A: The module executes integrated encryption and authentication algorithms at the firmware level. This ensures that remote monitoring, configuration changes, and SCADA data packets are validated before execution, preventing unauthorized instruction injection.
