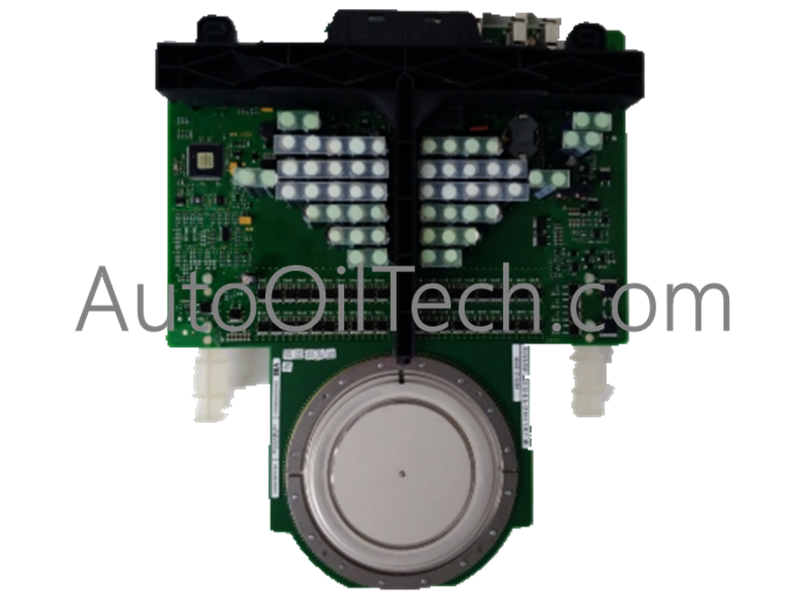

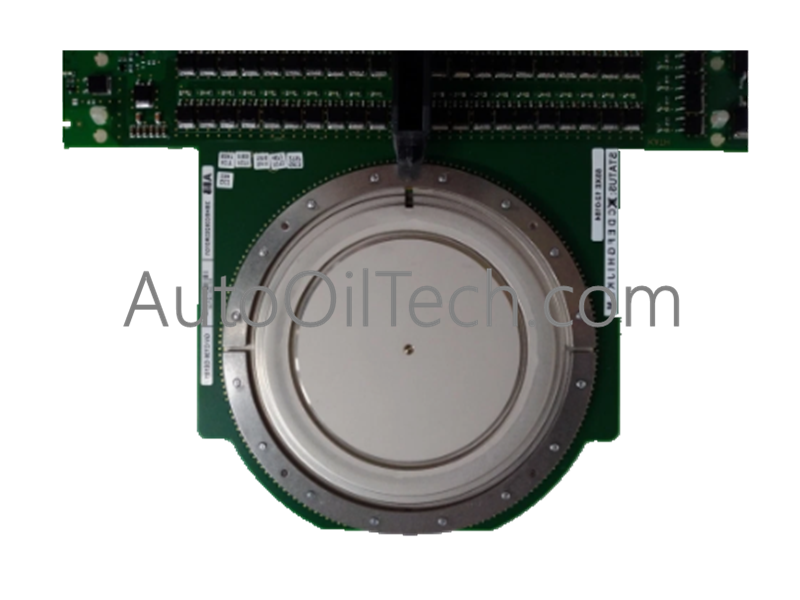

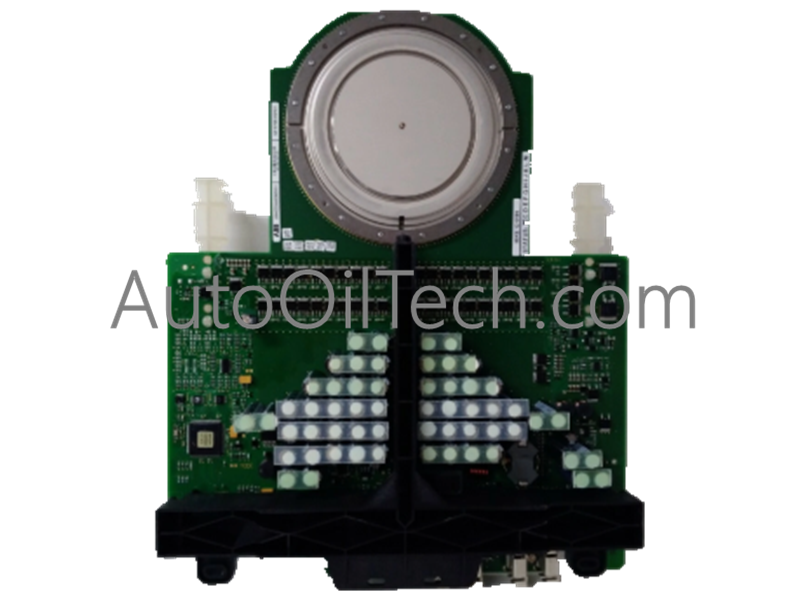

The ABB3BHE014105R0001is a high-power Integrated Gate Commutated Thyristor (IGCT) module assembly composed of the core5SHY3545L0020thyristor and5SXE05-0154control electronics. Engineered for massive industrial converter applications, it switches up to 4500V and 3545A. It delivers highly efficient power conversion with minimal loss across harsh thermal conditions.
Technical Specifications
Manufacturer: ABB
System Assembly Number:3BHE014105R0001
Thyristor Element Part Number:5SHY3545L0020
Integrated Gate Unit Part Number:5SXE05-0154
Hardware Classification: Integrated Gate Commutated Thyristor (IGCT) Power Semiconductor Module
Peak Repetitive Off-State Voltage: 4500 V high-voltage capability
Maximum Continuous Operating Current: 3545 A high-current capability
Dynamic Switching Profile: High-frequency switching optimization for minimized turn-off energy losses
Thermal Dissipation Architecture: Dual-compatibility chassis supporting forced-air or liquid-cooled chillers
Operational Junction Temperature Window: -40°C to +125°C extreme thermal range
Physical Housing Footprint: 125 mm x 100 mm x 60 mm
Net Unit Component Weight: 1.5 kg (3.31 lbs) without outer packaging
Industrial Application Scenarios
Medium-Voltage AC Drives: Acts as the primary solid-state inverter switching block inside massive multi-megawatt motor drives driving industrial gas compressors and water pumps.
Static Synchronous Compensators (STATCOM): Operates within utility-scale power grid stabilization systems to inject reactive power dynamically and control voltage sags.
Marine Propulsion Converters: Deploys inside the main variable-frequency propulsion drives of large cargo ships and cruise liners to handle heavy, rapid propeller speed adjustments.
Co-Generation Wind Inverters: Integrates into the main power conversion stack of large-scale offshore wind turbine networks to harmonize raw generated energy before grid injection.
