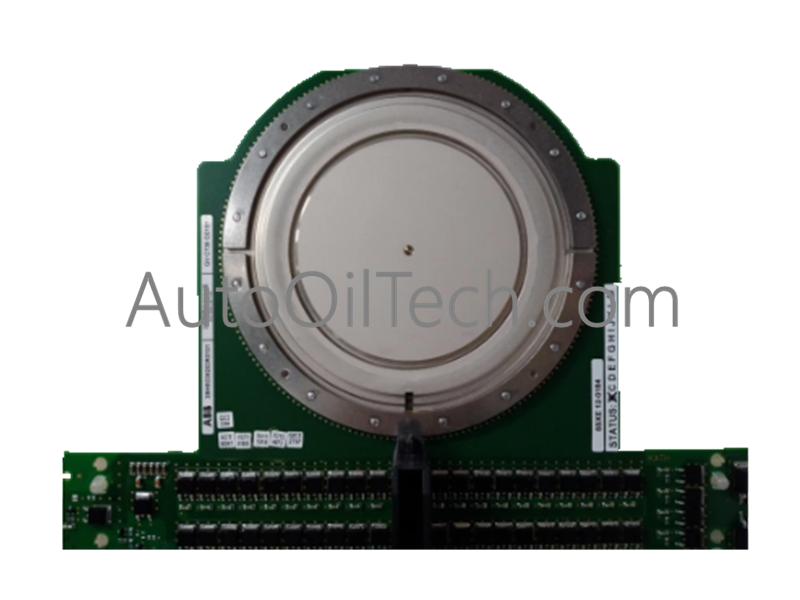

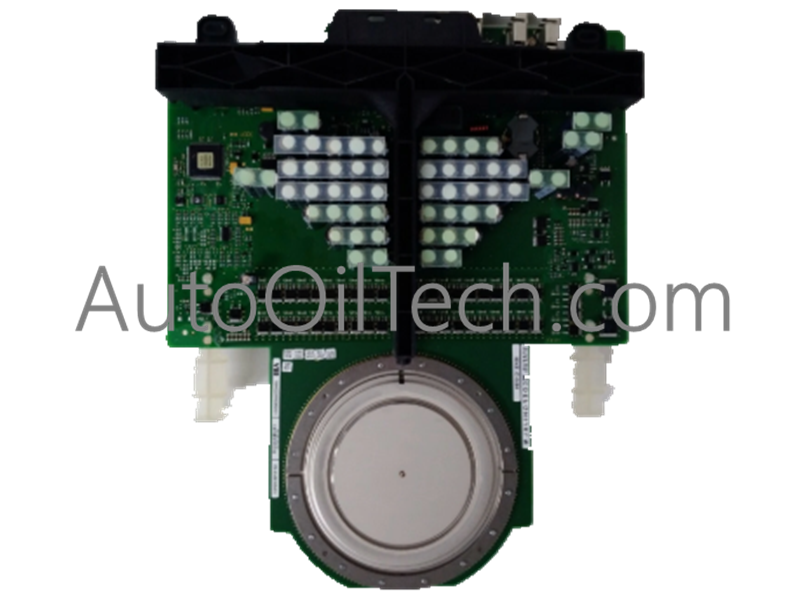

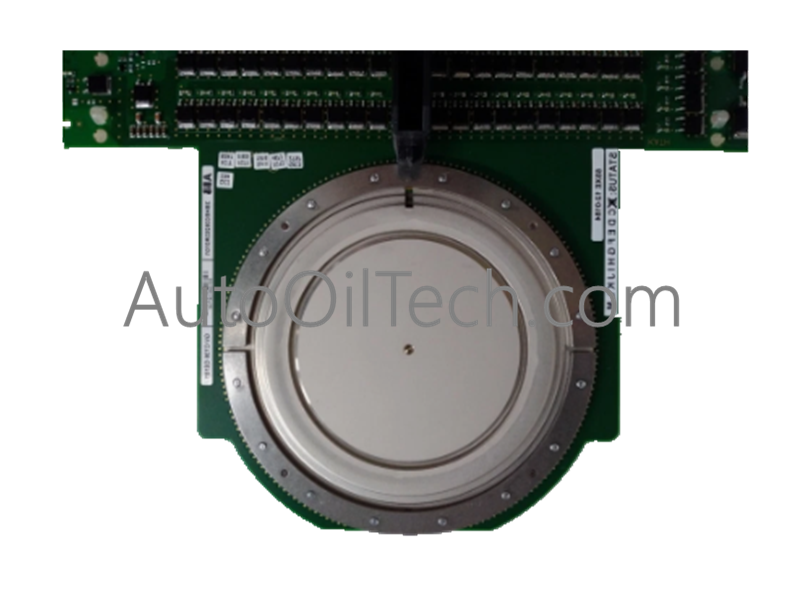

ABB 3BHE009681R0101 3BHB013088R0001 5SHY3545L0010 Semiconductor

Product Overview

The ABB 3BHE009681R0101 (comprising 3BHB013088R0001 and 5SHY3545L0010) is a heavy-duty Integrated Gate-Commutated Thyristor (IGCT) module designed for high-capacity industrial power systems. With a massive nominal current rating of 3500A and a voltage capacity of 4500V, this module is a core component for utility-scale energy management, including HVDC transmission and large-scale Variable Frequency Drives (VFDs).

Technical Specifications

• Manufacturer: ABB

• System Part Number: 3BHE009681R0101

• Assembly ID: 3BHB013088R0001

• Semiconductor Code: 5SHY3545L0010

• Nominal Voltage ($V_{DRM}$): 4500 V

• Nominal Current ($I_T$): 3500 A

• Peak Gate Current (Turn-On/Off): 1000 A

• Switching Speed (On/Off): 1.5 μs

• On-State Voltage Drop: 2.5 V

• Junction Temperature ($T_j$): Up to 125°C

• Weight: 1.5 kg

• Dimensions: 320mm x 200mm x 150mm

Key Features

• Massive Current Handling: Rated for 3500A, making it one of the more powerful modules in the IGCT lineup for high-demand industrial sectors.

• Rapid Switching Response: Offers a fast 1.5 μs turn-on and turn-off time, enabling precise high-frequency control in complex power converters.

• Integrated Drive Architecture: The onboard gate unit handles the 1000A peak gate current pulses internally, simplifying the external control requirements.

• Low Energy Dissipation: A low 2.5V on-state voltage drop minimizes thermal waste, increasing overall system efficiency.

• High-Voltage Stability: Designed to operate reliably at 4500V, providing the necessary overhead for medium-voltage grid applications.
