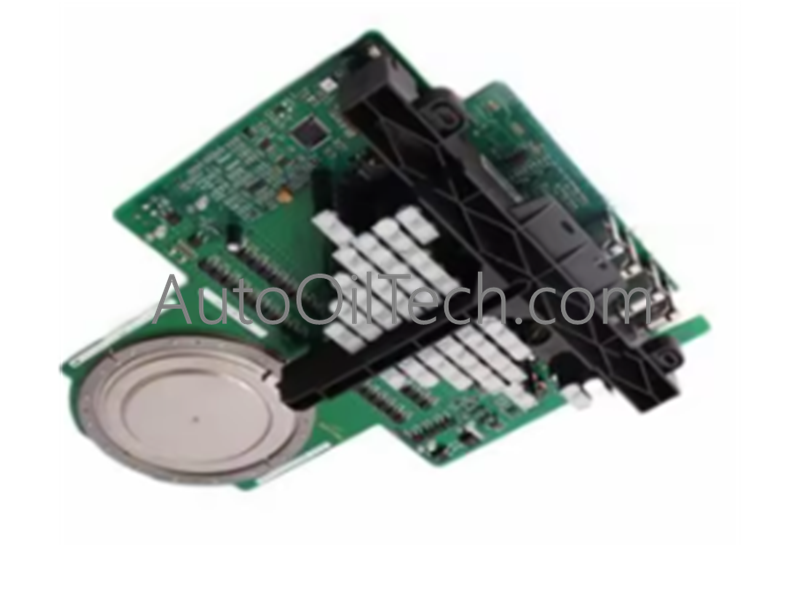

ABB 3BHE009681R0101 3BHB01296R0001 5SHX2645L0002 IGCT Modules

Configured for high-power switching execution in AC Drives networks, the ABB 3BHE009681R0101 (3BHB01296R0001 5SHX2645L0002 IGCT Module) provides direct physical/electrical execution.

Hardware Specifications

Firmware Flash Compatibility and I/O Density Scaling

The device integration utilizes high-power density scaling to map gate switching commands directly to the core thyristor structure. To achieve synchronized execution in medium- and high-power drive topologies, the master control rack must operate on a specific firmware flash compatibility version. This software layer ensures the control interface triggers the gate unit with zero pulse-width distortion, providing deterministic timing paths necessary to maintain stable switching speeds during rapid, dynamic load variations up to 4500 V.

Frequently Asked Questions

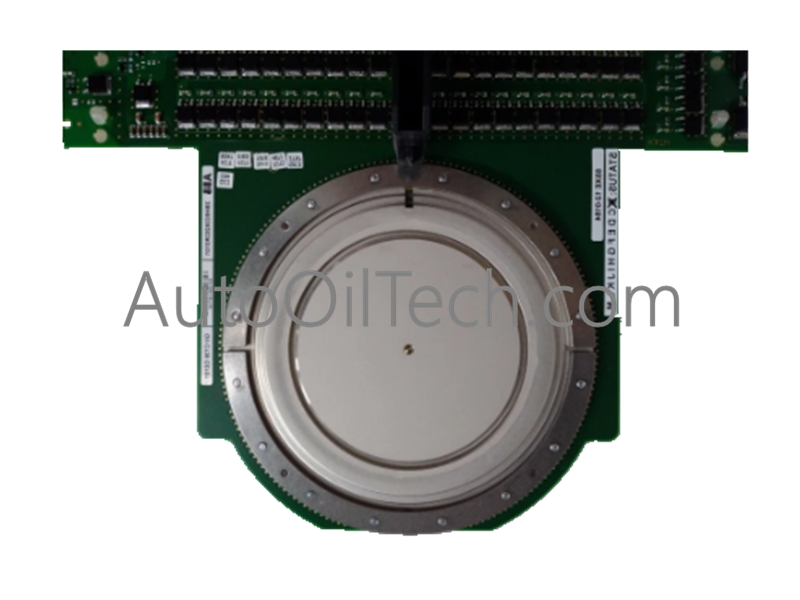

Q: What are the physical constraints of the press-pack housing dimensioned at 120 mm?

A: The 120 x 120 mm surface profile dictates the matching heatsink footprint. Precise alignment within the drive frame mechanical clamp is required to ensure uniform pressure across the internal silicon wafer, minimizing contact resistance and maintaining the thermal path.

Q: Can this module operate in environments that exceed the +105 deg C limit?

A: No. The internal junction boundaries are rated for a maximum continuous operating temperature of +105 deg C. Operating beyond this limit will result in immediate thermal breakdown of the semiconductor layer and loss of voltage blocking capabilities.

Q: How does the 5SHX2645L0002 handle rapid changes in load current?

A: The integrated gate unit provides fast switching speeds that permit dynamic current regulation between 2200 A and 2645 A. The fast turn-off and turn-on transitions minimize transient energy losses, preventing localized overheating under cyclic stress.
