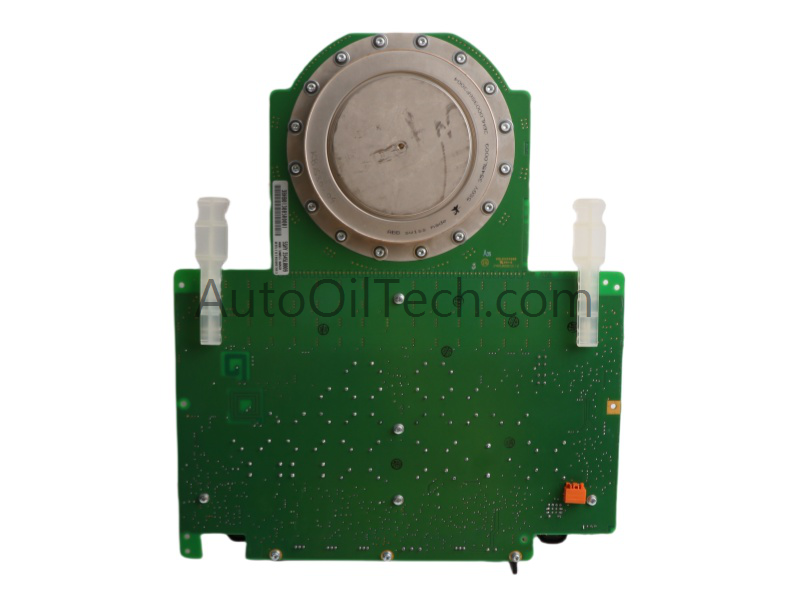

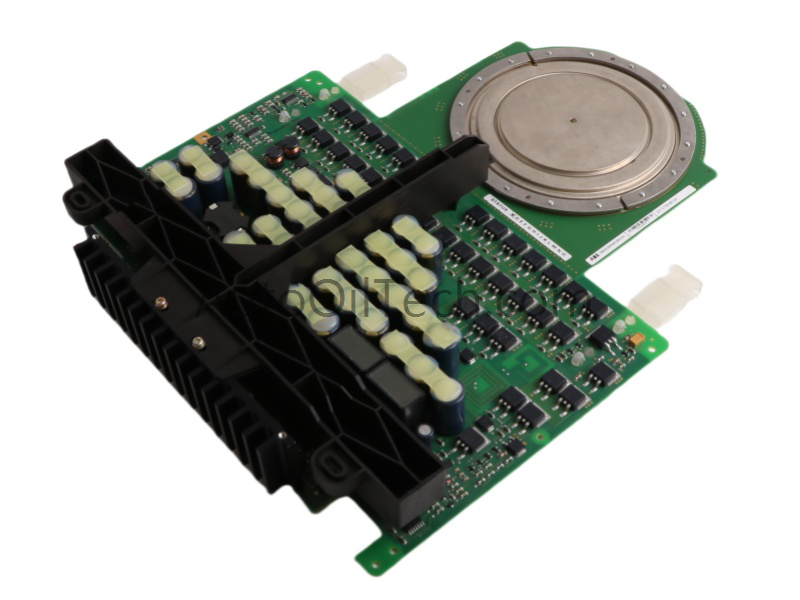

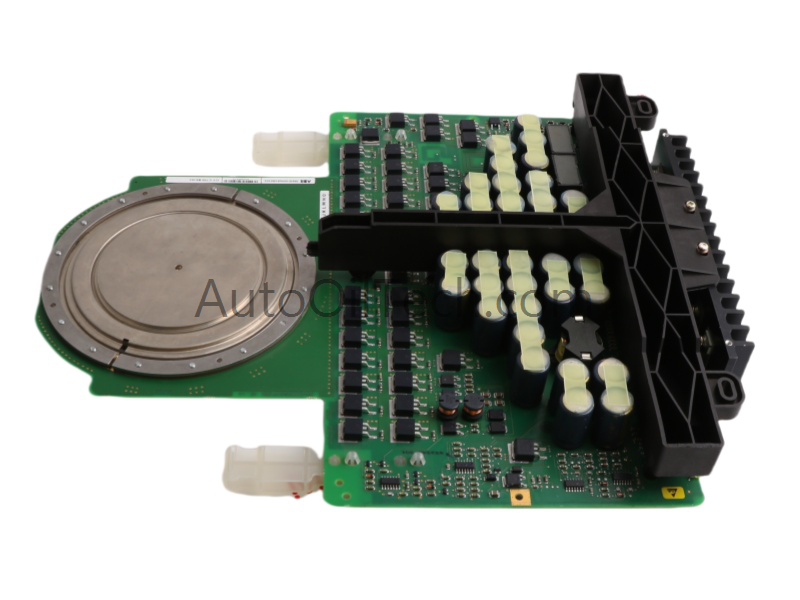

The ABB 3BHB013088R0001 5SHY3545L0010 IGCT Module is a high‑performance integrated gate‑commutated thyristor designed for demanding industrial power applications. With exceptional voltage and current ratings, it ensures efficient and reliable operation in HVDC transmission, VFDs, SVCs, and soft‑start systems.
Technical Specifications
Parameter
Value
Model Number
3BHB013088R0001 5SHY3545L0010
Manufacturer
ABB
Module Type
IGCT Module
System Compatibility
DCS / Advant OCS / 800xA
Nominal Voltage
4500 V
Current Rating
3500 A
Switching Speed
1.5 µs (turn‑on/off)
On‑State Voltage Drop
2.5 V
Off‑State Leakage
10 mA
Peak Surge Current
30 kA (1 ms)
Critical di/dt
1000 A/µs
Gate Trigger Voltage
1.5–2.5 V
Peak Gate Current
50 A
Junction Temperature
Max 125°C
Isolation
Integrated gate driver
Dimensions
35 × 29 × 6 cm
Weight
2.66 kg
HS Code
8537101190
Product Origin
Sweden
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Functional Description
The ABB 3BHB013088R0001 5SHY3545L0010 IGCT Module combines high power density with fast switching capability. Its integrated gate driver simplifies system design while ensuring precise control. With low switching losses, high surge current tolerance, and robust thermal stability, it is optimized for medium‑voltage drives, FACTS systems, and industrial power electronics.
Applications and Compatibility
The ABB 3BHB013088R0001 5SHY3545L0010 is widely used in HVDC transmission, renewable energy, heavy manufacturing, and advanced power conversion systems. Engineers rely on its efficiency, reliability, and compact design to reduce system complexity while maintaining long‑term stability in critical industrial environments.
