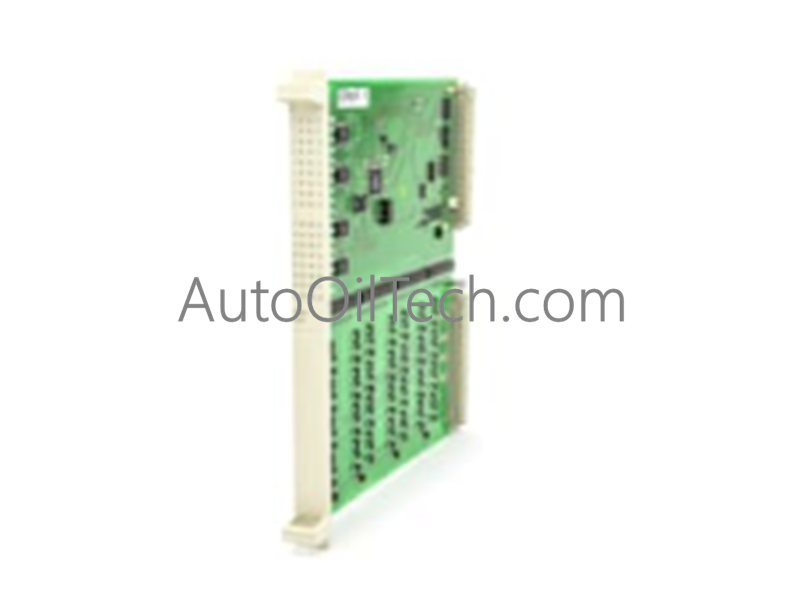

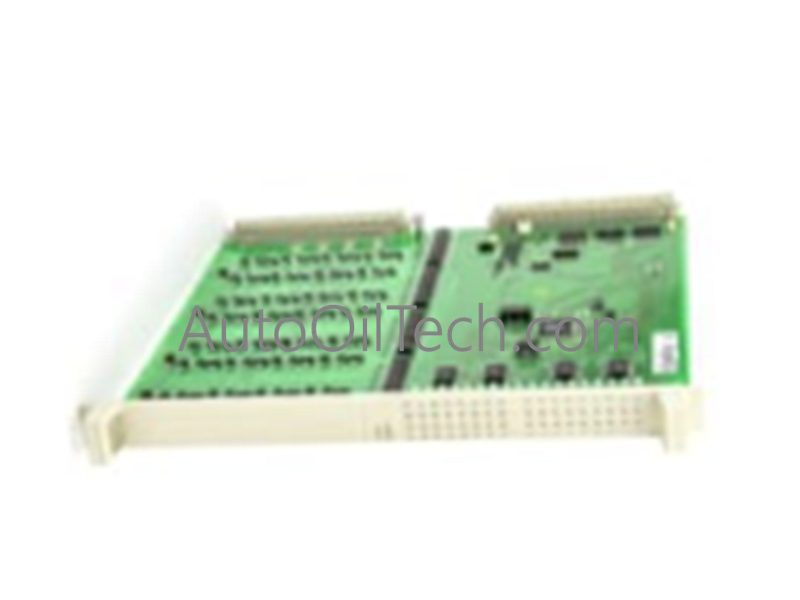

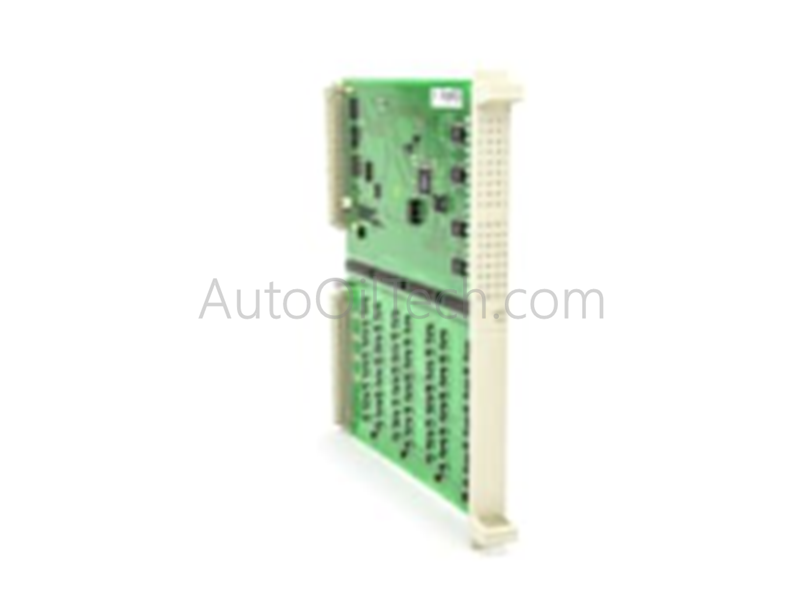

The ABB 216GW62 (HESG324008) operates as a high-integrity distributed input transformer assembly engineered exclusively for REG 216 numerical generator protection systems. This heavy-duty interface module conditions raw field CT/PT analog signals while delivering comprehensive galvanic isolation.
Technical Specifications
Brand: ABB
Model Designation: 216GW62
Part Reference: HESG324008
Product Classification: Input Transformer Unit / Analog Signal Conditioning Block
Primary Utility: Steps down signal levels and isolates field CT/PT instrumentation from sensitive relay logic
Enclosure Protection Profile: Conforms to DIN Protection Class IP30 requirements against solid objects
Measurement Accuracy: Configured for fine-tolerance current and voltage transformation during differential protection monitoring
Galvanic Isolation Barrier: Heavy-duty electromagnetic isolation between main power circuits and electronic nodes
International Tariff Coding: HS Code 85389099
Width: 280 mm
Height: 180 mm
Depth: 81 mm
Net Weight: Ranges from 2.00 kg to 3.25 kg based on internal winding configuration
Industrial Application Scenarios
This mechanical transformer module mounts securely inside power plant switchgear cabinets to process raw phase-current and terminal-voltage metrics from giant turbogenerators, reducing incoming energy curves to standard electronic relay logic parameters while preventing destructive earth faults from migrating into the central processor bus.
