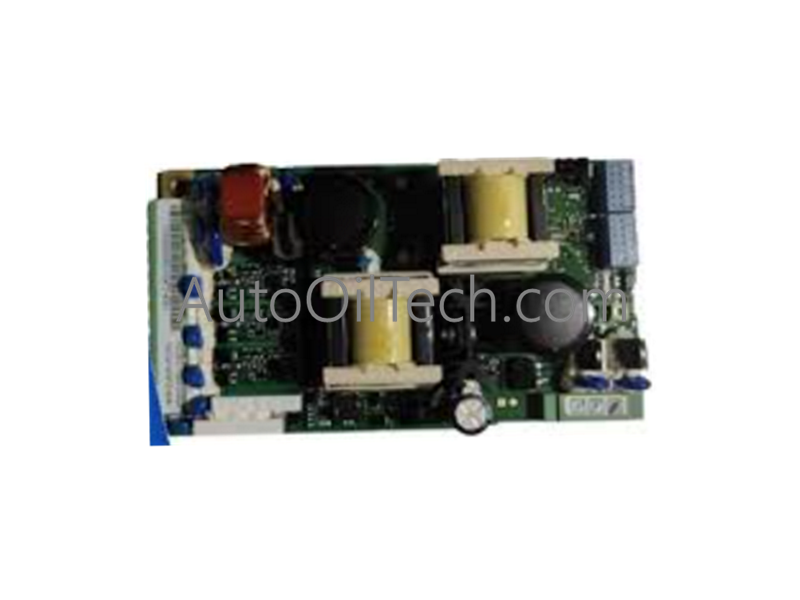

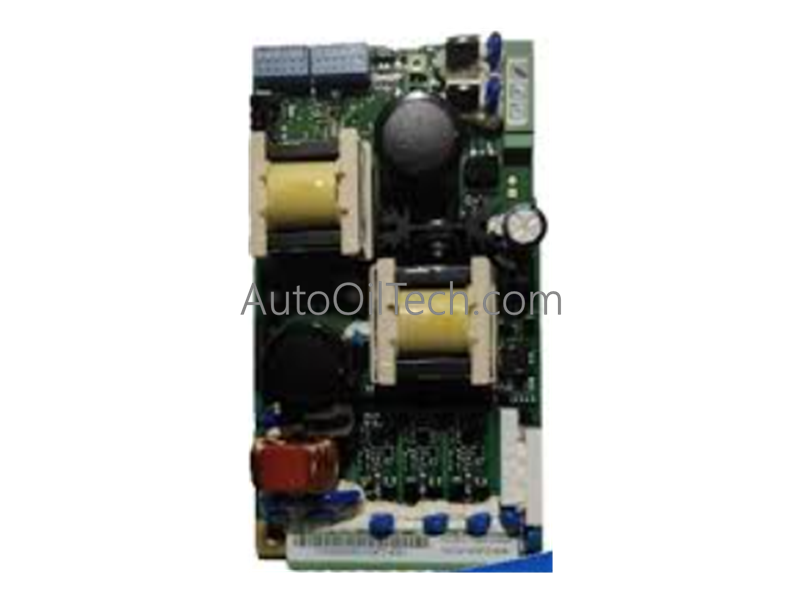

ABB 1VCR017053G0001 Vacuum Contactor Power Board

The ABB 1VCR017053G0001, also cataloged as the 1VCR017053G0001 Power Supply / Control Board, operates as a dedicated hardware component for localized charging control and coil power distribution within VSC series medium-voltage vacuum contactor frameworks.

Hardware Specifications

Backplane Bus Control and Power Distribution

The board integrates directly into the mechanical housing of medium-voltage contactor assemblies, providing the pulsed energy profiles required to actuate and release the internal vacuum interrupter contacts. It connects physically to the main drive assembly via standard multi-pin headers, monitoring logic states without adding processing latencies to the external control loop. While operating within modular node configurations, its internal charging circuits interact with host automation backplanes to adjust current delivery to the opening and closing coils based on local real-time I/O density scaling requirements. Firmware flash compatibility across matching VSC controller steps ensures precise coordination of timing arrays, preventing physical contact bounce across deterministic grid switching points.

Frequently Asked Questions

Q: What is the main functional role of the 1VCR017053G0001 board inside the VSC contactor?

A: The board functions as the internal power supply and electronic control interface for the vacuum contactor. It regulates the electrical energy fed into the magnetic actuator system, ensuring that the vacuum bottles open and close with optimal force and timing characteristics.

Q: Is this control board rated for direct installation in high-humidity or offshore marine environments?

A: The board can be ordered with an optional DNV-certified conformal coating that protects the SMT components and raw PCB traces against moisture, salt spray, and atmospheric contaminants common to marine and offshore installations.
