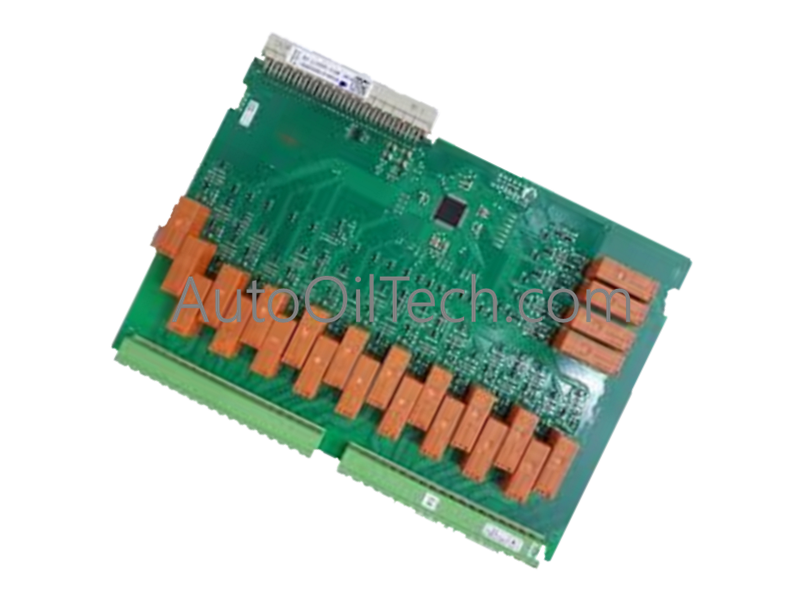

The ABB 1MRK000614-ABr09, also cataloged as the 1MRK000614-AB Binary Output Module, operates as a dedicated hardware component for localized digital state control and continuous external actuator validation within ABB protection and industrial automation platforms.
Hardware Specifications
Parameter
Specification
Model
1MRK000614-ABr09 / 1MRK000614-AB
Brand
ABB
Origin
Factory Standard Global Site
Weight
0.36 kg
Dimensions
74 mm x 370 mm x 361 mm
Operating Temp
-20 to +60 deg C
Storage Temp
-40 to +85 deg C
Humidity Range
5% to 95%, non-condensing
Power Supply Input Range
20.4 V - 28.8 V DC (24 V DC Nominal)
Channel Density
8 Binary Outputs
Output Switching Topology
Digital, relay contacts
Current Rating per Output
0.5 A maximum per channel
Response Time (Switching)
<= 5 ms
Enclosure Protection Rating
IP20
Mounting Configurations
DIN rail or Panel mountable internal subrack housing
Industrial Control and Drives (PLC/DCS/Drives) Attributes
The 1MRK000614-ABr09 manages high-speed edge transitions and continuous switching loop validation directly across the secondary automation backplane interface. To drive external pilot relays, trip coils, and interlock actuators concurrently without signal attenuation or thermal accumulation, the internal circuitry utilizes 8 independent, electromagnetically shielded relay channels. Each output point alters field states within a <= 5 ms response window, ensuring backplane bus communication velocity Licences profiles remain fully synchronized with real-time system execution codes.
Because this digital command module operates inside high-voltage substations and heavy machinery control panels, its physical mapping supports modular I/O density scaling options across the system rack layout. The module firmware maintains absolute firmware flash compatibility with host automation nodes, preventing register fragmentation during rapid duty cycles. This configuration allows output states to map cleanly across Profinet / EtherNet/IP deterministic networks without inducing inductive back-EMF feedback noise or causing backplane communication timeouts under maximum load conditions.
