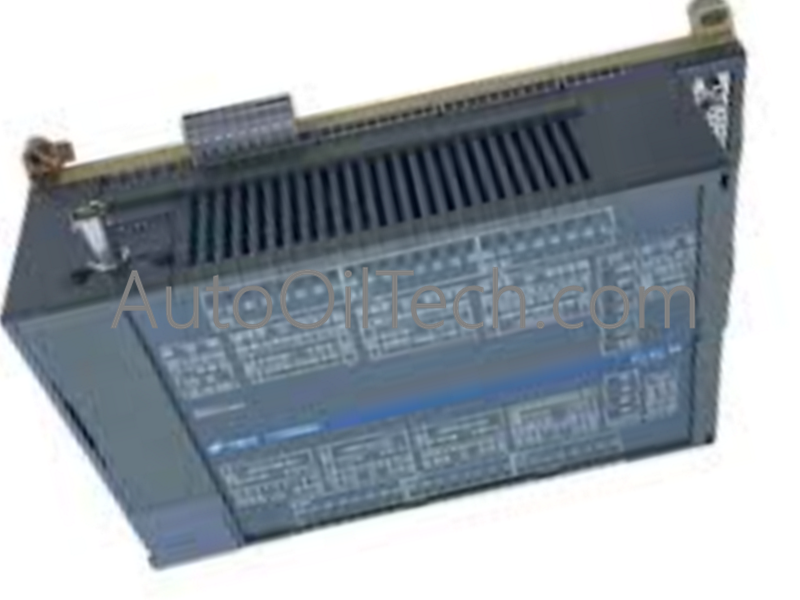

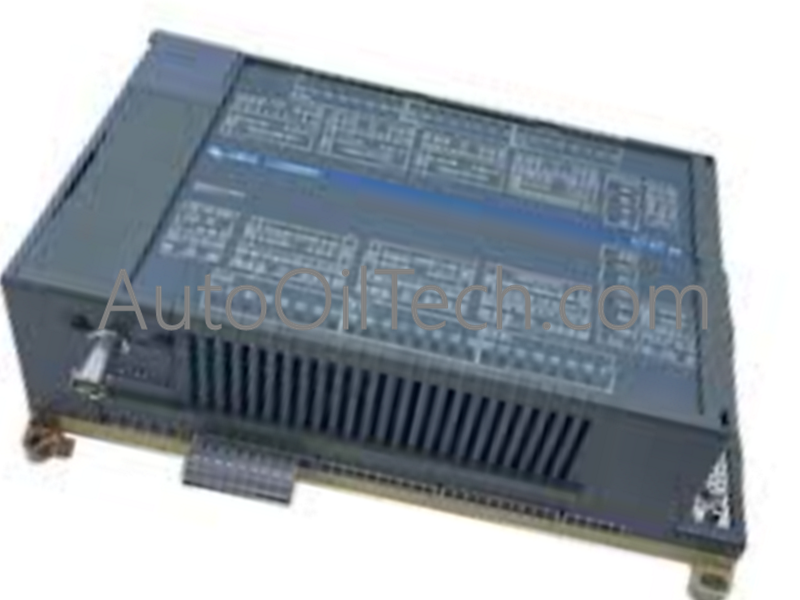

ABB 07KT98C GJR5253100R3260 Advant Controller

Product Overview

The ABB 07KT98C, identified by part number GJR5253100R3260, is a fundamental central unit in the Advant Controller 31 architecture. Unlike a simple I/O module, the 07KT98C acts as a decentralized automation unit that processes logic while providing integrated I/O capabilities. It is designed to act as a standalone controller or as a distributed node in a larger automation network. It is highly valued in legacy industrial systems for its "all-in-one" approach, combining processing power with digital and analog connectivity.

Key Specifications

• Model Designation: 07KT98C

• Product ID: GJR5253100R3260

• Product Line: Advant Controller 31 (AC31)

• Function: Basic Unit / PLC Central Processor

• Dimensions: 25.4 cm x 10.2 cm x 15.2 cm (10.0" x 4.0" x 6.0")

• Net Weight: 0.9 kg (1 lb 16.0 oz)

• Mounting: DIN Rail or screw mounting

Key Features

• Integrated Processing Logic: Capable of executing complex control programs, making it more than just an interface module—it is the brain of the local automation cell.

• Built-in I/O Interface: Features a generous count of onboard digital and analog inputs/outputs, reducing the need for additional expansion modules in small-to-medium tasks.

• High-Speed Communication: Supports CS31 system bus protocols, allowing it to communicate with other AC31 modules and higher-level controllers with minimal latency.

• Onboard Diagnostics: The integrated 7-segment display provides real-time fault codes, allowing maintenance teams to troubleshoot without needing a laptop.

• Non-Volatile Memory: Ensures that user programs and critical process data are preserved even in the event of a total power loss.
