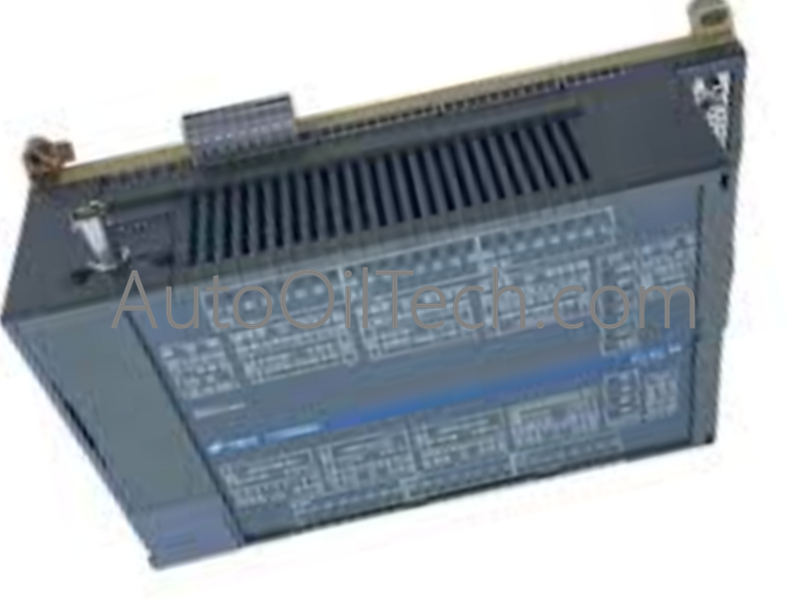

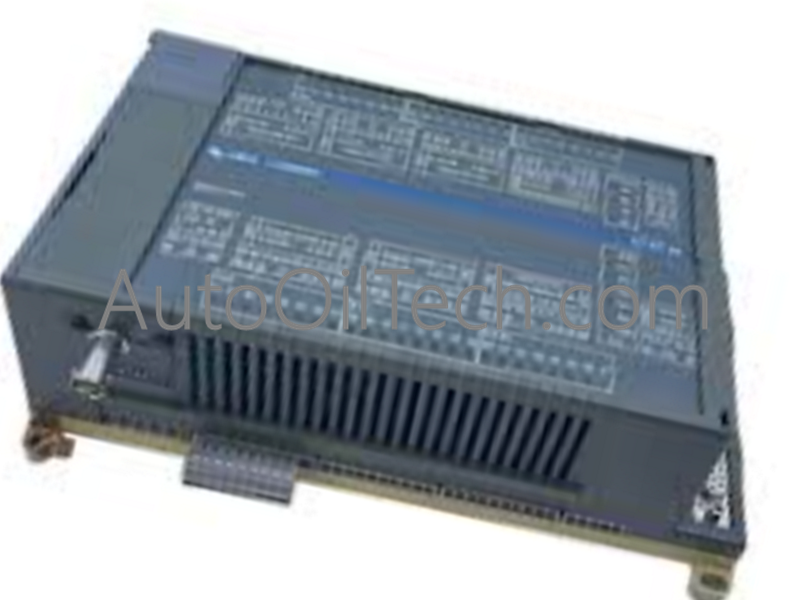

ABB 07KT98 GJR5253100R0160 CPU Module

Product Overview

The ABB 07KT98 (GJR5253100R0160) is a powerhouse Basic Unit within the Advant Controller 31 (AC31) and Advant OCS product lines. Designed for the high-end tier of the AC31 family, the "G" variant represents a high-performance CPU capable of managing large-scale I/O networks and complex communication protocols simultaneously.

Technical Specifications

• Model Number: 07KT98

• Part Number (GJR): GJR5253100R0160

• Dimensions: 15.2 cm x 10.2 cm x 25.4 cm (6.0" x 4.0" x 10.0")

• Net Weight: 1.4 kg (3 lbs)

• Onboard I/O Capacity: Supports expansion up to 1,040 Digital I/Os and nearly 450 Analog I/Os.

• Processor Performance: High-speed execution with 50 kHz hardware counters for precision tracking.

Communication & Interfacing

The 07 KT 98 G is distinguished by its wide array of networking options:

• Ethernet TCP/IP: For seamless integration into modern factory intranets and remote monitoring.

• CANopen Master: Allows the unit to control an extensive range of third-party motion drives and smart sensors.

• CS31-Bus: ABB's legacy fieldbus for reliable connection to distributed I/O modules.

• Arcnet: High-speed deterministic networking for mission-critical synchronization.

• RS232: Dedicated port for local programming (using 907 AC 1131 software) and Modbus RTU communication.
