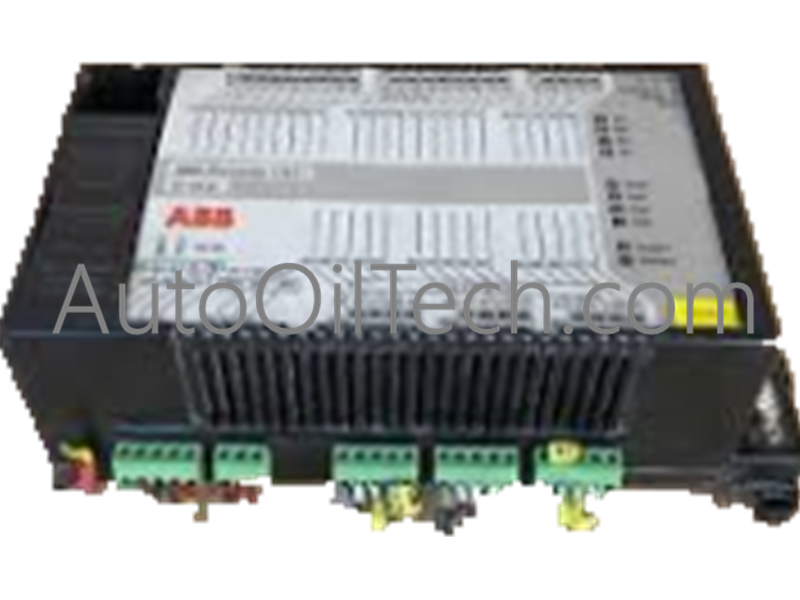

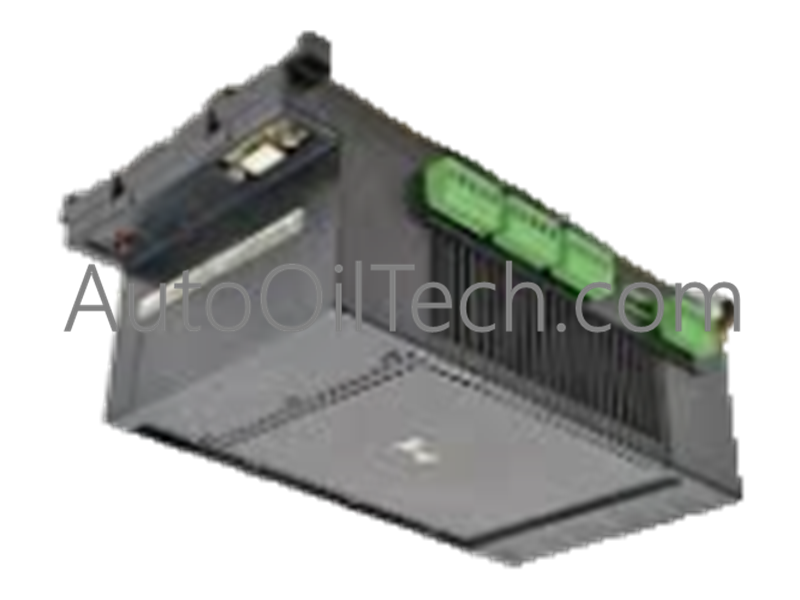

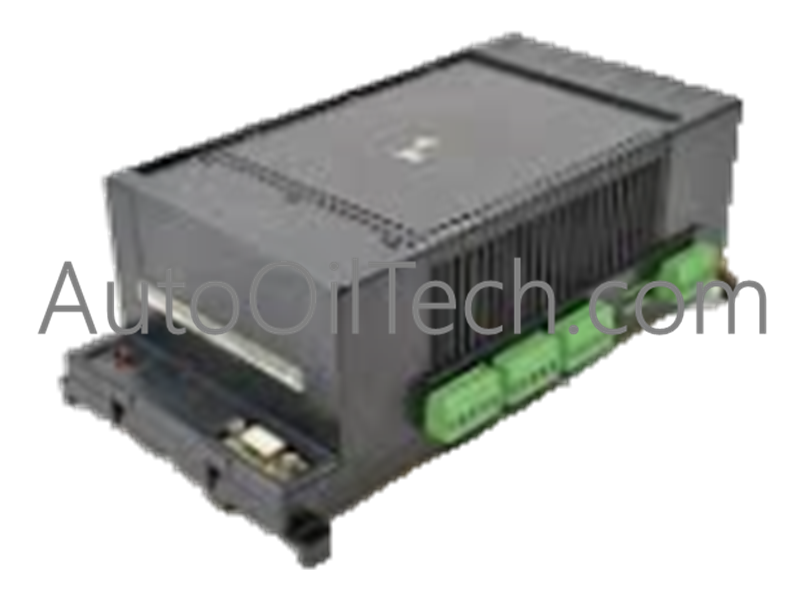

ABB 07KR91 Processor Module

Product Overview

The ABB 07KR91 (Part Number: GJR5250000R0101 / SKU: IN27597) is a high-performance Central Processor Module from the esteemed Advant Controller 31 (AC31) series. Designed for intelligent decentralized automation, this "all-in-one" controller combines a processing unit, high-voltage power supply, and integrated I/O in a single compact package.

Technical Specifications

• Model: 07KR91 (Original)

• Manufacturer: ABB PLC

• Power Supply: 115/230 V AC (Wide range voltage support)

• Integrated I/O:

• 20 Digital Inputs (24V DC)

• 12 Digital Outputs (Relay, 2A)

• Processor Memory: 28 kB (User program storage)

• Counter Frequency: Up to 10 kHz (High-speed input)

• Communication: CS31 System Bus Interface & COM1 (RS-232)

• Dimensions: Approximately 110mm x 150mm x 70mm

• Net Weight: 0.5 kg

• Condition: 100% New

Key Features

• Versatile AC Powering: The built-in 115/230 VAC power supply unit eliminates the need for an external DC transformer, simplifying the overall electrical cabinet design.

• Robust Relay Outputs: Features 12 relay outputs capable of switching up to 2A, allowing for direct control of contactors, solenoids, or small motors.

• CS31 Bus Expansion: Supports the CS31 system bus protocol, enabling the processor to master up to 31 remote I/O modules for decentralized automation architectures.

• Integrated Programming Interface: The COM1 port serves a dual purpose as both a programming interface (via 907 AC 1131 software) and an ASCII interface for HMI or printer connectivity.

• Self-Diagnostics: Constant monitoring of internal hardware and bus status with visual LED feedback for rapid troubleshooting.
