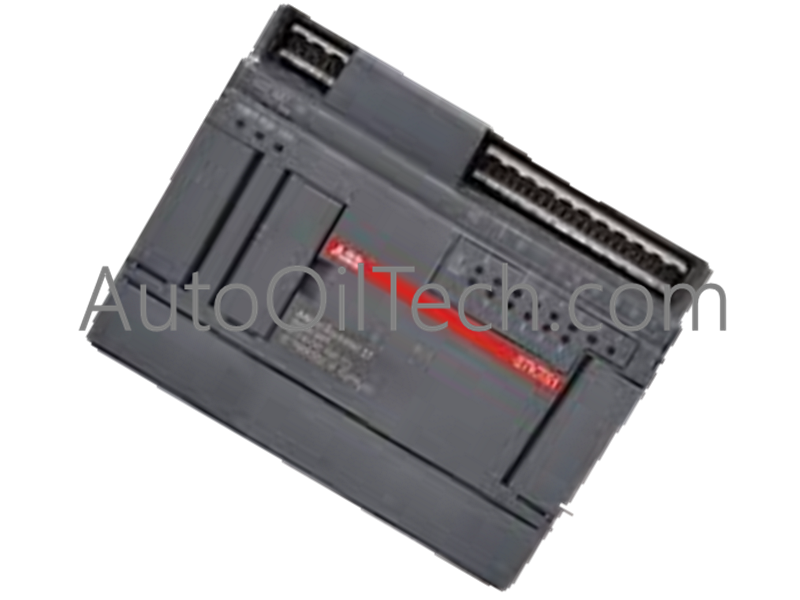

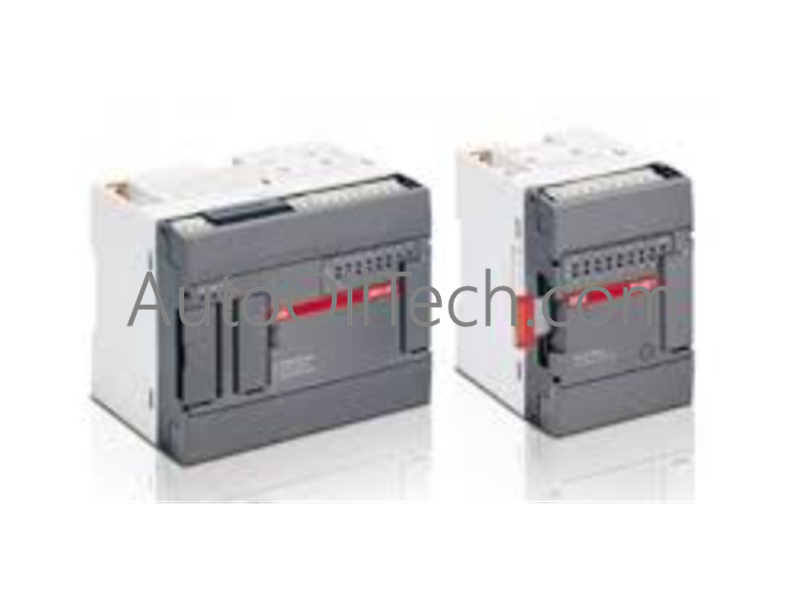

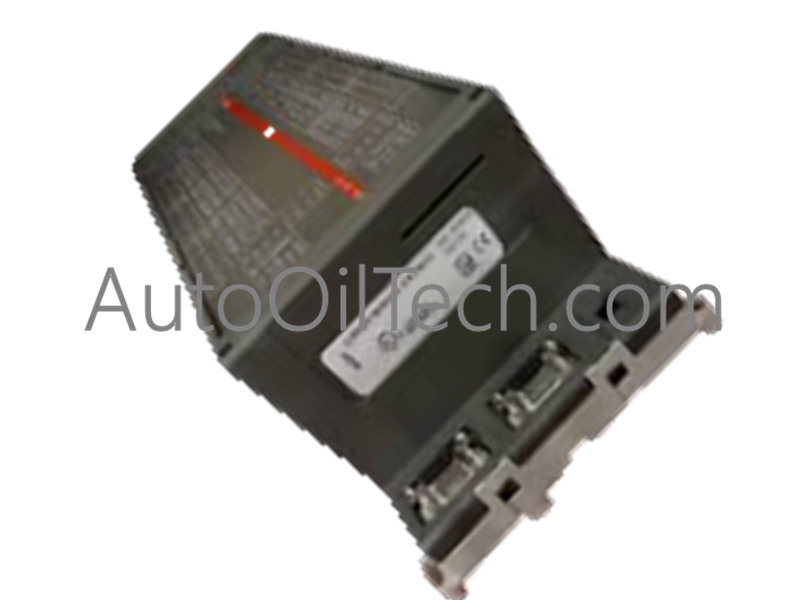

ABB 07DC92 GJR5251400R0202 Advant Controller

Product Overview

The ABB 07DC92 is a highly versatile Digital Input/Output Module designed for the CS31 System Bus. It provides a decentralized interface for controlling and monitoring up to 32 digital channels. The standout feature of the 07DC92 is its configurable nature, allowing each of the 32 channels to be defined as either an input or an output via the user program. This flexibility makes it an ideal solution for systems with varying I/O requirements, reducing the need for multiple different module types in a single cabinet.

Technical Specifications

• Model: 07DC92

• Type: Configurable Digital Input/Output Module

• Rated Supply Voltage: 24 V DC (Protected against reversed polarity)

• Channel Count: 32 (Configurable as inputs or outputs)

• Signal Voltage: 24 V DC

• Current Consumption: 0.15 A (Typical, without load)

• Communication: 1 x CS31 System Bus interface

• Input Delay: Typically 7 ms

• Isolation: Group-to-group and Bus-to-unit electrical isolation

• Operating Temperature: 0°C to +55°C

Key Features

• Fully Configurable I/O: Offers 32 channels that can be individually assigned as inputs (for sensors/switches) or outputs (for actuators/relays) through software, providing maximum design flexibility.

• Advanced Diagnostics: Equipped with 33 LEDs that provide real-time visual feedback for every channel and overall system health, significantly speeding up on-site troubleshooting.

• Robust Electrical Isolation: Features comprehensive isolation between the CS31 bus and internal logic, as well as between different I/O groups, protecting the system from electrical surges and noise.

• Simplified Addressing: A user-friendly coding switch located under a protective slide cover allows for quick setting of the unique CS31 bus address.

• Segmented Power Supply: Channels are divided into 4 groups of 8 channels, with each group supplied individually (ZP0 to ZP3), allowing for segmented safety or power management.
