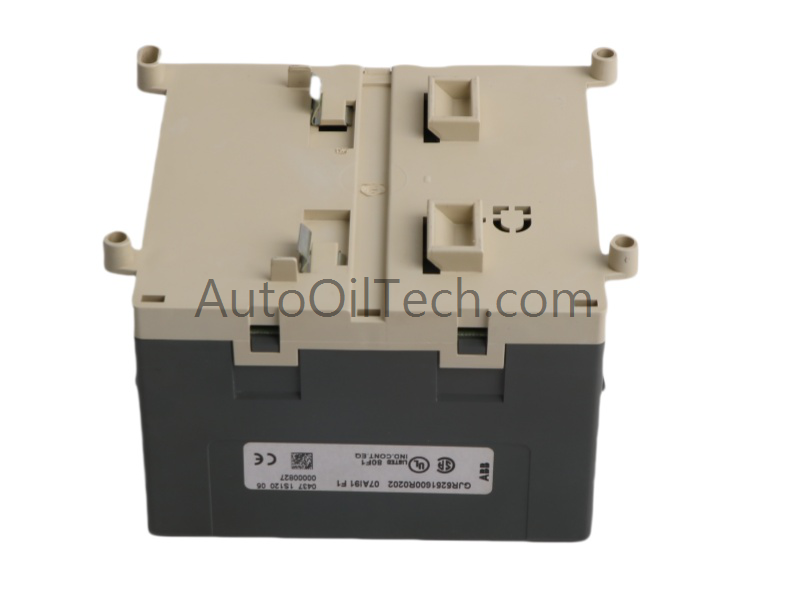

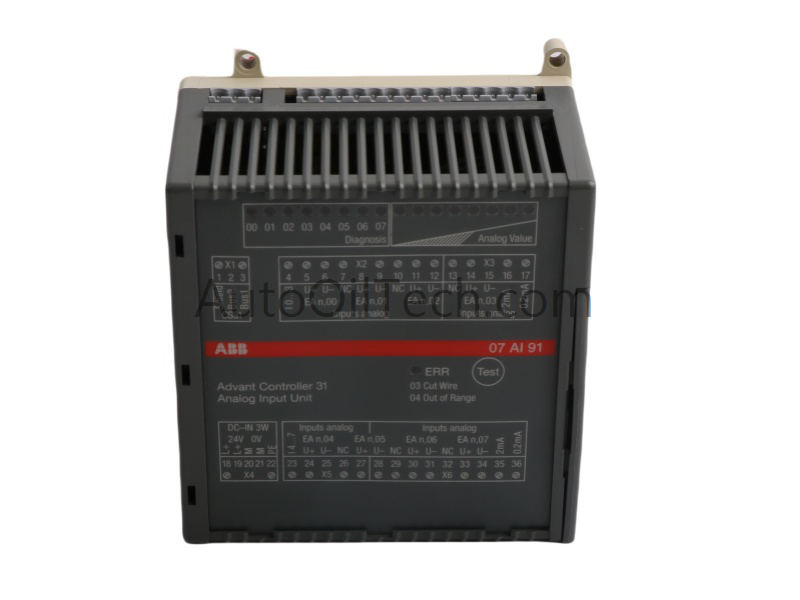

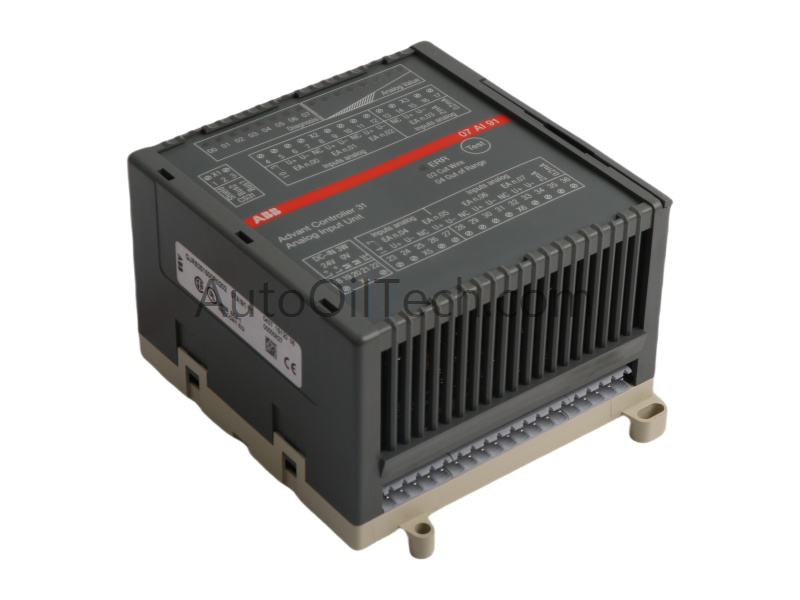

The ABB 07AI91 GJR5251600R0202 Analog I/O Module is a high-precision input device designed for industrial automation and process control. With support for voltage, current, and RTD signals, it ensures accurate data acquisition and seamless integration with ABB Advant OCS and CS31 control systems.
Technical Specifications
Parameter
Value
Model Number
07AI91 GJR5251600R0202
Module Type
Analog I/O Module (not digital)
Manufacturer
ABB
Condition
Brand New
Range of Product
Advant OCS 800xA, CS31
Weight
0.36 kg (net) / 2.36 kg (catalog)
Dimensions
14.5 × 18 × 15 cm (catalog)
HS Code
8537101190
Minimum Order Quantity
1
Product Origin
Sweden
System Compatibility
DCS, Advant OCS, CS31
Communication Service
Ethernet router
Input Channels
8 differential / 16 single-ended
Signal Types
Voltage, Current, RTD
Resolution
16-bit including sign
Accuracy
±0.1% of span at 25°C
Current Ranges
0–20 mA, 4–20 mA
Isolation
1500 V AC
Power Supply
24 V DC ±10%
Power Consumption
3.2 W
Operating Temperature
-25°C to +60°C
Storage Temperature
-40°C to +85°C
Humidity Tolerance
5–95% RH (non-condensing)
Lifecycle Status
Active
Functional Description
The ABB 07AI91 GJR5251600R0202 Analog I/O Module provides reliable signal acquisition with high channel density and precise conversion. Its 16-bit resolution ensures accurate monitoring, while robust isolation and construction guarantee safe operation in demanding environments.
Key Benefits
High-precision 16-bit resolution for accurate monitoring
Supports multiple signal types (voltage, current, RTD)
Compact and durable design with robust isolation
Seamless integration with ABB control systems
Reliable performance across wide temperature and humidity ranges
