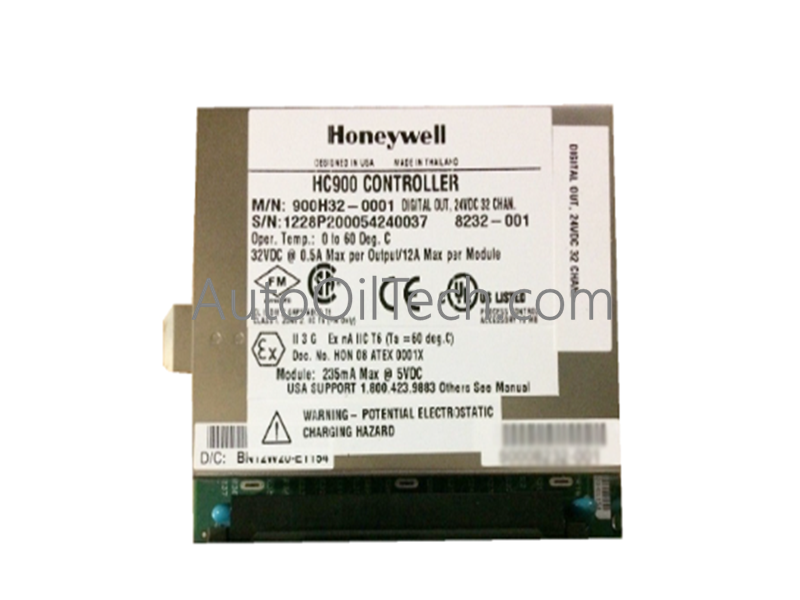

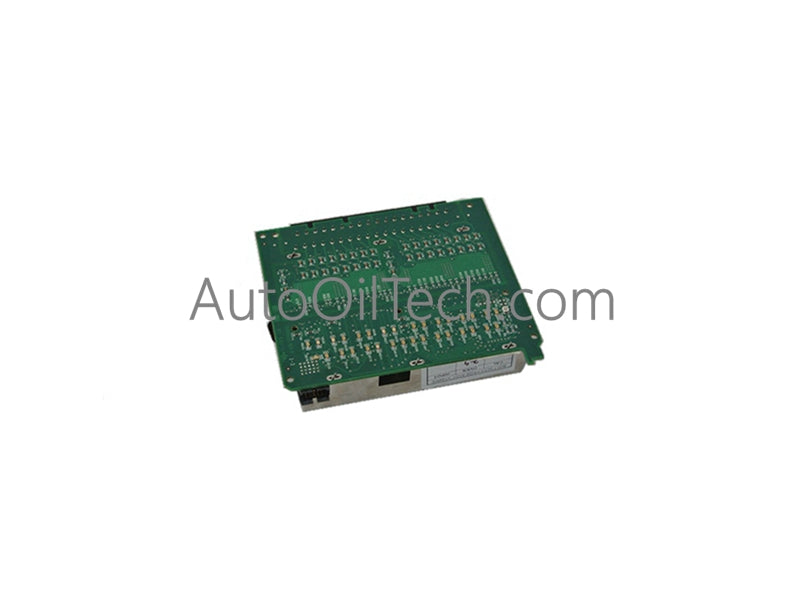

The Honeywell 900H32‑0001 Digital Output Module provides 32 high‑side sourcing 24 VDC digital outputs for Experion PKS and Series 8 systems, offering robust isolation, fast response, and integrated electronic protection for reliable discrete control.
Specifications
Manufacturer: Honeywell
Product Number: 900H32‑0001
Product Type: 32‑Point Digital Output Module
Outputs per Module: 32 high‑side sourcing outputs
Galvanic Isolation: 2 groups of 16 outputs
Operating Voltage: 10.5 to 32 VDC
Output Type: High‑side driver
Peak Voltage: 32 VDC
AC Frequency: N/A
ON Voltage Drop: 0.15 VDC @ 0.5 A load
Overload Protection:
Active current limiting
4 groups of 8 channels
Auto‑reset without power cycling
Maximum Load Current:
0.5 A per point
6 A max per channel group
12 A max per module (resistive load)
0.25 A per point for incandescent lamp loads (5 mH max)
Maximum Leakage Current: 0.15 mA @ 32 VDC
Maximum Inrush Current: 2 A for 10 ms
Minimum Load: 0.0 mA
Response Time: 6 ms (OFF→ON / ON→OFF)
Fuses: Electronic limiting
Weight: 0.18 kg
Shipping Weight: 3 kg
Features
High‑Density 32‑Point DO: Supports compact and scalable discrete output applications
Dual‑Group Isolation: Two isolated groups of 16 channels enhance system protection
Active Current Limiting: Prevents damage and auto‑recovers without power cycling
Fast 6 ms Switching: Suitable for real‑time discrete control tasks
Low Voltage Drop: 0.15 VDC at 0.5 A ensures efficient load driving
Wide Voltage Range: Operates from 10.5–32 VDC for flexible field compatibility
Reliable DO Switching: Drives solenoids, indicators, relays, and general discrete loads
Experion Integration: Fully compatible with Honeywell Series 8 and C300 architectures
