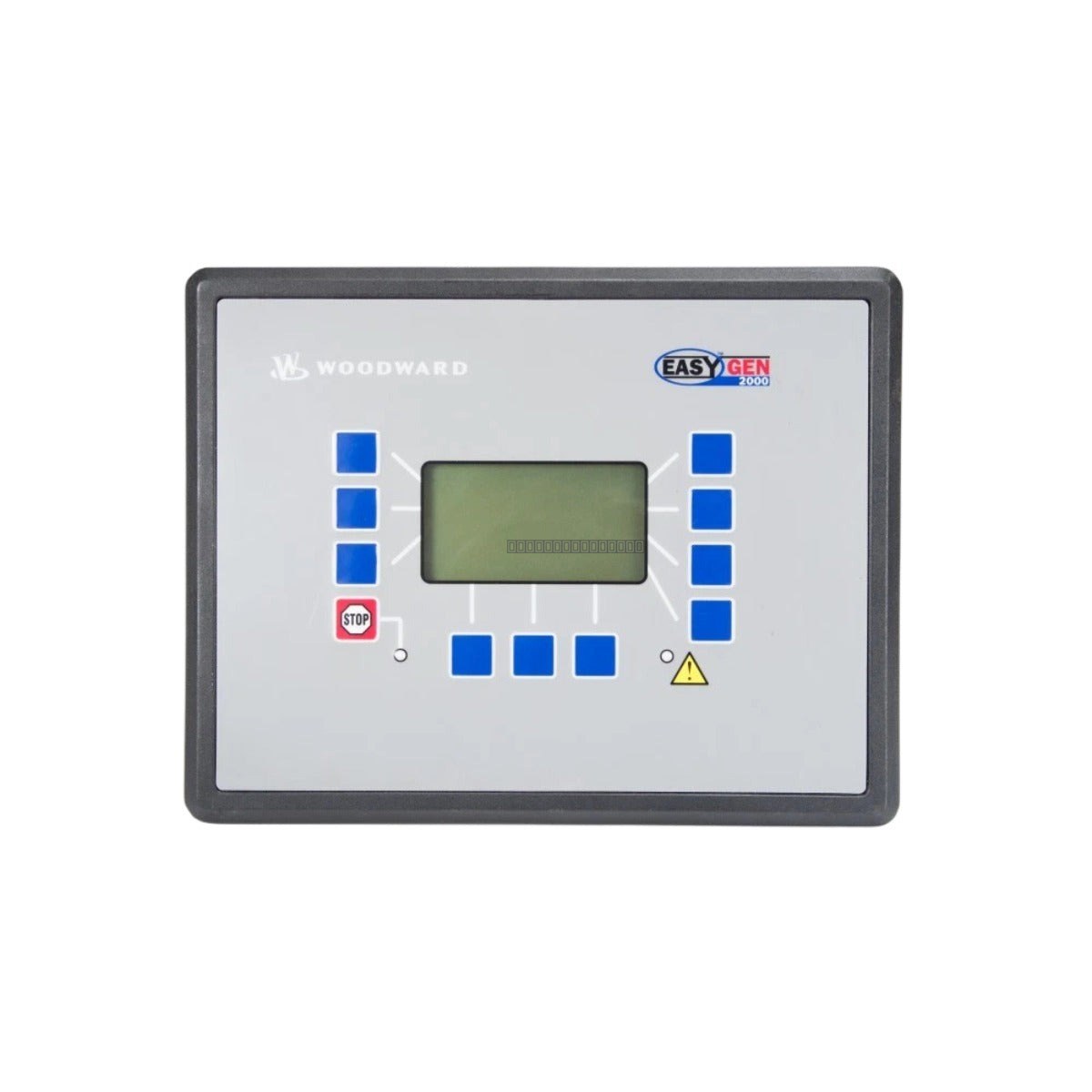

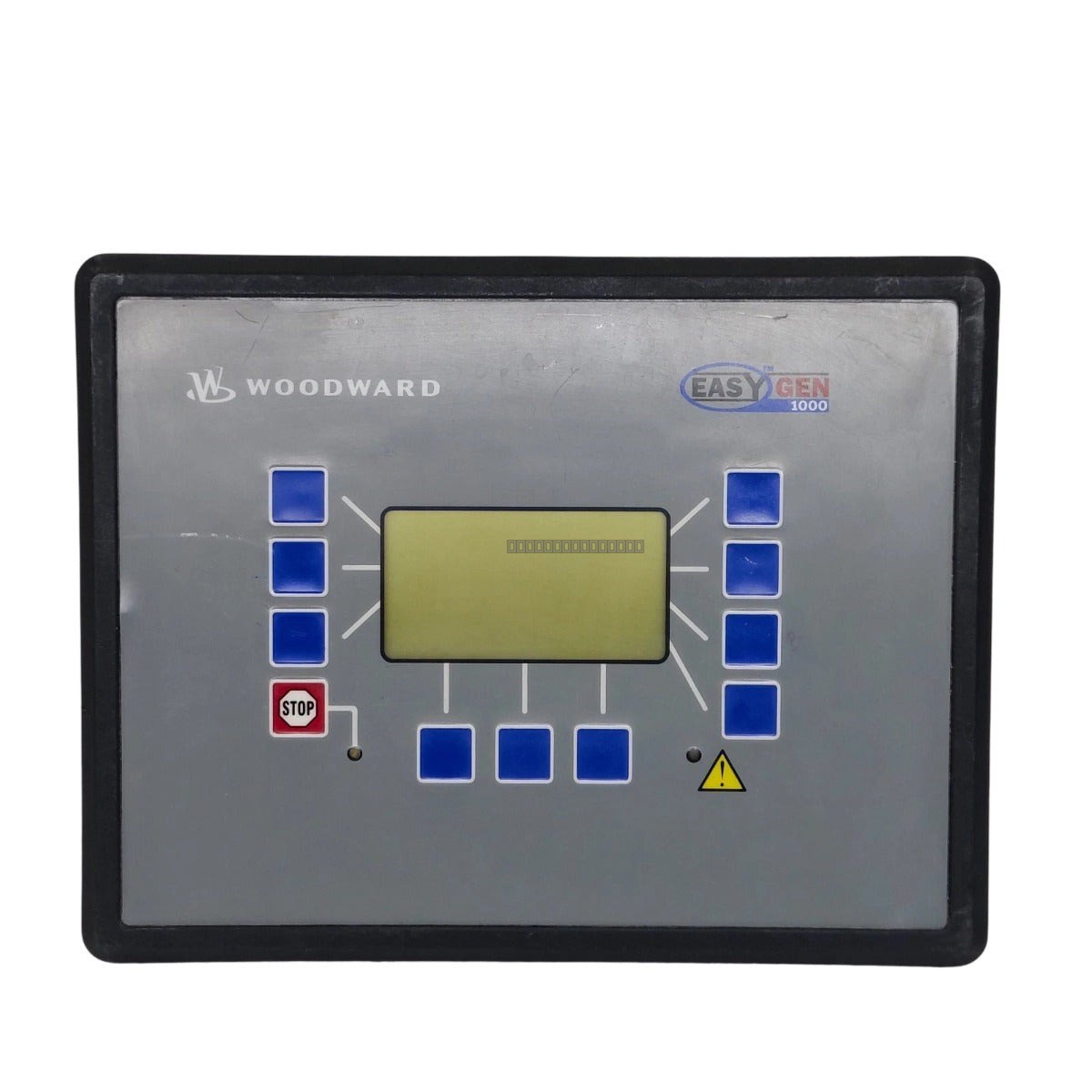

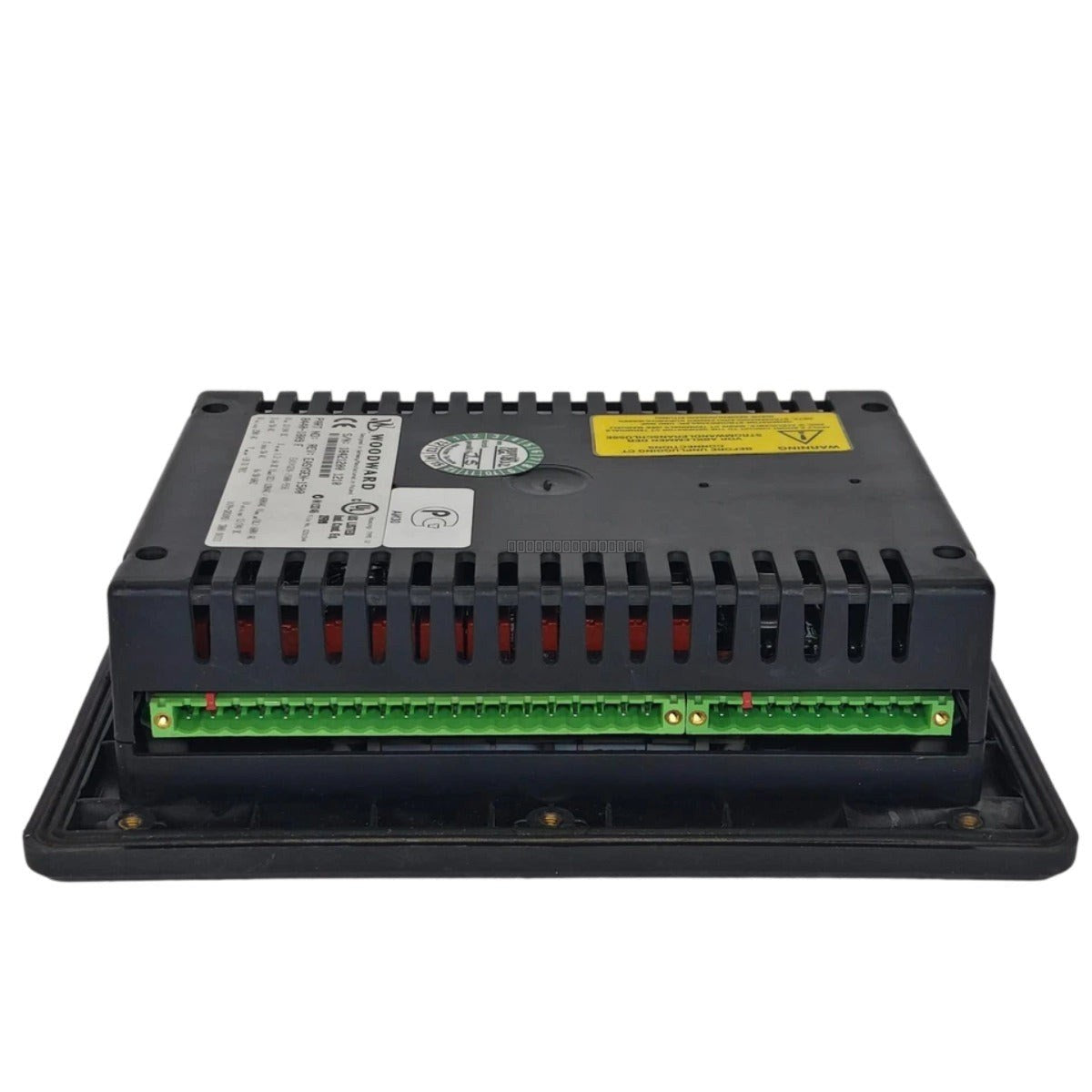

The Woodward 8440-1809 is a specialized Operator Interface Terminal (OIT) engineered for single-unit generator set (genset) management. This robust control module facilitates real-time monitoring and parameter adjustment via an integrated LCD display, providing essential feedback for engine and alternator performance. Primarily deployed in remote mining sites, backup power facilities for hospitals, and telecommunications hubs, the 8440-1809 serves as the primary human-machine interface for system diagnostics. By centralizing fault reporting and operational data, the unit enables rapid troubleshooting and preventative maintenance, significantly reducing mean time to repair (MTTR) and preventing catastrophic power failures in critical infrastructure.
Features
Integrated high-contrast LCD for clear visibility in industrial engine room environments.
Wide input voltage range (12-24 VDC) compatible with standard engine battery systems.
Industrial-grade durability designed to withstand high-vibration environments.
Resistant to electromagnetic interference (EMI) typical of heavy rotating machinery.
Centralized data reporting for engine parameters including voltage, frequency, and oil pressure.
Applications
The 8440-1809 is designed for critical power applications, including:
Backup power systems for hospitals and data centers.
Remote power generation for mining and industrial sites.
Telecommunications infrastructure power management.
Single-unit generator set monitoring and control.
Technical Specifications
Model
8440-1809
Brand
Woodward
Module Type
Genset Control Interface / OIT
Display Type
LCD Display
Input Voltage
12 to 24 VDC
Mounting Configuration
Panel Mount
Operating Temperature
-20 to +70 deg C
Installation Guidelines
Mounting: Ensure the unit is securely panel-mounted in a location that allows for clear operator access and adequate ventilation.
Power Wiring: Verify that the input power supply is within the 12-24 VDC range before connection. Ensure correct polarity to prevent damage to internal circuitry.
Grounding: Follow standard industrial grounding practices to protect against EMI and ensure stable operation in high-noise environments.
ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to sensitive internal components.
Maintenance: Always disconnect power before performing any wiring adjustments or removing the module from the panel.
FAQ
Is the 8440-1809 suitable for multi-unit generator synchronization?
No, the 8440-1809 is specifically engineered for single-unit generator set management and monitoring.
What is the operating temperature range for this module?
The module is rated for operation in environments ranging from -20 deg C to +70 deg C.
