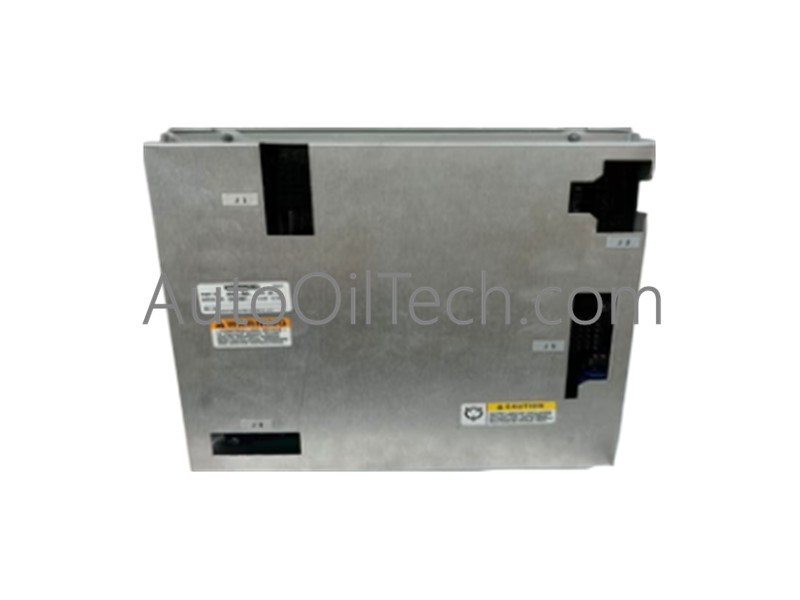

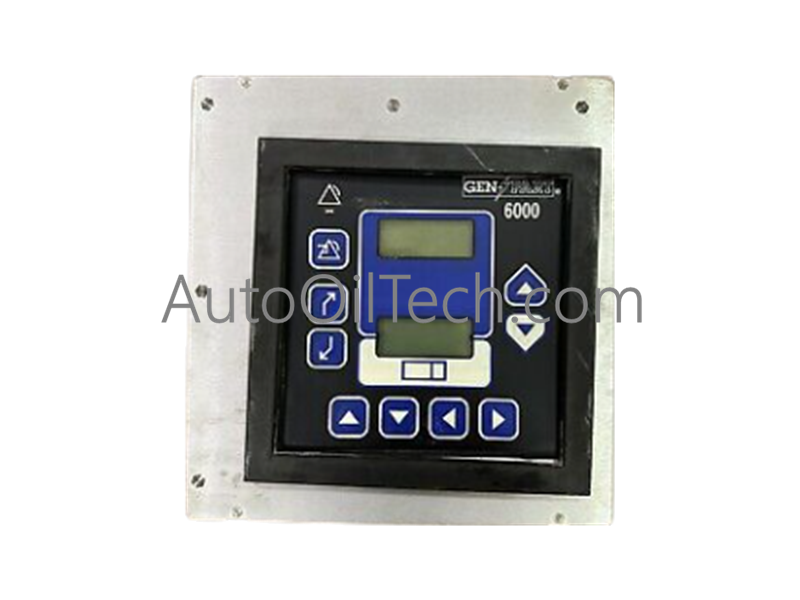

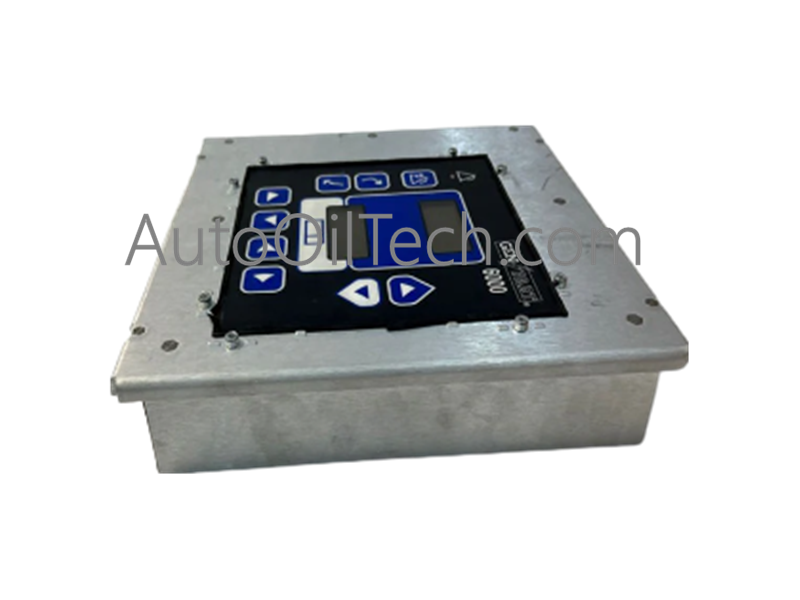

The Woodward 8440-003 is a remote Dual Display Control Panel designed to provide an external user interface for engine and generator control systems. It allows operators to monitor critical parameters and execute manual control commands from a distance, mirroring the status and alarms of the primary controller.
Specifications
Operating Voltage:24 Vdc nominal (range 18 Vdc to 32 Vdc).
Power Consumption:Approximately 10 W.
Display Type:High-contrast dual LED numeric and status indicators.
Communication Interface:RS-422 or CAN bus (model dependent).
Protection Rating:IP65 when front-panel mounted.
Operating Temperature:-20°C to +70°C.
Enclosure Type:Flush-mount industrial housing.
Digital Inputs:Dedicated inputs for remote acknowledgement and reset.
Features
Dual Monitoring Windows:Provides simultaneous viewing of different engine or generator parameters, such as speed and voltage, without toggling menus.
Tactile Control Buttons:Includes rugged push-buttons for manual start/stop, alarm reset, and menu navigation.
Remote Accessibility:Extends the control interface up to several hundred meters from the main engine room for improved operator safety.
High-Visibility LEDs:Features bright status indicators for "Ready," "Running," "Common Alarm," and "Common Shutdown" states.
Synchronized Data:Maintains real-time data consistency with the master controller via high-speed serial communication.
Industrial Durability:Designed to withstand high vibration and temperature fluctuations common in marine and power plant environments.
