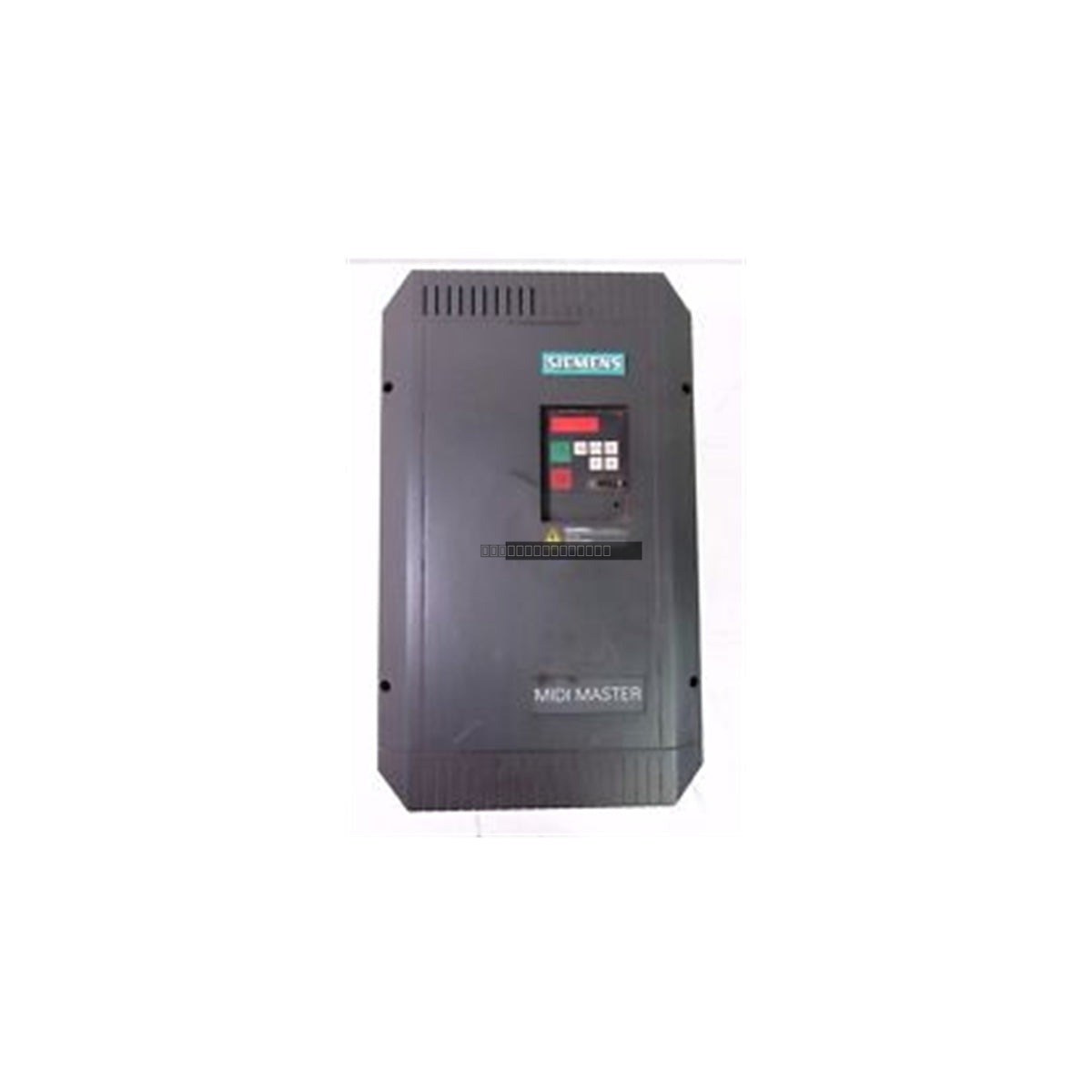

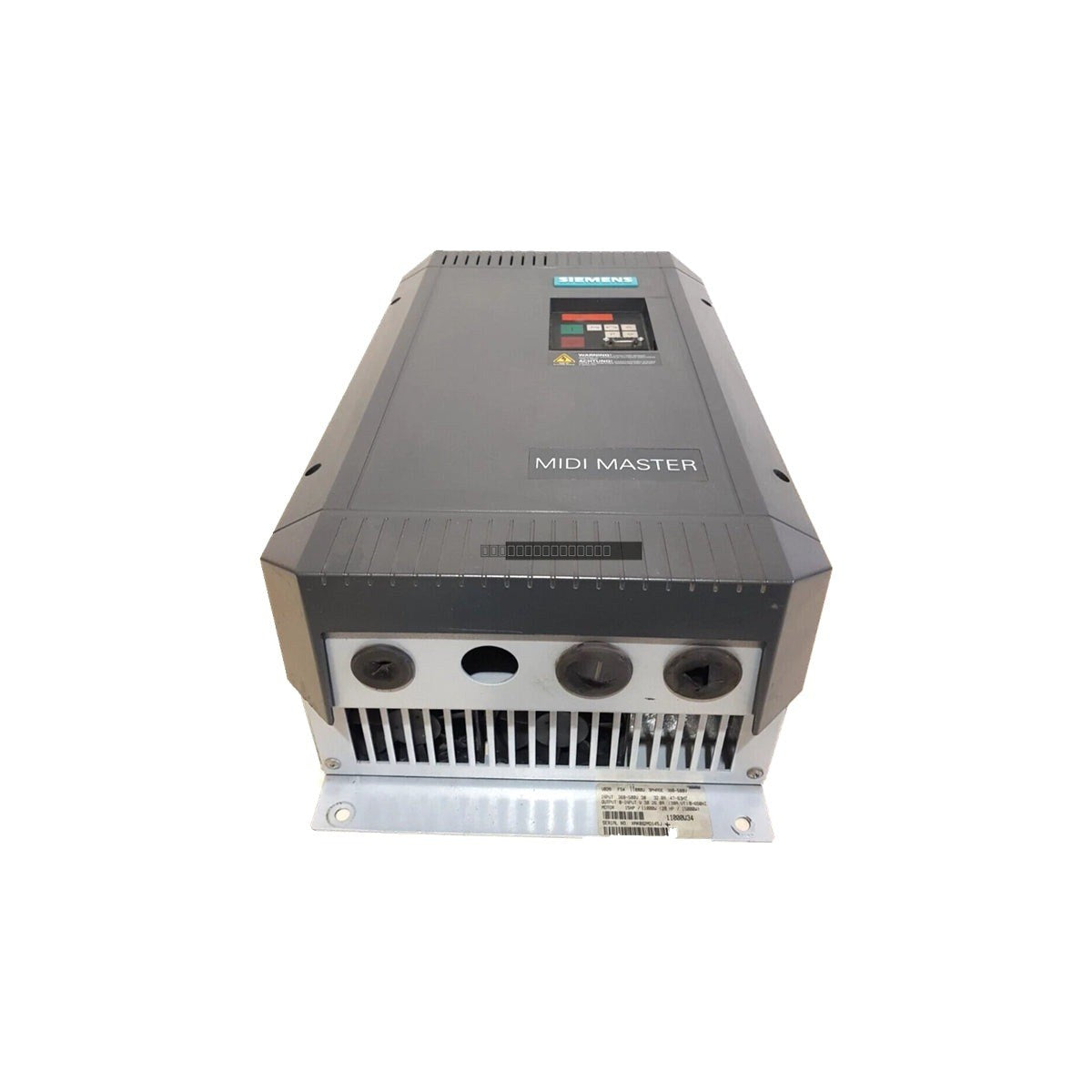

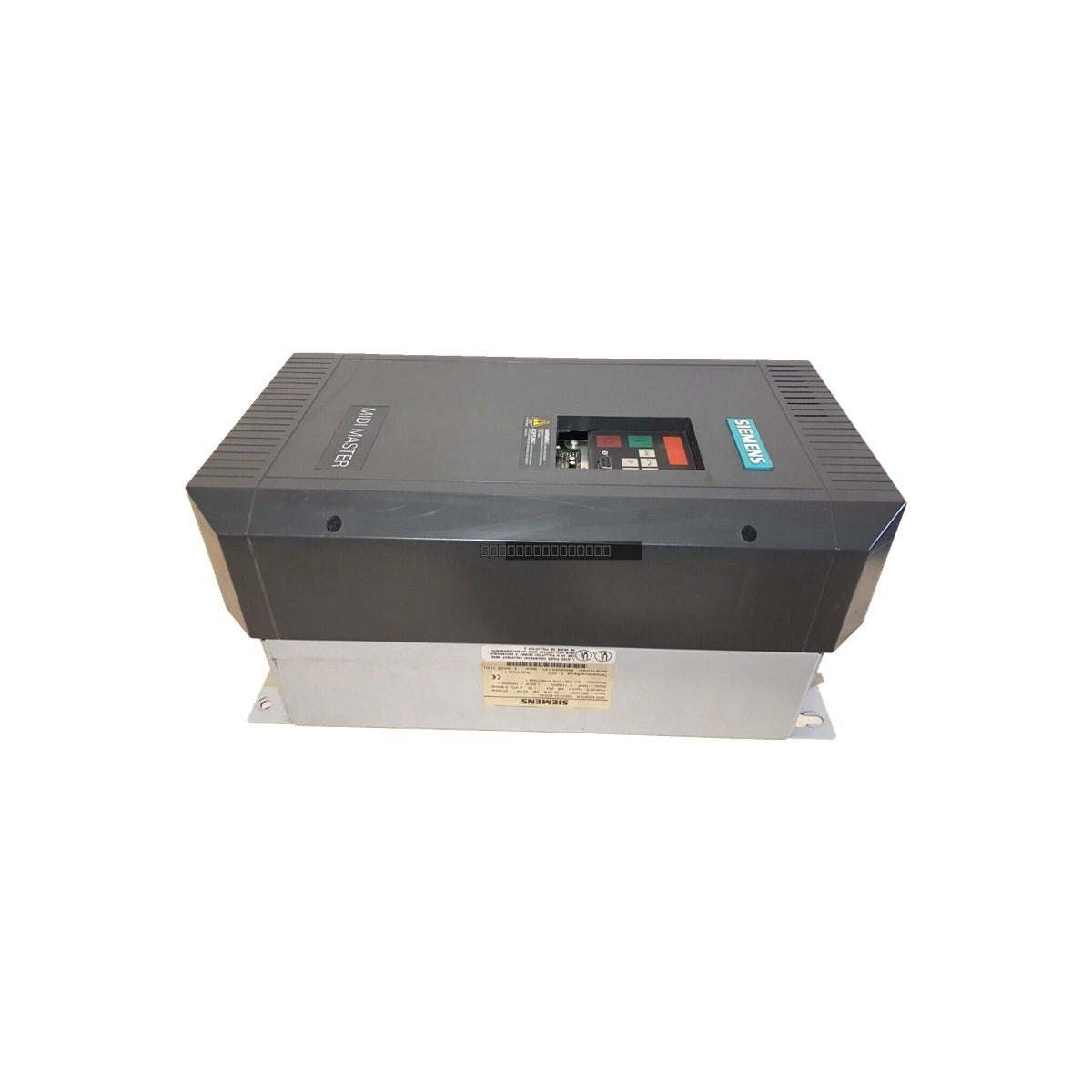

The Siemens 6SE3122-4DG40 is a high-performance frequency converter belonging to the SIMOVERT P MIDI MASTER series. Designed for industrial motor control, this drive provides precise regulation of speed and torque for 3-phase AC motors. It is widely utilized in demanding environments such as pumping systems, conveyor networks, and ventilation infrastructure, where it manages the conversion of fixed-frequency input power into variable voltage and frequency output to improve operational efficiency and reduce mechanical wear.
Features
Advanced Pulse Width Modulation (PWM) inverter architecture for precise motor control.
Supports 3-phase AC input voltage ranging from 380 V to 500 V.
Integrated protection suite including thermal monitoring, overcurrent protection, and undervoltage detection.
High-torque output capability suitable for high-inertia startup conditions.
Standardized terminal block interface for seamless integration into existing analog or digital control loops.
Internal forced-air cooling system to maintain optimal operating temperatures under load.
Technical Specifications
Model
6SE3122-4DG40
Brand
Siemens
Series
SIMOVERT P MIDI MASTER
Rated Power
15 kW
Input Voltage
380-500 VAC (3-Phase)
Rated Current
32 A
Output Frequency
0-650 Hz
Protection Rating
IP20
Operating Temperature
0 to 40 deg C
Installation Guidelines
Ensure the drive is mounted in a vertical position to facilitate proper airflow through the internal cooling fan.
Maintain adequate clearance around the unit to prevent heat accumulation and ensure ventilation requirements are met.
Verify that input power matches the 380-500 VAC specification before applying voltage to the terminals.
Use appropriate shielded cabling for control signals to minimize EMI interference in industrial environments.
Always disconnect all power sources and allow sufficient discharge time for internal capacitors before performing maintenance or wiring changes.
Ensure the chassis is properly grounded in accordance with local electrical safety standards to prevent electrical faults.
FAQ
Is this drive suitable for high-inertia loads?
Yes, the SIMOVERT P MIDI MASTER architecture is designed to deliver high torque at low speeds, making it well-suited for applications that require significant starting torque.
What is the primary cooling method for this unit?
The 6SE3122-4DG40 utilizes an internal forced-air cooling fan. It is essential to ensure that the air intake and exhaust vents remain unobstructed during operation.
