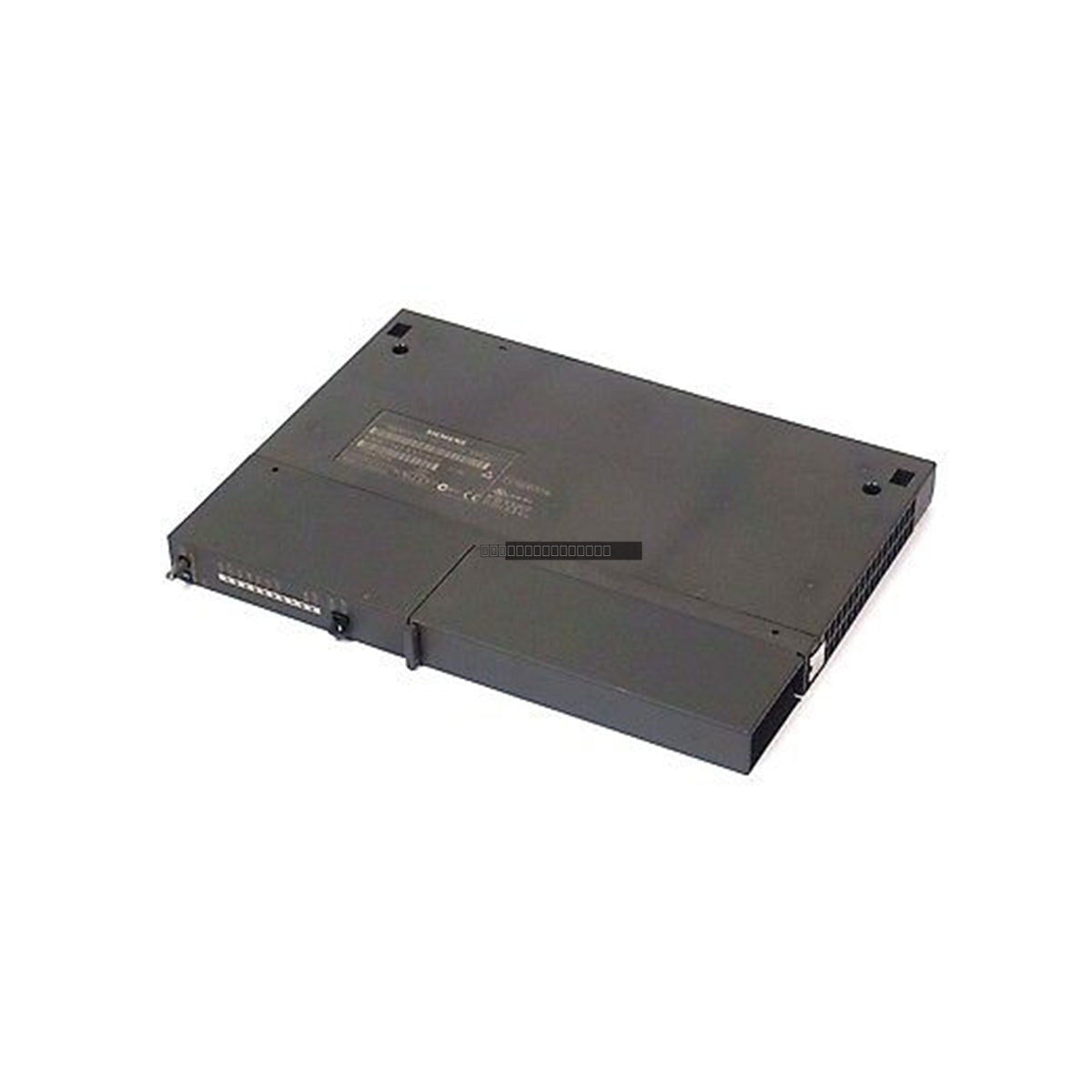

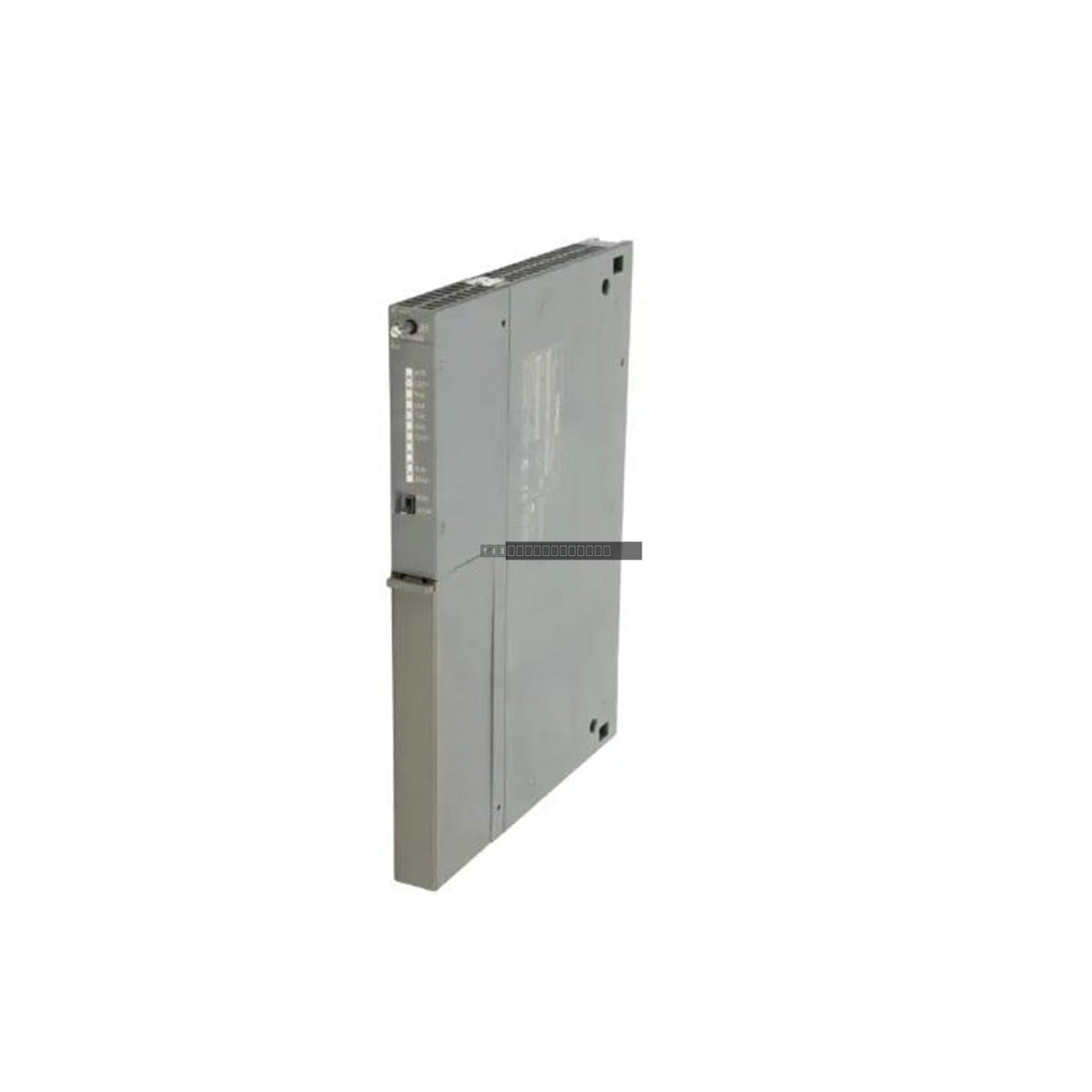

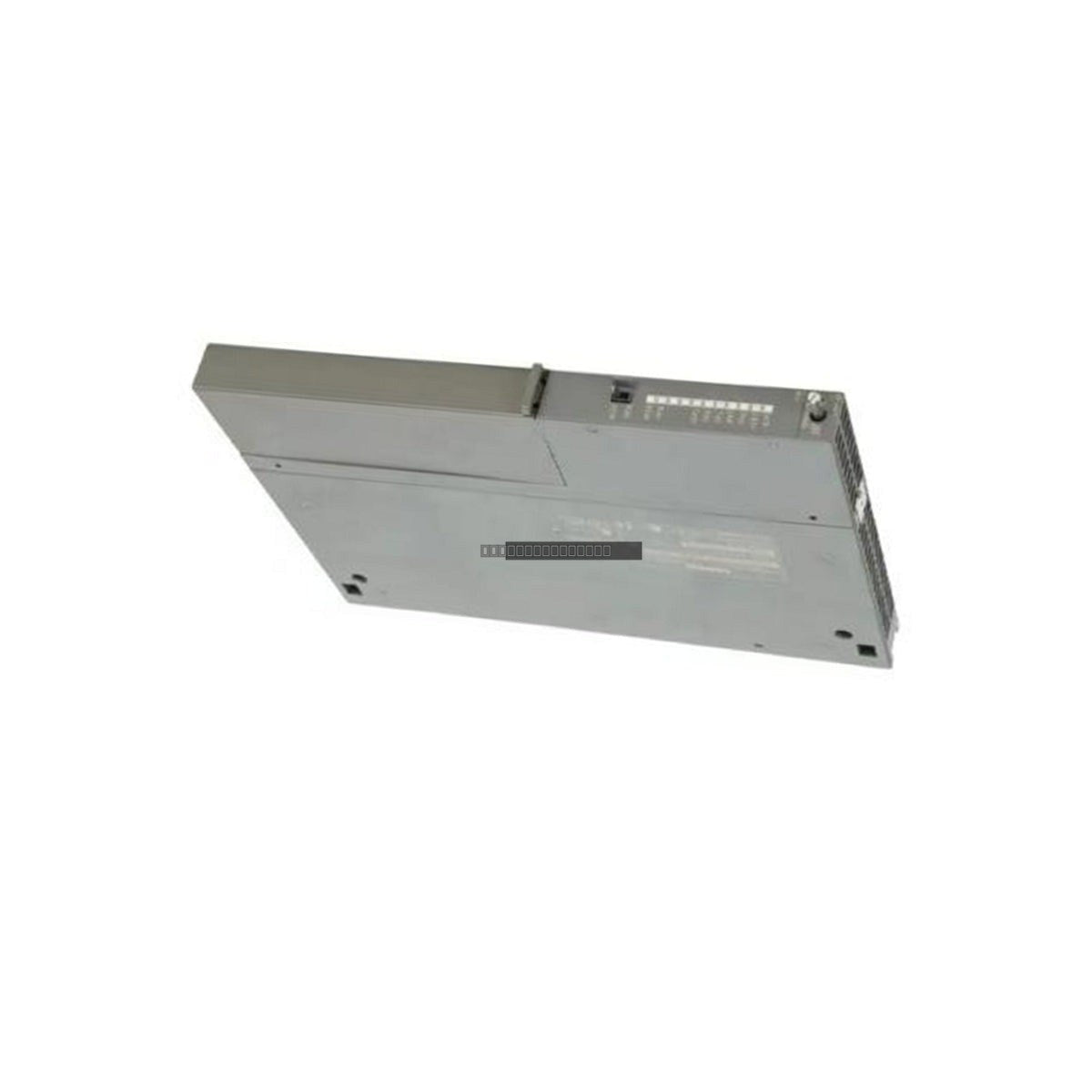

The Siemens 6GK7443-1EX11-0XE0 is a high-performance communications processor designed for the SIMATIC S7-400 automation system. This CP 443-1 module facilitates robust industrial networking, providing connectivity for PROFINET IO controllers and supporting a variety of communication protocols to ensure seamless data exchange within complex control environments.
Features
Integrated 2-port 10/100 Mbit/s IE switch with RJ45 interfaces.
Supports multiple communication protocols including ISO, TCP, and UDP.
Functions as a PROFINET IO controller for distributed I/O management.
Enables S7 communication, S7 routing, and open communication via SEND/RECEIVE blocks.
Includes advanced security and management features: IP Access Control List (ACL), DHCP, and block-based IP configuration.
Supports time synchronization and PROFIenergy for efficient power management.
Features extended web-based diagnostics for simplified troubleshooting and monitoring.
Supports Fast Startup functionality for rapid integration and recovery.
Applications
This communications processor is engineered for demanding industrial automation tasks, including manufacturing process control, infrastructure management, and large-scale plant automation. It is ideal for systems requiring reliable Ethernet connectivity, integration with PROFINET-compliant devices, and high-speed data routing between S7-400 stations and higher-level management systems.
Technical Specifications
Model
6GK7443-1EX11-0XE0
Interface Speed
10/100 Mbit/s
Ports
2 x RJ45
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 70 degC
Manufacturer
Siemens
Installation Guidelines
Ensure the S7-400 rack is powered down before inserting or removing the CP 443-1 module to prevent electrical damage.
Verify that the module is firmly seated in the intended slot and secured with the integrated locking mechanism.
Use shielded twisted-pair cables for Ethernet connections to minimize electromagnetic interference (EMI) in industrial environments.
Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the specified 0 to 60 degC operating range.
Follow standard ESD precautions when handling the module to protect internal circuitry.
FAQ
Is this module compatible with all S7-400 CPUs? The 6GK7443-1EX11-0XE0 is designed for the S7-400 series; however, compatibility should always be verified against your specific CPU firmware and system configuration requirements in the official Siemens documentation.
Does this module support PROFIenergy? Yes, this specific model includes support for PROFIenergy, allowing for energy-efficient control of industrial equipment.
