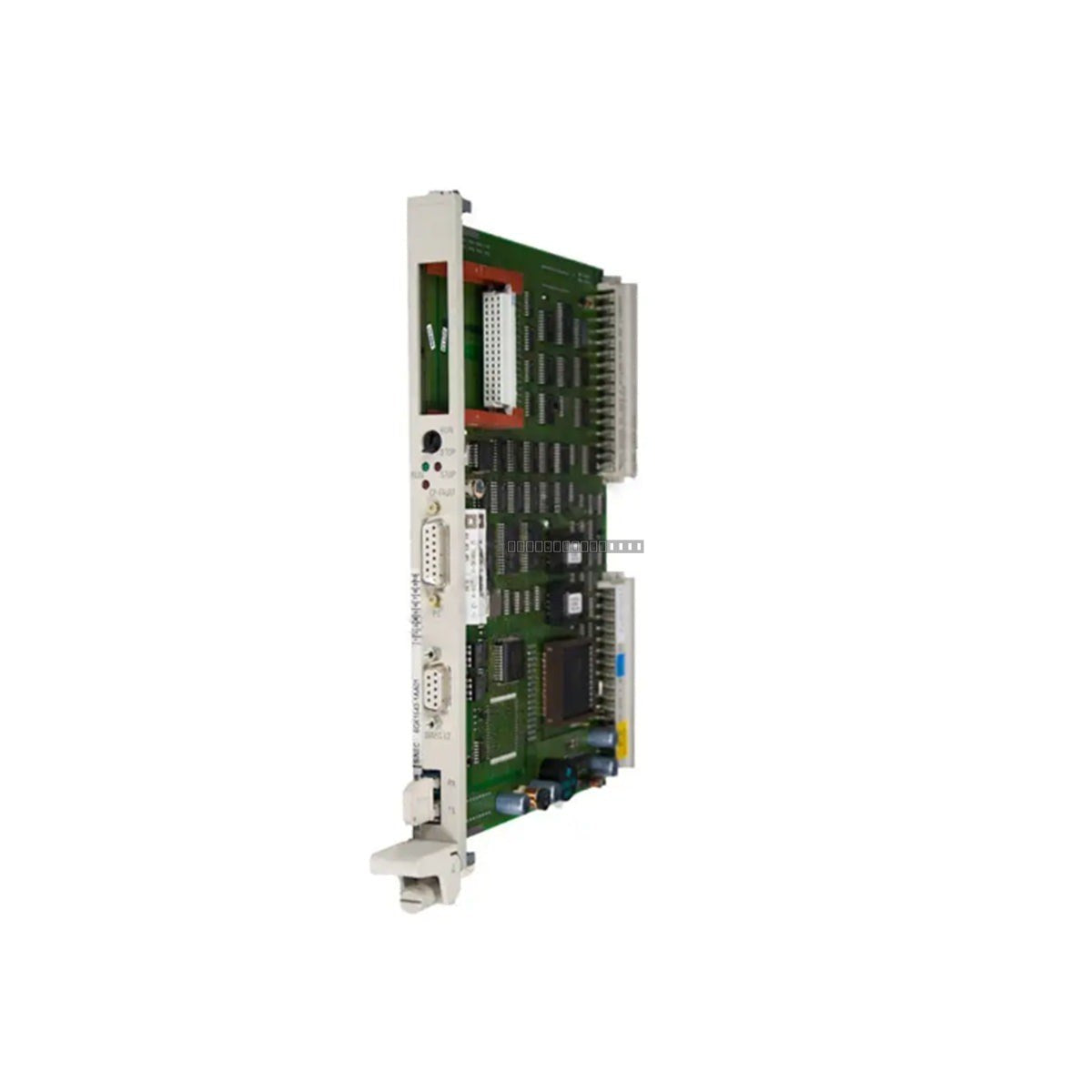

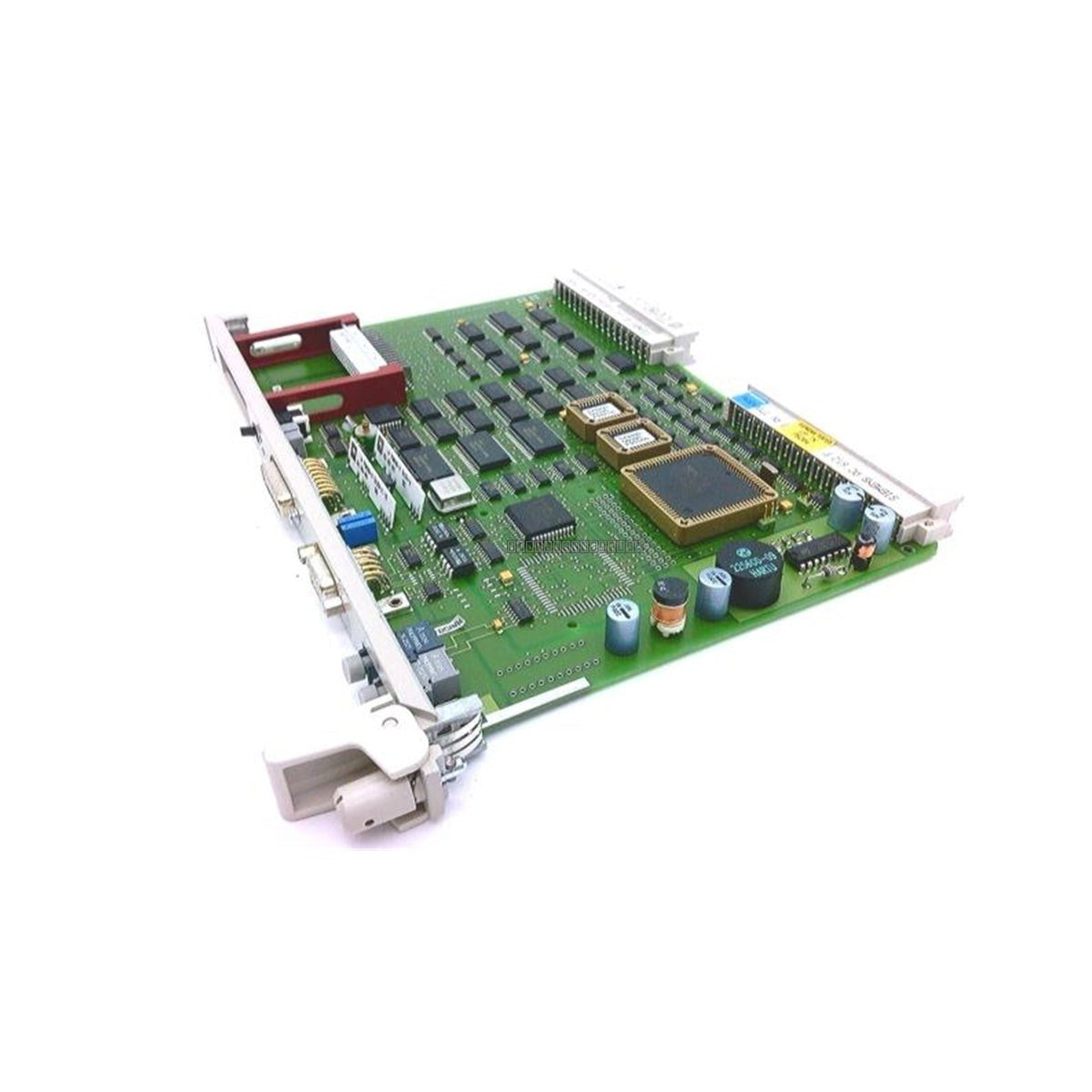

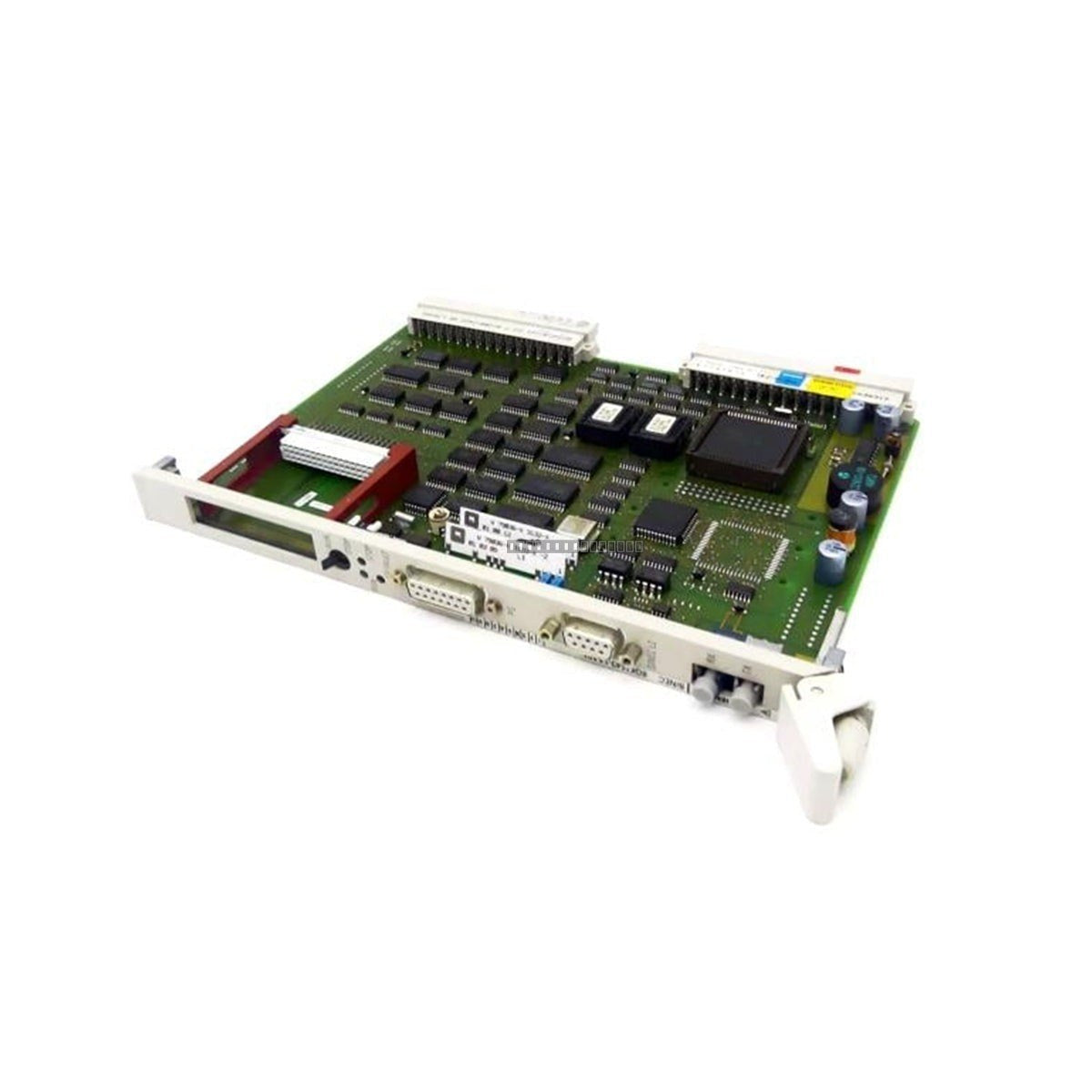

The Siemens 6GK1543-1AA01, also known as the CP 5431 FMS/DP, is a specialized communications processor designed for the SIMATIC S5 automation system. This module facilitates robust data exchange and networking capabilities, supporting both PROFIBUS FMS (Fieldbus Message Specification) and DP (Decentralized Peripherals) protocols. It is engineered for integration with various S5 controller series, including the 115U, 135U, and 155U, providing reliable communication interfaces for complex industrial control environments.
Features
Supports PROFIBUS FMS and DP communication standards.
Designed for seamless integration with SIMATIC S5 programmable logic controllers.
Enables high-speed data communication between automation stations and decentralized field devices.
Robust hardware design suitable for demanding industrial environments.
Status indicators for diagnostic monitoring of communication activity.
Applications
This communications processor is primarily utilized in legacy SIMATIC S5 automation systems where PROFIBUS connectivity is required for distributed I/O, HMI communication, or peer-to-peer controller networking. It is commonly found in manufacturing, process control, and infrastructure automation sectors requiring reliable fieldbus communication.
Technical Specifications
Product Model
6GK1543-1AA01
Module Type
Communications Processor (CP)
Series
SIMATIC NET / S5
Supported Protocols
PROFIBUS FMS, PROFIBUS DP
Manufacturer
Siemens
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the CP 5431 module.
Verify that the module is correctly seated in the designated slot of the S5 rack to ensure proper backplane connection.
Use appropriate shielded PROFIBUS cabling to minimize electromagnetic interference (EMI) in industrial environments.
Ensure proper grounding of the PROFIBUS network segment to prevent ground loops and signal degradation.
Follow standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
After installation, configure the communication parameters via the appropriate Siemens programming software (e.g., STEP 5) to match the network requirements.
FAQ
Is the 6GK1543-1AA01 still in production?
No, this module has been discontinued by Siemens. It is typically sourced as a spare part for maintaining legacy systems.
What systems is this module compatible with?
The CP 5431 is designed for use with SIMATIC S5 systems, specifically the 115U, 135U, and 155U series, as well as S7-22X configurations where applicable.
