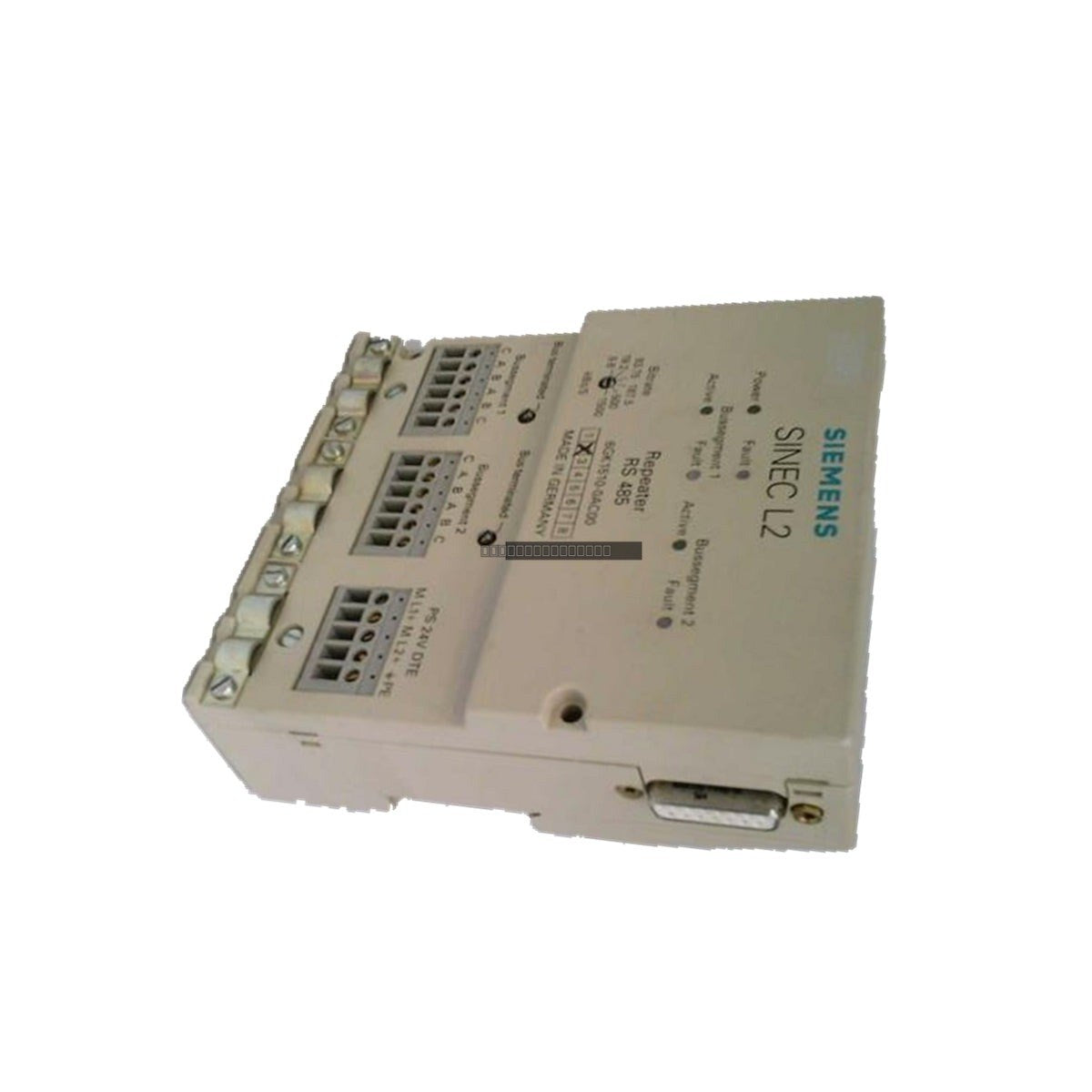

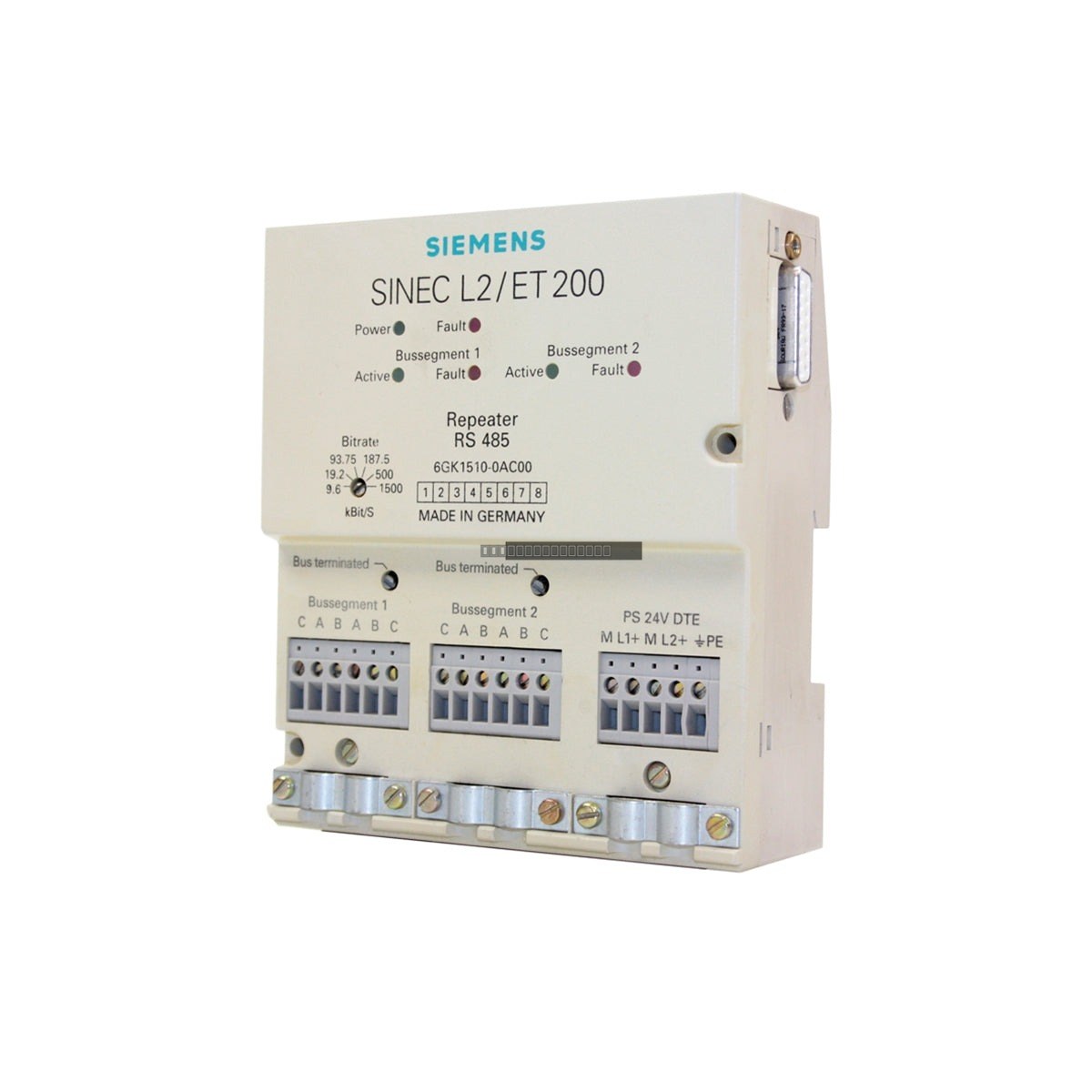

Siemens 6GK1510-0AC00 Simatic Net Repeater Module

The Siemens 6GK1510-0AC00 is a dedicated repeater module engineered for the Simatic Net product family, specifically designed to maintain signal integrity in demanding industrial Profibus network environments. This active component is essential for extending the physical reach of fieldbus segments, providing robust signal regeneration and amplification to support complex, long-distance communication architectures.

Features

• Signal Regeneration: Actively amplifies Profibus signals to compensate for attenuation over extended cable runs.
• Automatic Baud Rate Detection: Supports transmission speeds ranging from 9.6 kbit/s up to 1500 kbit/s with automatic synchronization.
• Galvanic Isolation: Provides electrical separation between network segments to protect against ground loops and transient voltage spikes.
• Diagnostic Indicators: Features integrated LED status monitoring for real-time reporting of bus activity, transmission faults, and internal power status.
• Protocol Transparency: Operates at the physical layer, ensuring bit-level regeneration without interfering with data frame integrity or introducing latency.

Applications

This repeater module is widely deployed in large-scale industrial facilities where network stability is critical. Typical use cases include thermal power plants, chemical processing units, and mining infrastructure, where long cable distances or high-EMI environments necessitate reliable signal conditioning to prevent packet loss and communication downtime.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the module is installed in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
• Power Supply: Use a stable 24 VDC power source. Always verify polarity before connecting to the terminal block to prevent damage to internal circuitry.
• Shielding and Grounding: To mitigate electromagnetic interference, ensure proper grounding of cable shields according to standard Profibus installation practices.
• Safety: Always disconnect power to the network segment before performing maintenance, module replacement, or wiring adjustments.
• Handling: This device contains sensitive electronic components; follow standard ESD (Electrostatic Discharge) precautions during installation and handling.

FAQ

Does this module require configuration for different baud rates? No, the 6GK1510-0AC00 features automatic baud rate detection and will synchronize with the existing network speed automatically.

Can I use this to extend any Profibus network? Yes, this module is designed for standard Profibus physical layer specifications and is compatible with most systems requiring signal regeneration over long distances.
