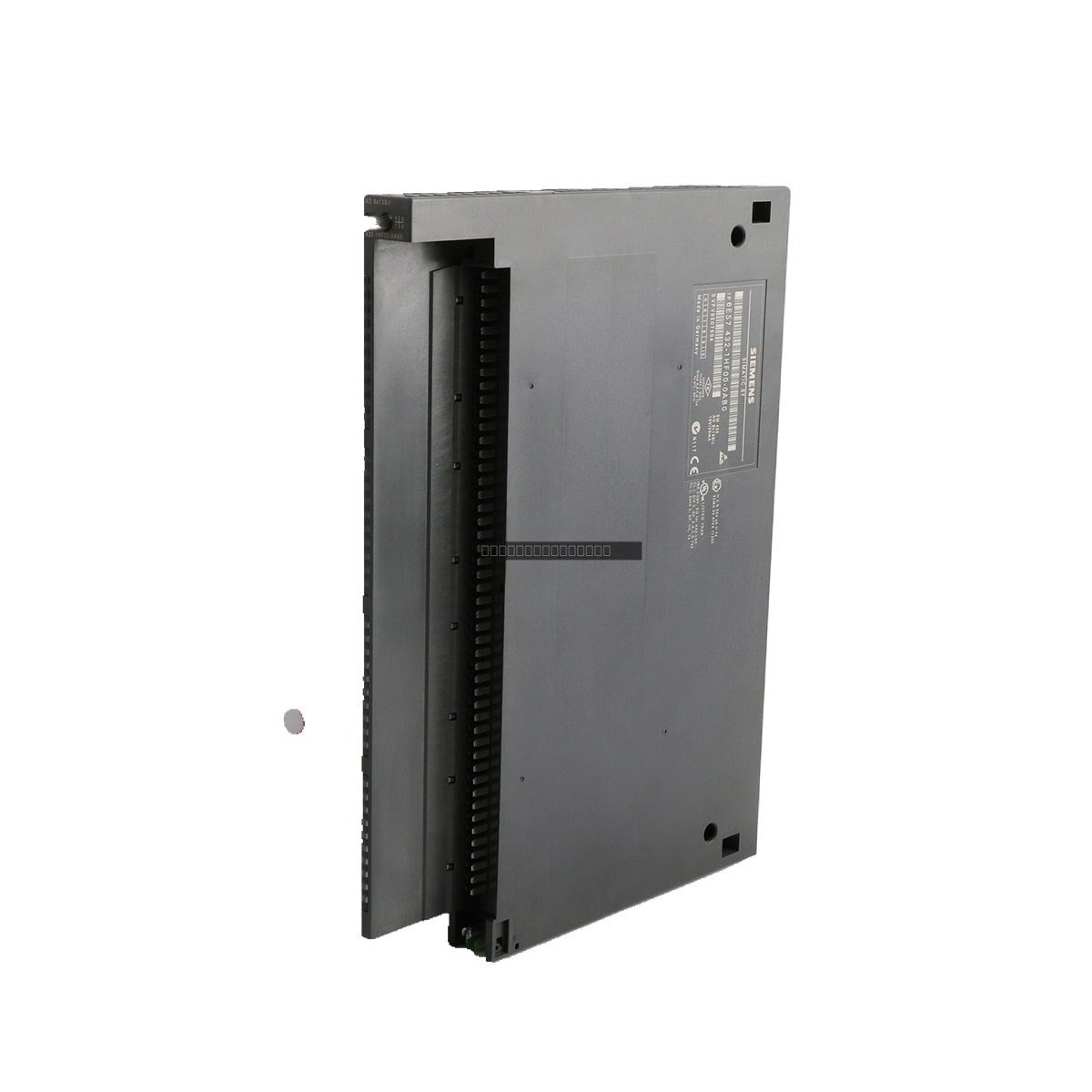

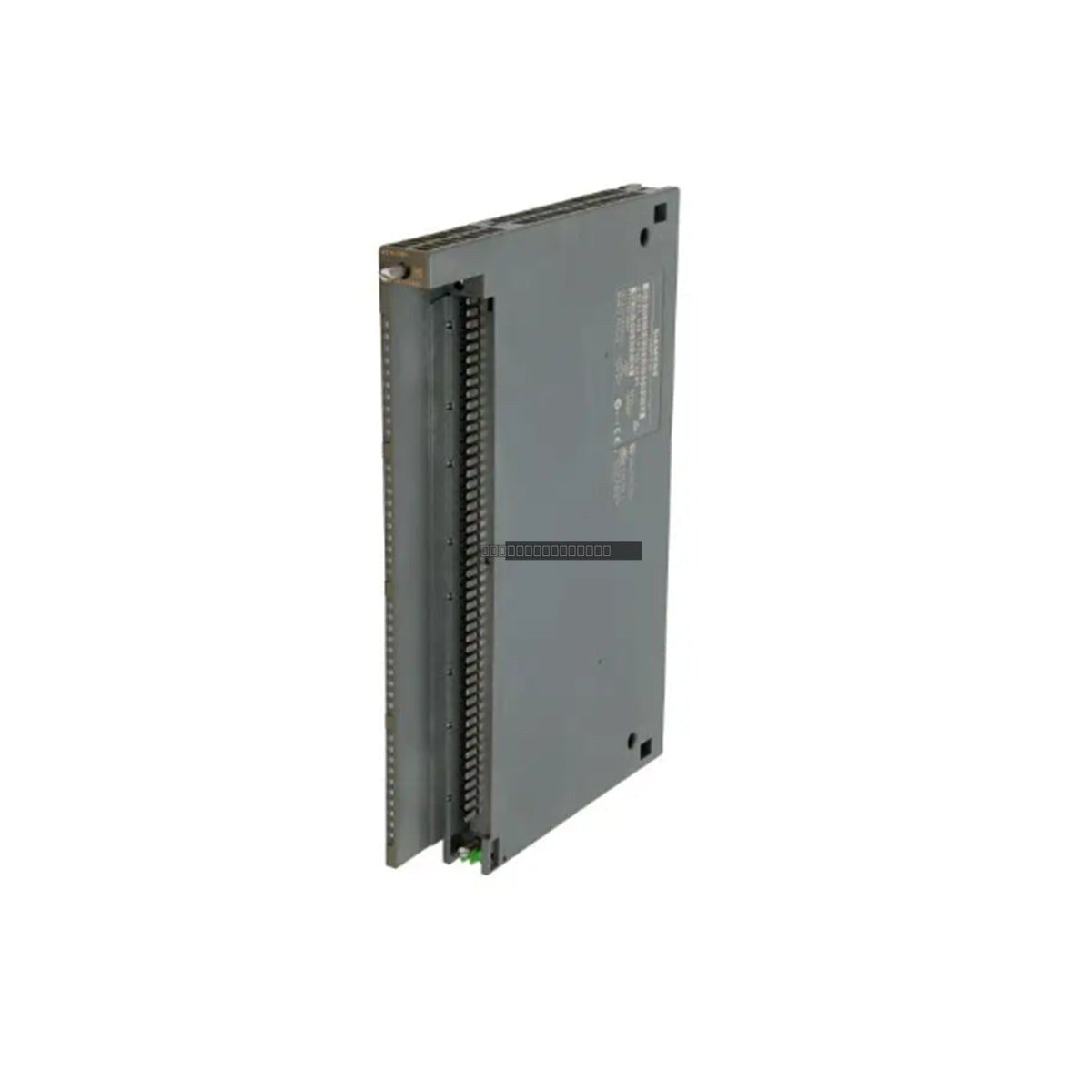

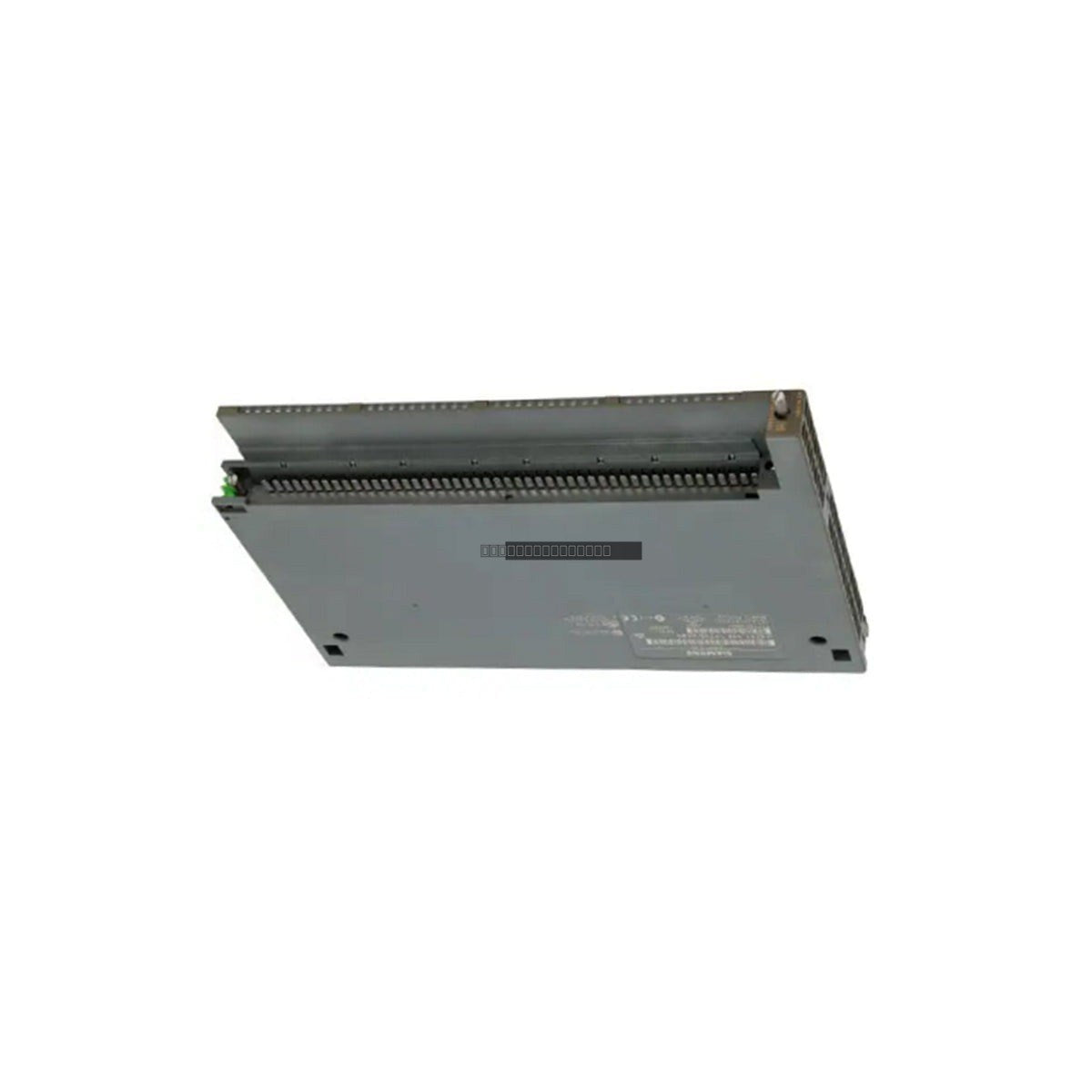

The Siemens 6ES7432-1HF00-0AB0 is a high-performance analog output module designed for the SIMATIC S7-400 automation system. This SM 432 module provides 8 isolated analog output channels, offering reliable signal conversion for industrial control applications. It is engineered for rack-mounted configurations, ensuring seamless integration into existing S7-400 backplanes.
Features
8 analog output channels with 13-bit resolution.
Optically isolated outputs for enhanced signal integrity and noise immunity.
Integrated short-circuit protection for voltage outputs.
Designed for standard S7-400 rack mounting.
Optimized for low power loss (typ. 9 W) in demanding industrial environments.
Technical Specifications
Model
6ES7432-1HF00-0AB0
System
SIMATIC S7-400
Number of Outputs
8
Resolution
13-bit
Rated Voltage (DC)
24 V
Current Consumption (Backplane)
150 mA (5 V DC)
Current Consumption (Load)
200 mA (no load) / 400 mA (rated load)
Power Loss
9 W
Short-Circuit Protection
Yes (Voltage output)
Max Short-Circuit Current
30 mA
Max No-Load Voltage (Current output)
19 V
Installation Guidelines
Ensure the S7-400 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify the module is correctly seated in the rack slot and secured with the provided locking mechanisms.
Use shielded cables for all analog signal wiring to minimize electromagnetic interference (EMI).
Maintain proper ventilation within the control cabinet to ensure the module operates within its thermal limits.
Handle with care using ESD-safe practices to protect internal circuitry from electrostatic discharge.
FAQ
What is the primary function of the 6ES7432-1HF00-0AB0?
This module serves as an analog output interface for the Siemens S7-400 PLC, converting digital values from the controller into analog signals for field devices such as actuators, valves, or drives.
Is this module optically isolated?
Yes, the 6ES7432-1HF00-0AB0 features optical isolation to protect the backplane and controller from potential electrical surges or ground loops in the field wiring.
