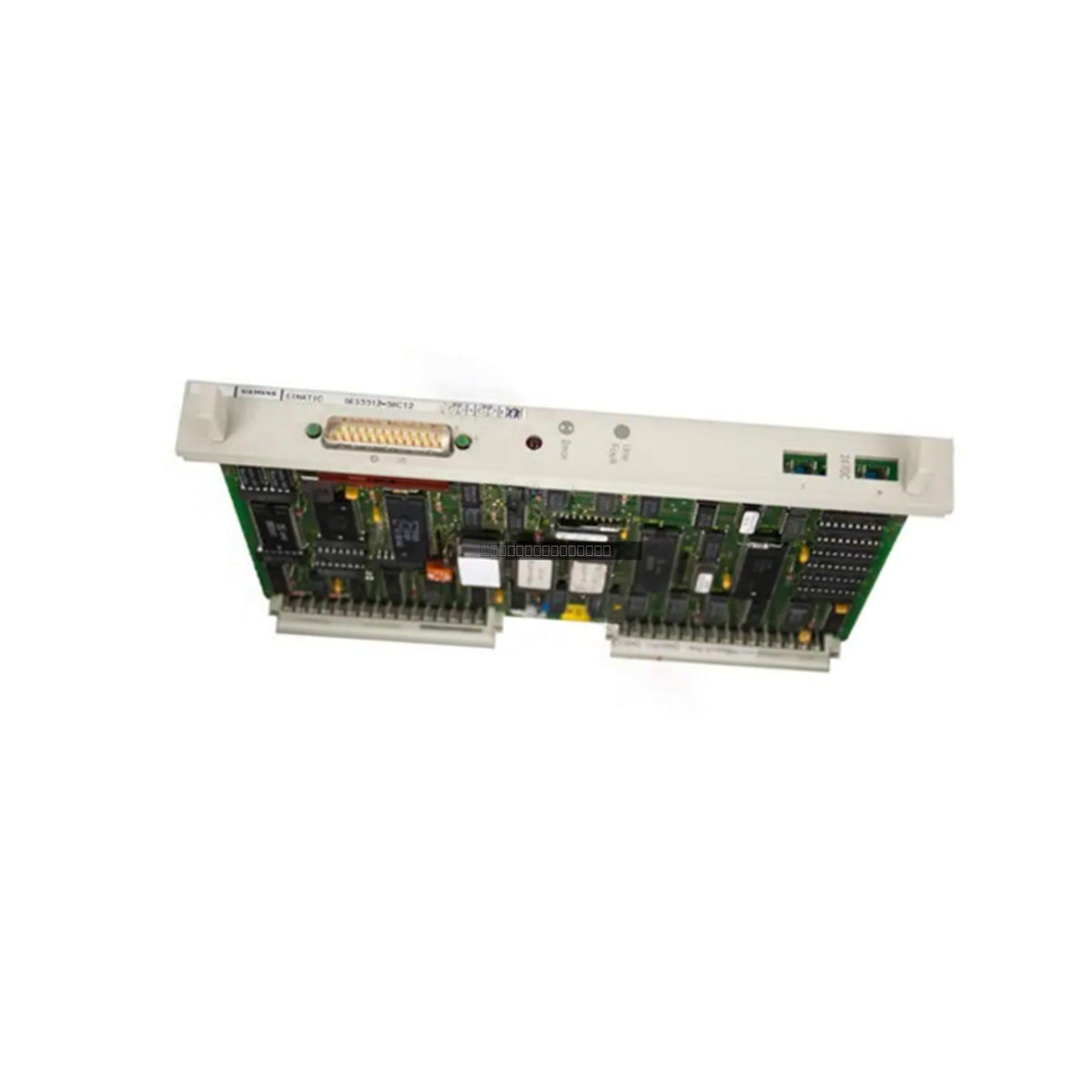

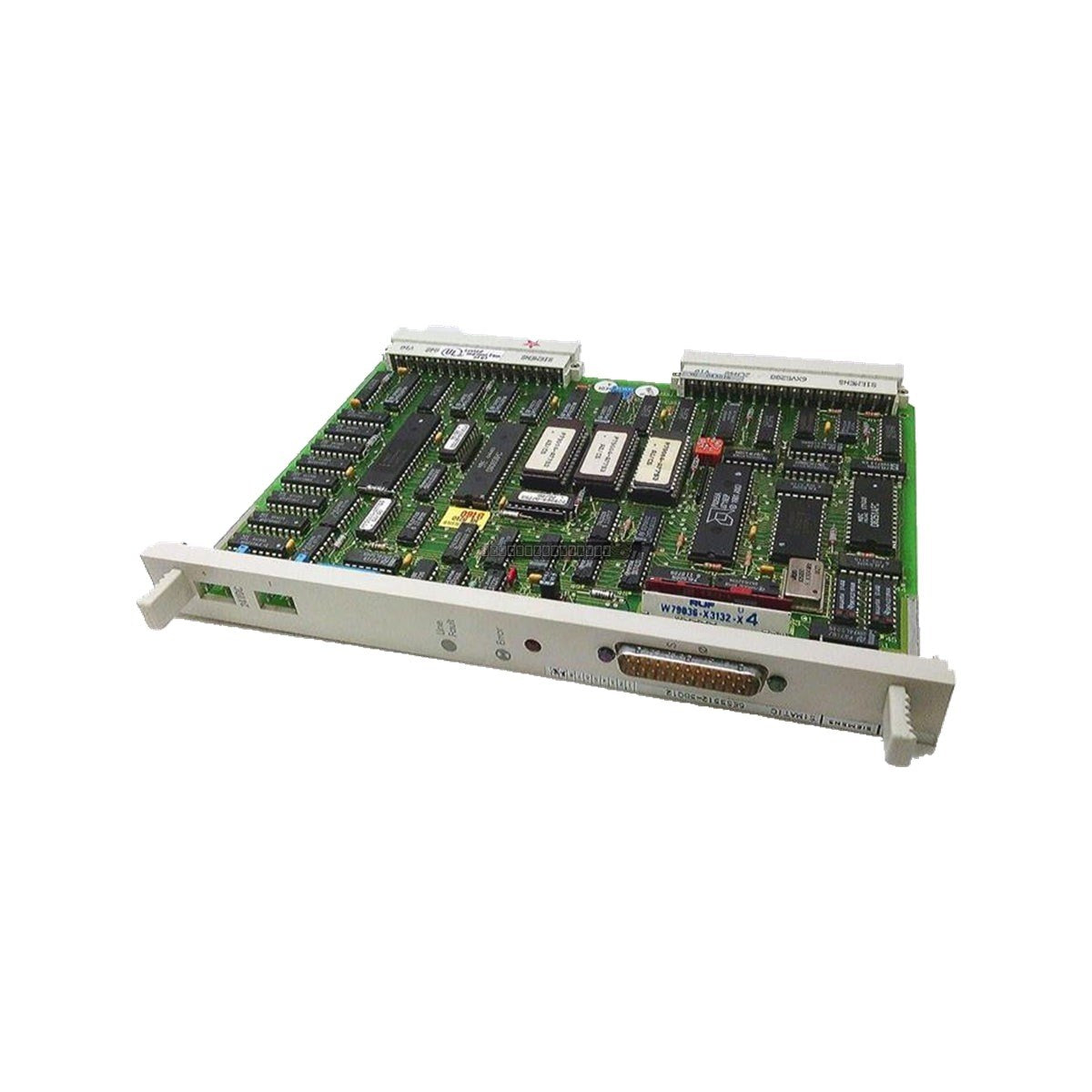

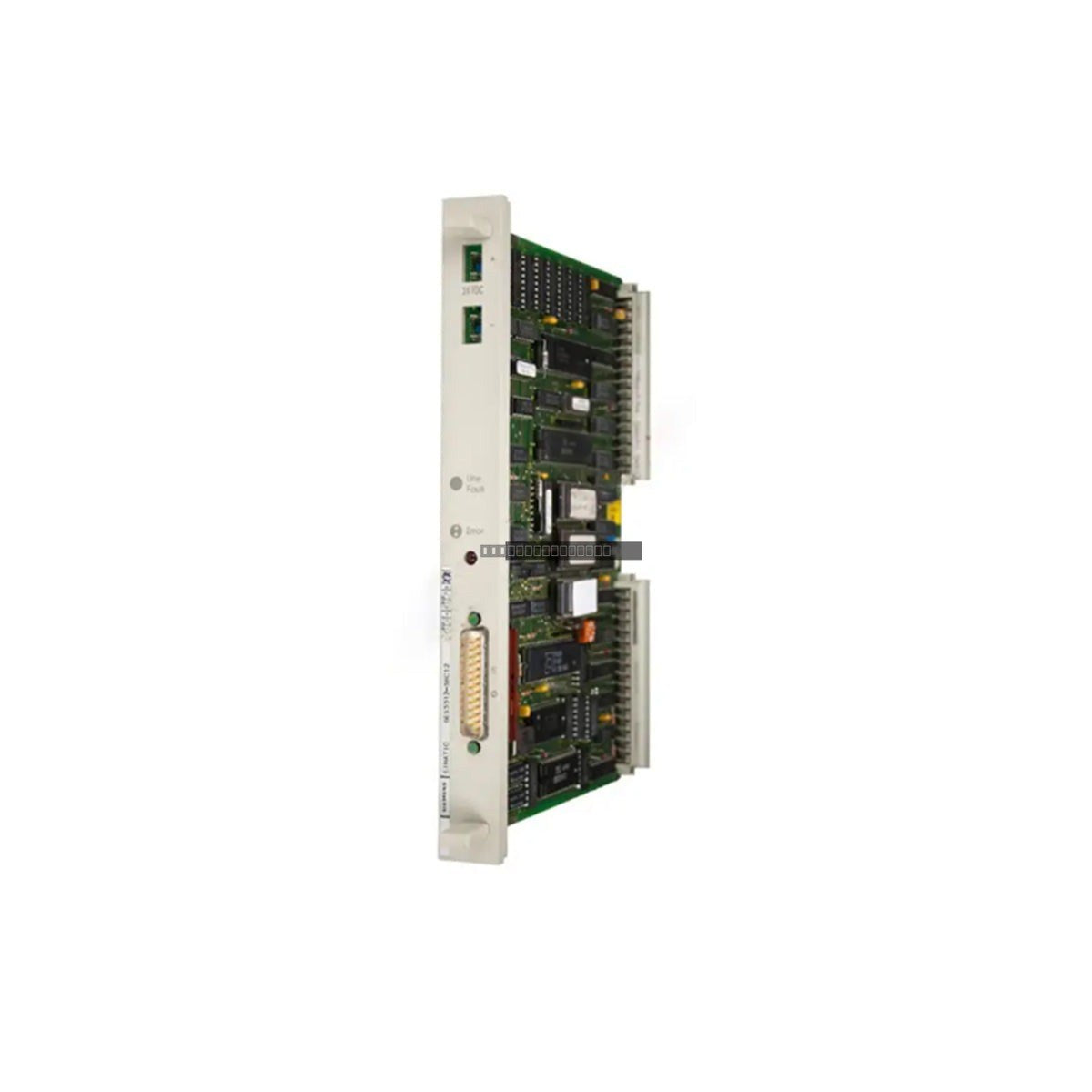

Siemens 6ES5512-5BC12 Simatic S5 AS512 Drive Interface Module

Description

The Siemens 6ES5512-5BC12 is a dedicated AS512 drive interface module designed for integration within the legacy Simatic S5 programmable logic controller (PLC) architecture. This board serves as a specialized communication and control bridge, facilitating precise data exchange between the central PLC processor and industrial drive systems. By offloading drive-specific communication tasks and real-time signal conditioning, the module ensures high-speed synchronization of velocity, torque, and positioning loops. It is widely utilized in demanding industrial environments, including metal processing lines, mining infrastructure, and power plant auxiliary systems, where it effectively reduces bus latency and prevents synchronization-related process interruptions.

Features

• Optimized for Simatic S5 backplane communication and seamless rack integration.
• Features high-speed internal processing to manage complex drive control routines.
• Equipped with robust optical isolation on I/O channels to mitigate EMI and voltage transients from drive circuitry.
• Supports autonomous point-to-point communication for reliable axis control.
• Engineered for high-reliability performance in heavy industrial duty cycles.

Applications

This module is primarily deployed in legacy automation systems requiring high-precision motor control. Typical applications include:

• Automated metal rolling mills and finishing lines.
• Mining hoist control and material handling systems.
• Power generation cooling and pump drive synchronization.
• Complex multi-axis motion control loops within legacy S5 environments.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is fully disconnected before inserting or removing the module to prevent electrical damage.
• Verify that the module is correctly seated in the designated S5 backplane slot and that all locking mechanisms are engaged.
• Use shielded cabling for all external drive signal connections to maintain signal integrity and noise immunity.
• Ensure adequate ventilation within the control cabinet to maintain operating temperatures below 55 deg C.
• Follow standard ESD (Electrostatic Discharge) mitigation practices during handling to protect sensitive internal circuitry.

FAQ

Does this module require external power?

The module receives its primary operating power directly from the Simatic S5 backplane bus, with a nominal current draw of 0.85 A.

Is this module compatible with newer S7 systems?

No, the 6ES5512-5BC12 is specifically engineered for the Simatic S5 architecture and is not directly compatible with S7-series PLC systems without specialized migration hardware.
