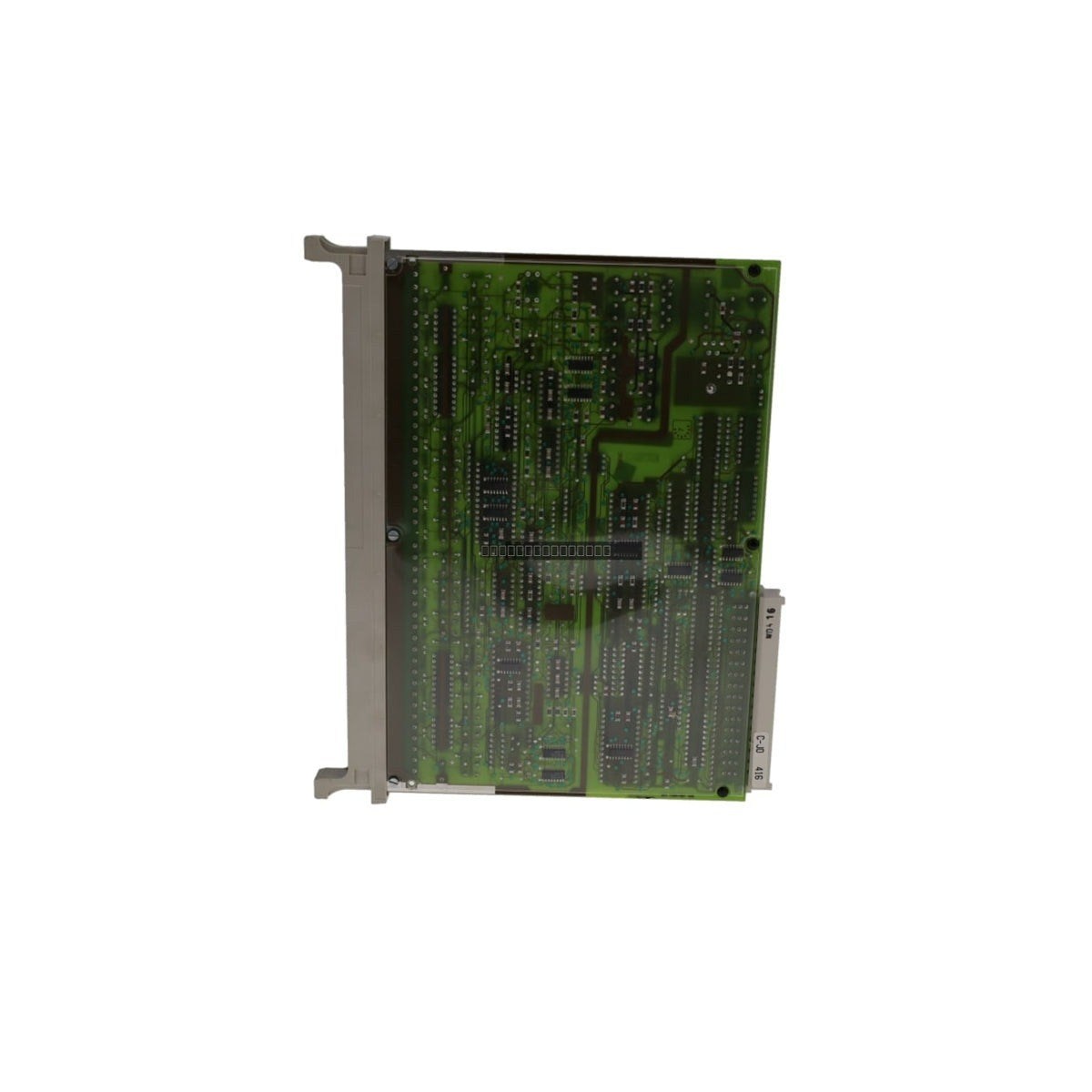

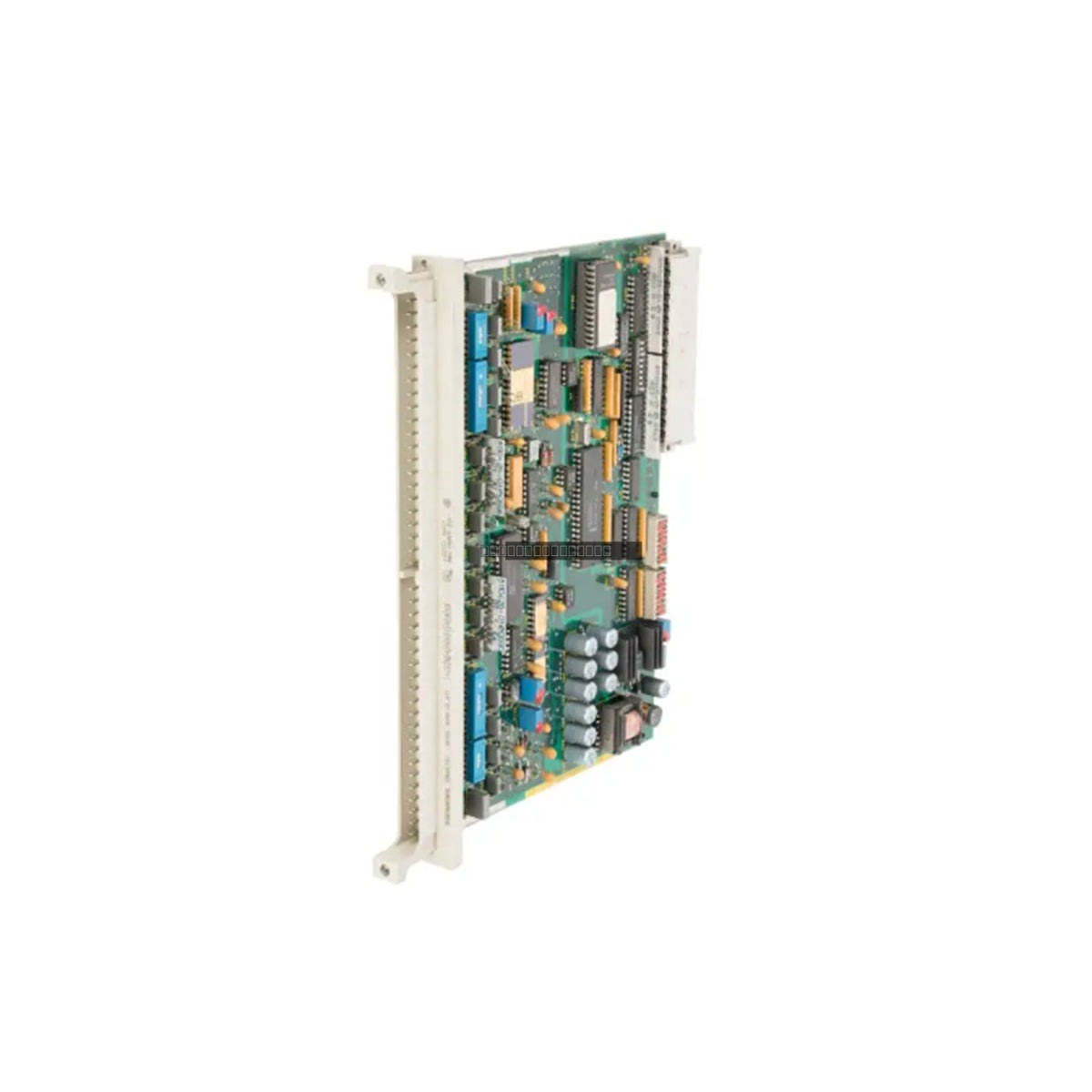

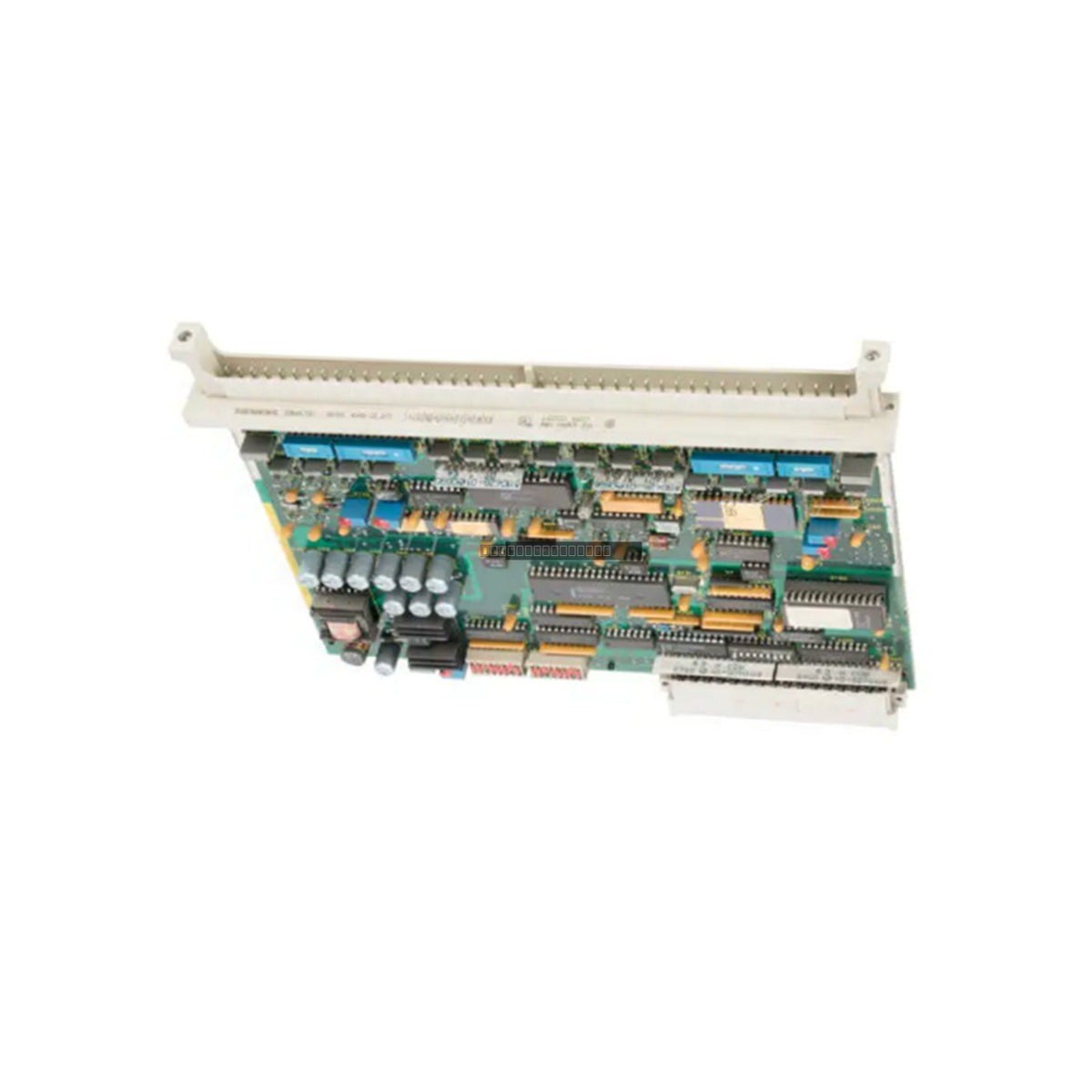

The Siemens 6ES5466-3LA11 is a floating (galvanically isolated) analog input module designed for integration within the SIMATIC S5 automation family. It is compatible with S5-115U/H/F, S5-135U, and S5-155U/H PLC systems, providing reliable signal acquisition for industrial process control.
Features
Compatible with S5-115U/H/F, S5-135U, and S5-155U/H PLC series.
Configurable for 16 single-ended or 8 differential analog input channels.
Floating design ensures galvanic isolation between input circuits and the PLC internal bus.
Supports a wide range of voltage and current input signals.
Designed for integration in electrically noisy industrial environments.
Applications
Process variable monitoring (temperature, pressure, flow, and level).
Motion and position control systems.
Industrial infrastructure, including water treatment and oil and gas facilities.
Ensure the PLC system is powered down before inserting or removing the module from the rack.
Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI interference.
The module does not provide power to 2-wire transducers; ensure an external power supply is used in series with the loop.
Maintain proper grounding practices to ensure the integrity of the floating isolation barrier.
Ensure adequate ventilation in the cabinet to dissipate the 3 W typical power loss.
FAQ
What is the 6ES5466-3LA11 module?
The 6ES5466-3LA11 is an analog input module used in S5-115U/H/F, S5-135U, and S5-155U/H PLC systems to acquire field analog voltage or current signals.
How many analog inputs does the 6ES5466-3LA11 have?
The module supports 16 single-ended analog input channels or 8 differential analog input channels, depending on the configuration.
What is the input impedance of the 6ES5466-3LA11 module?
For voltage inputs, the input impedance is greater than 10 MΩ; for current inputs, the input loop resistance is 125 Ω.
