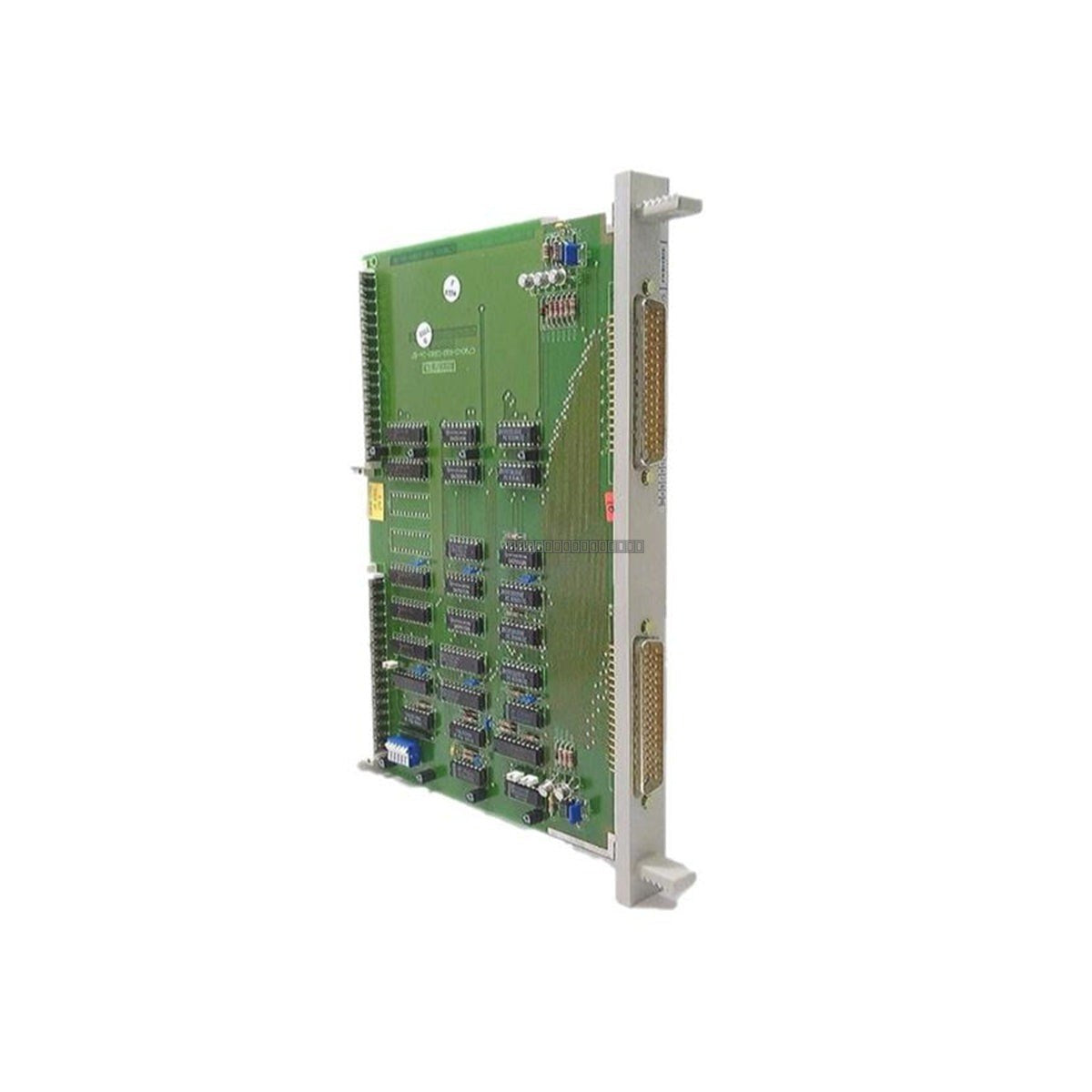

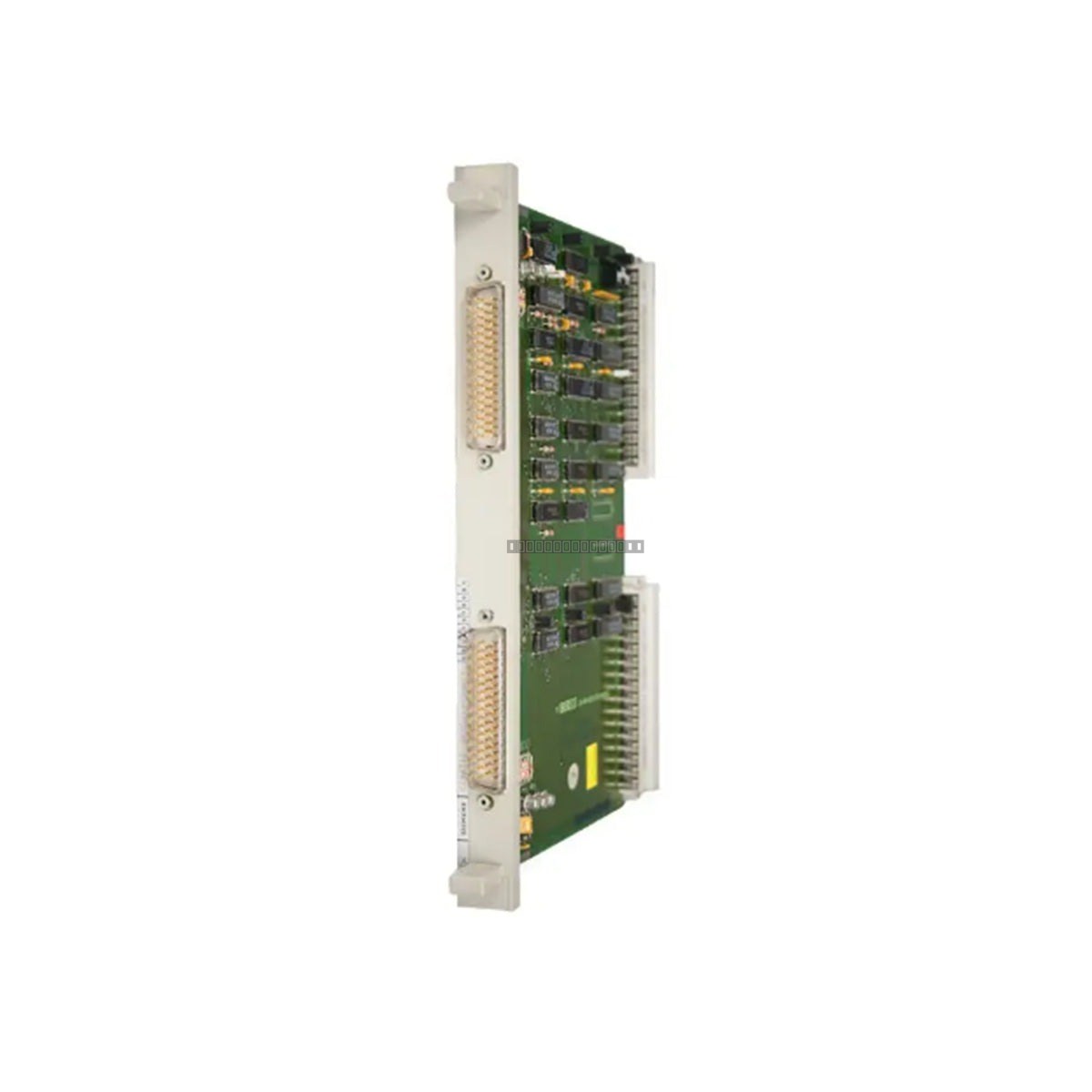

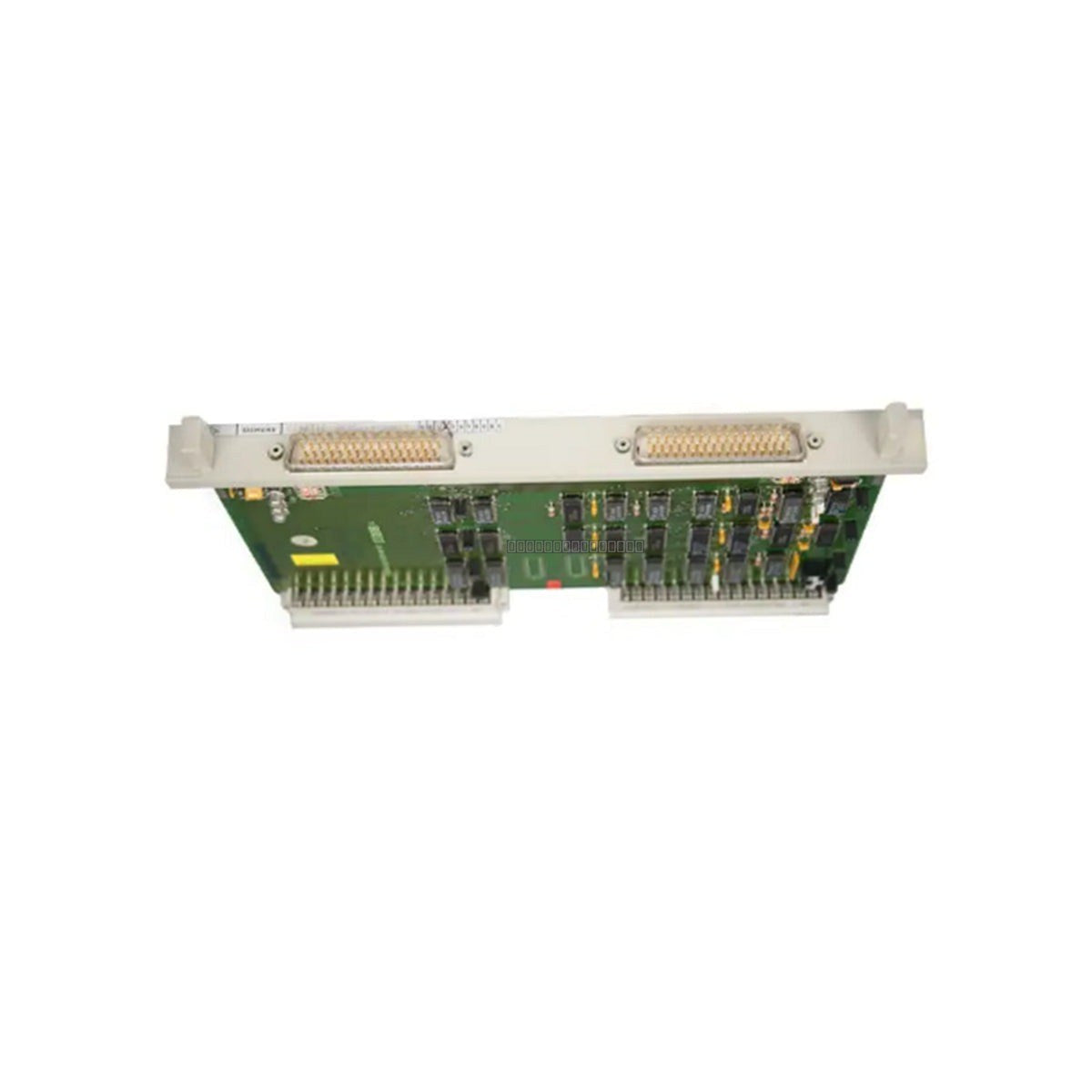

The Siemens 6ES5314-3UA11 is an IM 314 Interface Module designed for the SIMATIC S5-135/155 automation systems. This module serves as a critical component for establishing decentralized connections between expansion units and the central controller. It enables reliable communication over distances of up to 600 meters, facilitating distributed I/O configurations in large-scale industrial environments. Please note that this product was discontinued by the manufacturer as of January 10, 2006.
Features
Designed specifically for SIMATIC S5-135 and S5-155 series PLC systems.
Supports decentralized connection architecture for remote expansion units.
Enables data transmission distances up to 600 meters.
Robust industrial design for integration into standard S5 rack systems.
Applications
This interface module is utilized in legacy Siemens S5 control systems where physical separation between the central processing unit and remote I/O expansion racks is required. It is commonly found in manufacturing plants, power generation facilities, and process automation systems that rely on the S5 architecture.
Technical Specifications
Product Model
6ES5314-3UA11
Module Type
IM 314 Interface Module
System Compatibility
SIMATIC S5-135/155
Max Transmission Distance
600 meters
Weight
0.3 kg
Status
Discontinued (Effective 2006-01-10)
Installation Guidelines
Ensure the PLC system is powered down before installing or removing the IM 314 module to prevent electrical damage or bus errors.
Verify that the module is properly seated in the designated slot of the S5 expansion rack.
Use appropriate shielded cabling for decentralized connections to minimize EMI interference over long distances.
Maintain proper grounding of the rack assembly to ensure signal integrity.
Handle the module using ESD-safe practices to protect sensitive internal circuitry.
FAQ
Is the 6ES5314-3UA11 still available from Siemens?
No, this module was officially discontinued by Siemens on January 10, 2006. It is typically sourced through surplus or refurbished industrial inventory channels.
What is the primary function of the IM 314?
The IM 314 acts as an interface for decentralized connection, allowing the S5 CPU to communicate with remote expansion units located up to 600 meters away.
