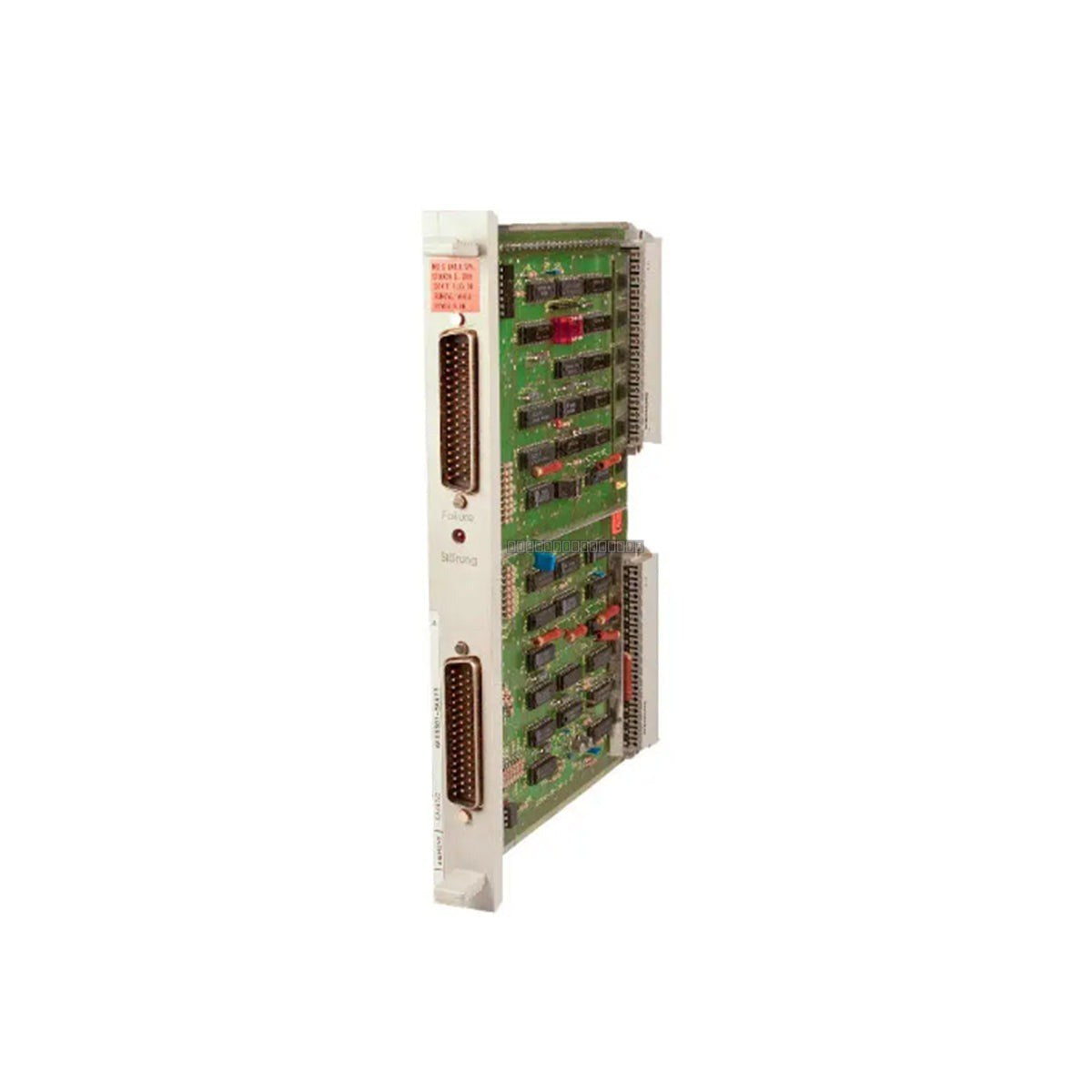

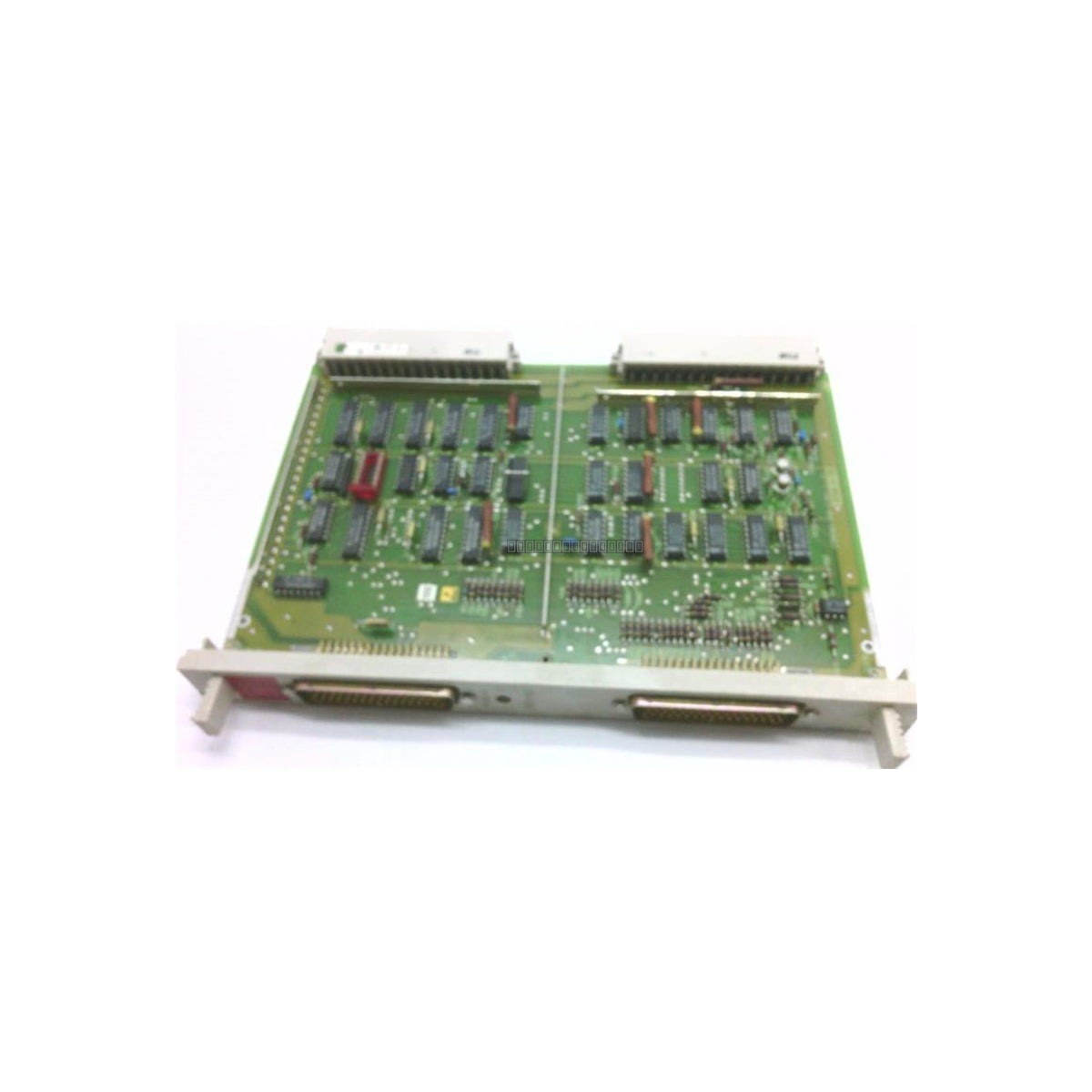

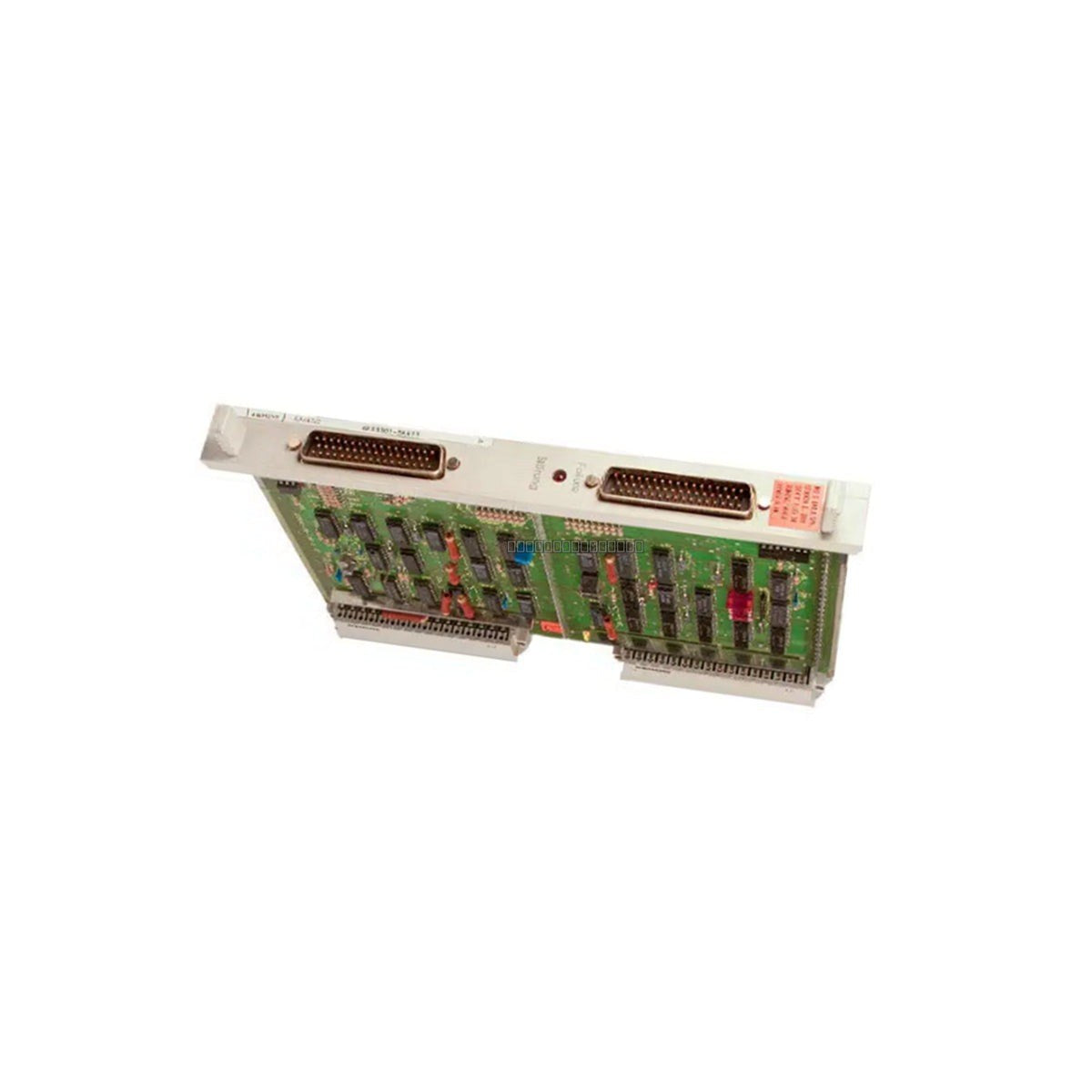

Siemens 6ES5301-5AA13 Simatic S5-130/150 Interface Module

Description

The 6ES5301-5AA13 is an IM 301 interface module designed for legacy Siemens Simatic S5-130 and S5-150 programmable logic controller systems. This expansion module facilitates deterministic point-to-point bus extensions, allowing for the connection of remote expansion subracks to the primary central controller rack. It is widely utilized in heavy industrial sectors, including steel mills, petroleum refining, and mining, to ensure high-speed, low-latency communication between distributed I/O and the central processor.

Features

• Provides high-speed parallel bus synchronization for distributed S5 rack architectures.
• Utilizes differential line drivers to maintain signal integrity against electromagnetic interference (EMI) and common-mode voltage fluctuations.
• Transparent data transfer protocol minimizes processor instruction overhead.
• Integrated diagnostic circuitry monitors cable loop continuity and power supply status.
• Direct-plug mechanical design for standard S5 expansion slots with reliable multi-pin connectivity.

Applications

This module is intended for use in legacy Simatic S5-130 and S5-150 automation systems where remote rack expansion is required. It is a critical component for maintaining system availability in environments requiring robust, deterministic communication between distributed control hardware.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is completely disconnected before inserting or removing the IM 301 module.
• Handle the module by the front plate or edges to avoid electrostatic discharge (ESD) damage to sensitive internal components.
• Verify that the expansion cable is properly seated and secured to the interface connectors to prevent intermittent signal loss.
• Route communication cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
• Confirm that the subrack backplane is properly grounded according to standard Simatic S5 installation practices.

FAQ

What is the primary function of the 6ES5301-5AA13?

The 6ES5301-5AA13 acts as an interface module (IM 301) to extend the internal backplane bus of a Siemens S5-130 or S5-150 PLC to remote expansion racks.

Does this module require software configuration?

The IM 301 operates transparently at the hardware level, mirroring the backplane bus without requiring specific software instruction overhead for data transfer.

What should I do if the module triggers a system interrupt?

A triggered interrupt typically indicates a loss of cable continuity or a power supply failure. Check the physical integrity of the expansion cabling and verify the power status of the remote subrack.
