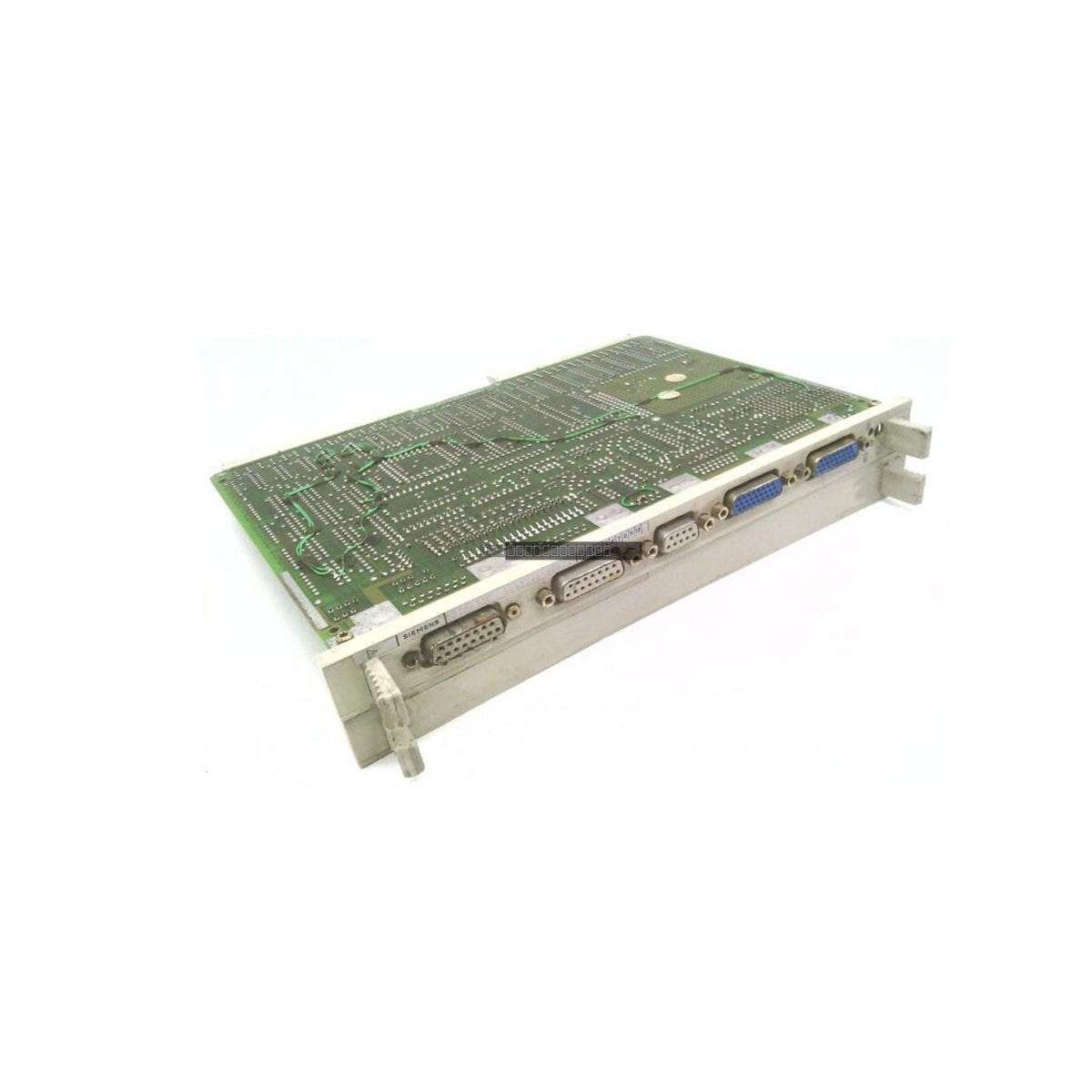

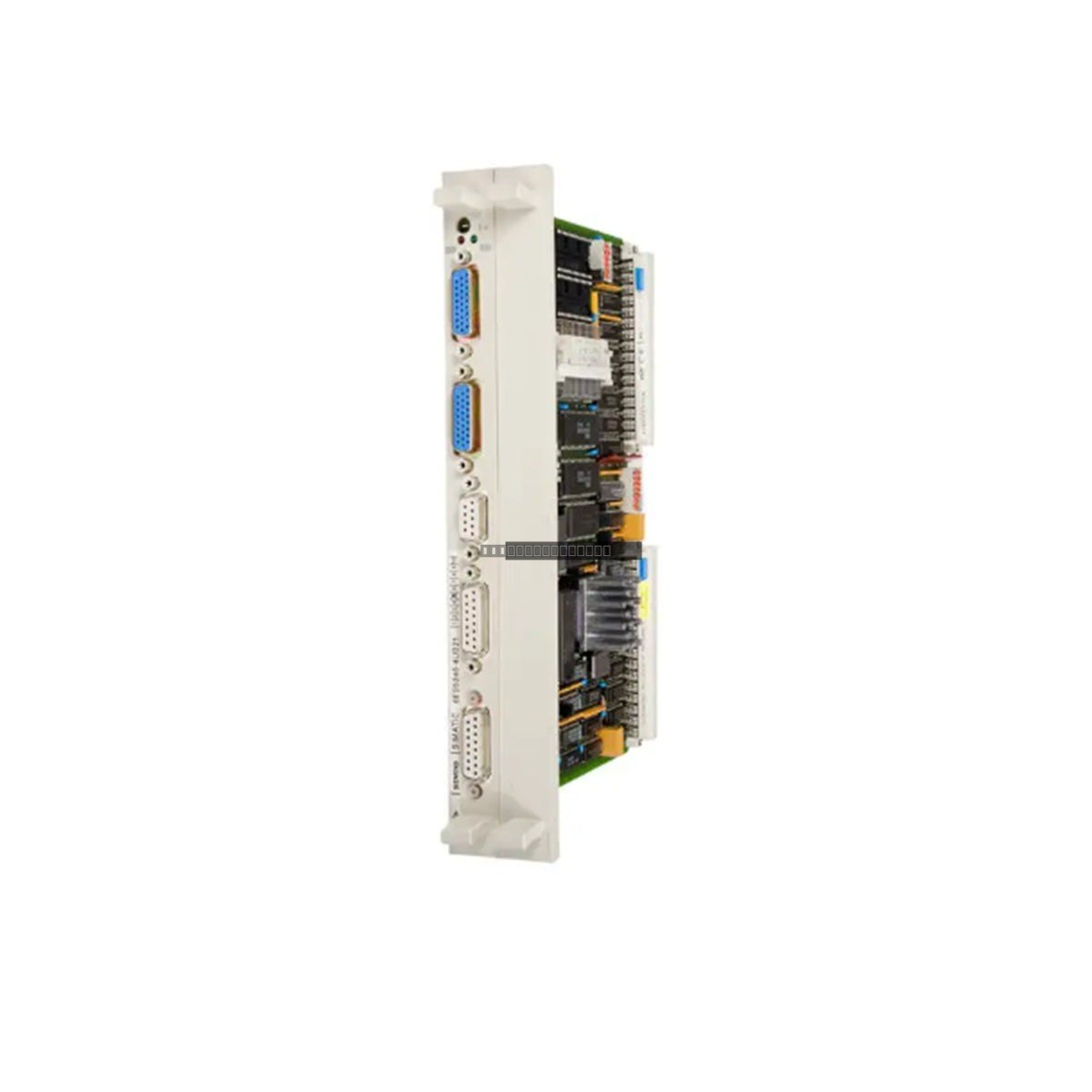

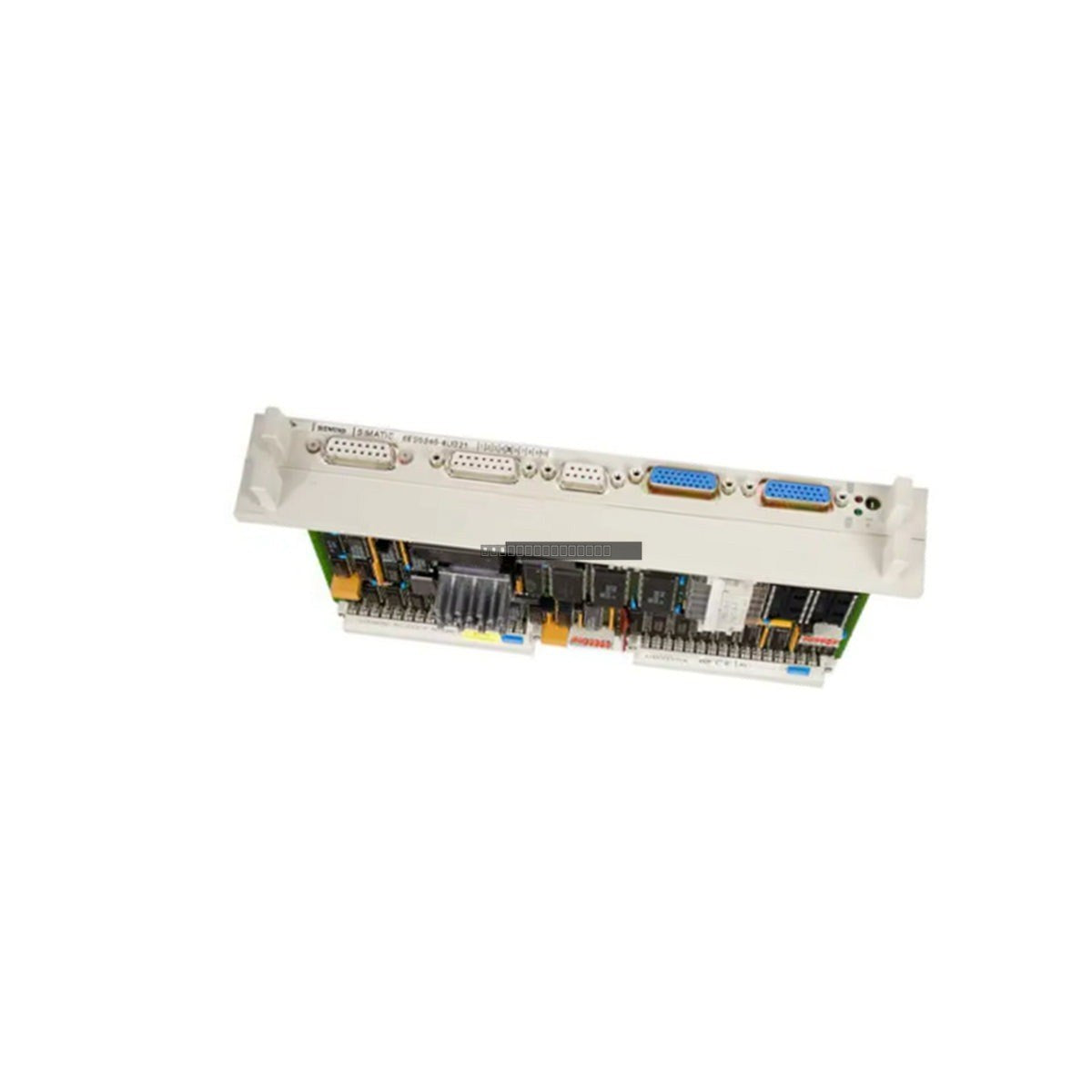

The Siemens 6ES5246-4UB21, also known as the IP 246 module, is an intelligent positioning controller designed for the SIMATIC S5 automation platform. This module provides precise motion control by managing feedback loops for DC motor drives, utilizing digital absolute encoder inputs to ensure accurate positioning in demanding industrial applications.
Features
Dedicated positioning control for DC drive systems.
Supports high-speed digital absolute encoder feedback.
Offloads motion processing from the main CPU to reduce latency.
Passive self-ventilated design eliminates the need for external cooling fans.
Robust architecture engineered for high-vibration and high-EMI industrial environments.
Applications
This positioning module is commonly utilized in heavy-duty industrial sectors, including material handling systems in power generation facilities, metal stamping equipment, and mining hoist control systems where precise motion repeatability is critical for mechanical safety.
Technical Specifications
Model
6ES5246-4UB21
Brand
Siemens
Series
SIMATIC S5 IP 246
Module Type
Positioning Module
Drive Compatibility
DC Drives
Encoder Interface
Absolute Digital
Power Consumption
6.5 W
Operating Temperature
0 to 55 deg C
Installation Guidelines
Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify correct alignment with the backplane connector during insertion; do not force the module into the slot.
Maintain adequate clearance around the module to facilitate passive thermal dissipation.
Route encoder feedback cables away from high-voltage power lines to minimize induced electromagnetic interference.
Handle with standard ESD precautions to protect internal circuitry.
FAQ
Is the 6ES5246-4UB21 compatible with AC drives? No, this module is specifically engineered for DC motor drive feedback loops and absolute digital encoder arrays.
Does this module require external cooling? No, the unit features a passive, self-ventilated design and does not require auxiliary cooling fans.
