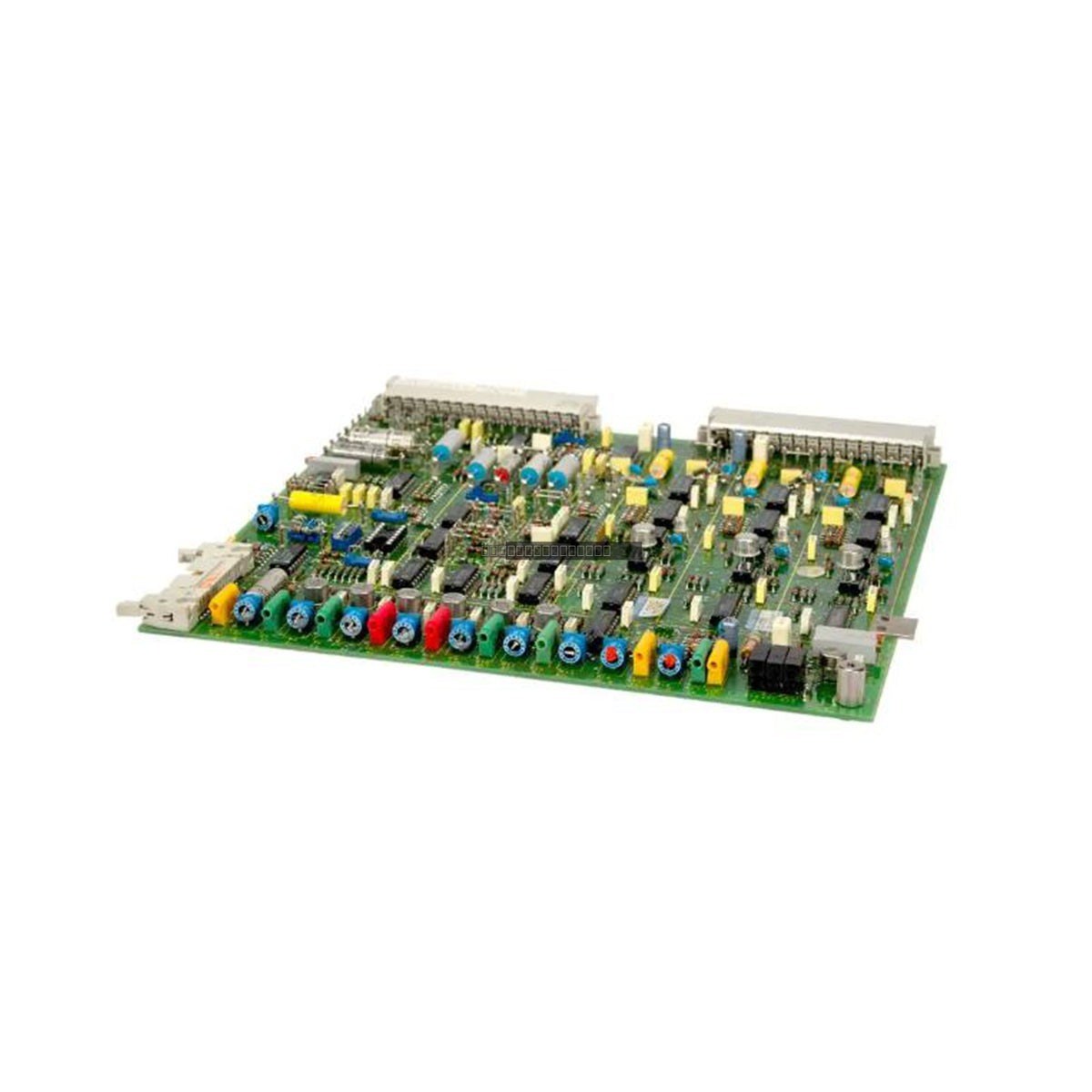

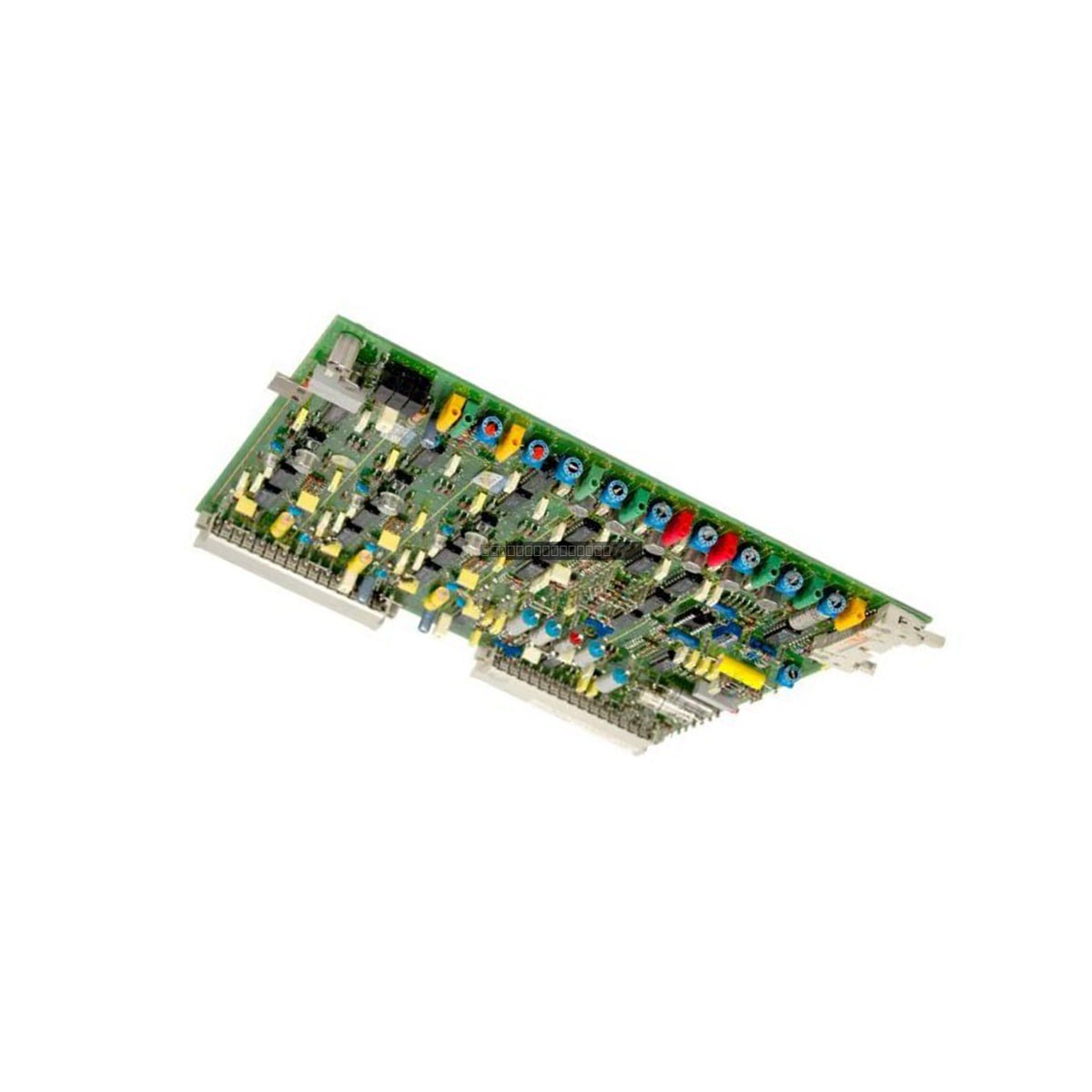

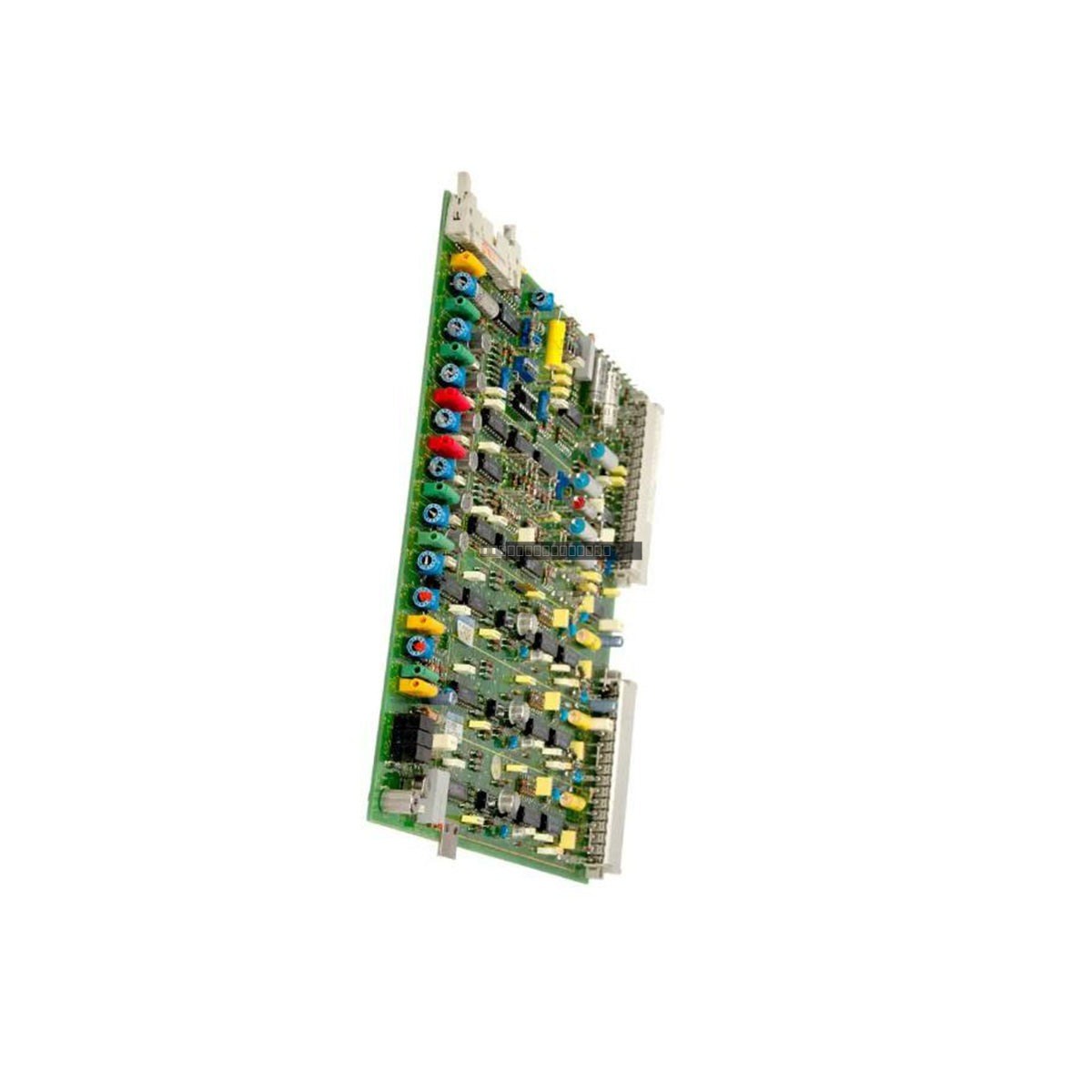

The Siemens 6DM1001-2LA02-2 is a specialized control card designed for integration within Siemens automation and drive control environments. This unit, identified as the A2.02 control card, serves as a critical component in managing signal processing and operational logic for compatible industrial equipment.
Features
Engineered for reliable performance in Siemens industrial control architectures.
Precision-manufactured for seamless compatibility with designated system hardware.
Compact form factor suitable for standard control cabinet mounting.
Applications
This control card is typically utilized in industrial automation systems, drive control assemblies, and power electronics management where precise signal regulation is required. It is intended for professional maintenance and replacement in existing Siemens infrastructure.
Technical Specifications
Model Number
6DM1001-2LA02-2
Component Type
Control Card
Revision/Version
A2.02
Manufacturer
Siemens
Weight
0.4 kg
Installation Guidelines
Ensure the main power supply is disconnected before attempting to install or remove this module from the rack or cabinet.
Handle the card using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to sensitive internal circuitry.
Verify that the card is fully seated in its designated slot and that all locking mechanisms are engaged to ensure a stable electrical connection.
Maintain adequate ventilation within the control enclosure to prevent localized overheating during operation.
Check for proper cable routing to minimize EMI (Electromagnetic Interference) impact on signal integrity.
FAQ
Is the 6DM1001-2LA02-2 compatible with other Siemens series? This card is specific to the A2.02 configuration. Please verify your system's part number requirements before installation to ensure full compatibility with your existing hardware.
What should I do if the unit fails to initialize? First, verify that the card is correctly seated and that the power supply rails are providing the correct voltage. If the issue persists, consult your system's error logs or maintenance manual for specific diagnostic codes related to this control card.
