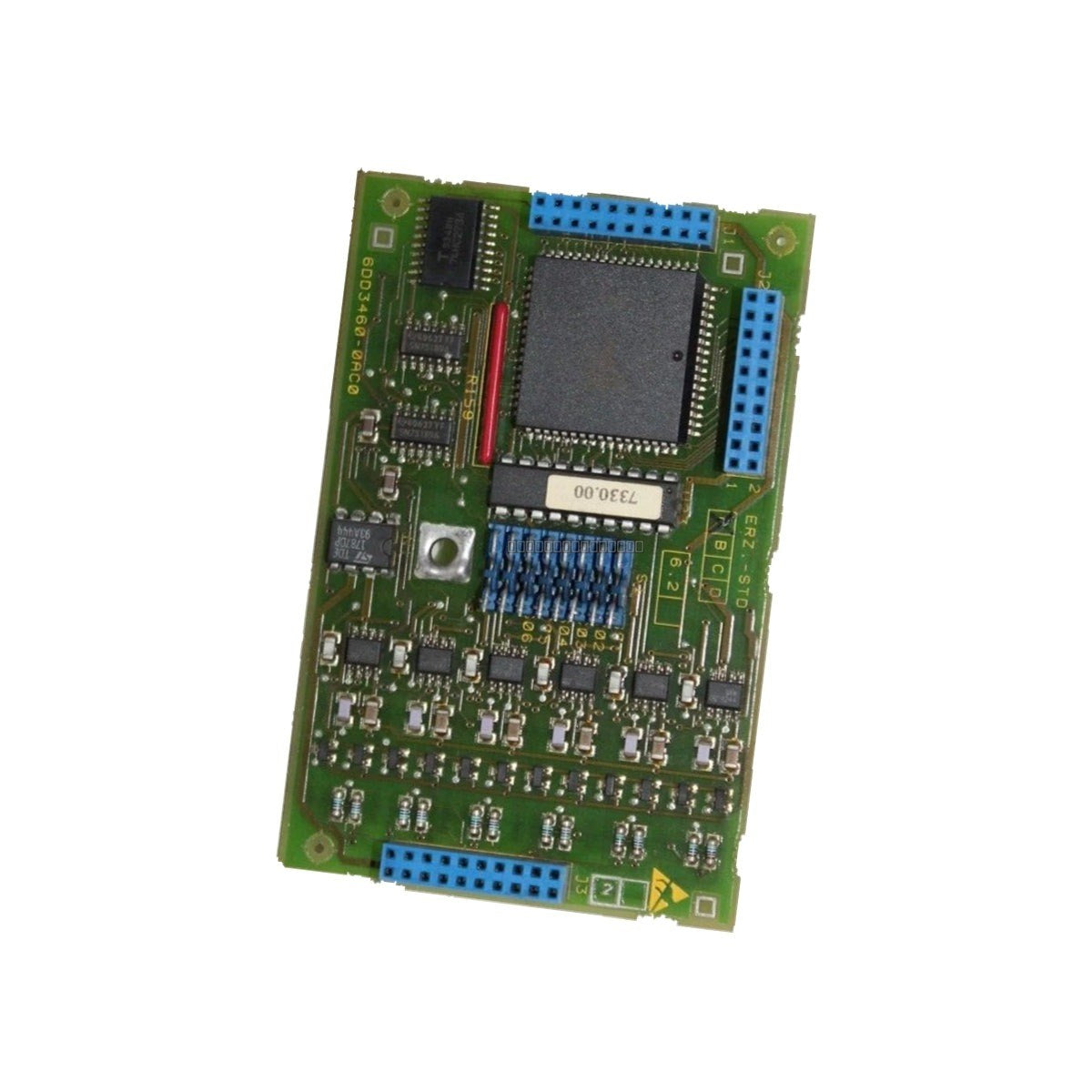

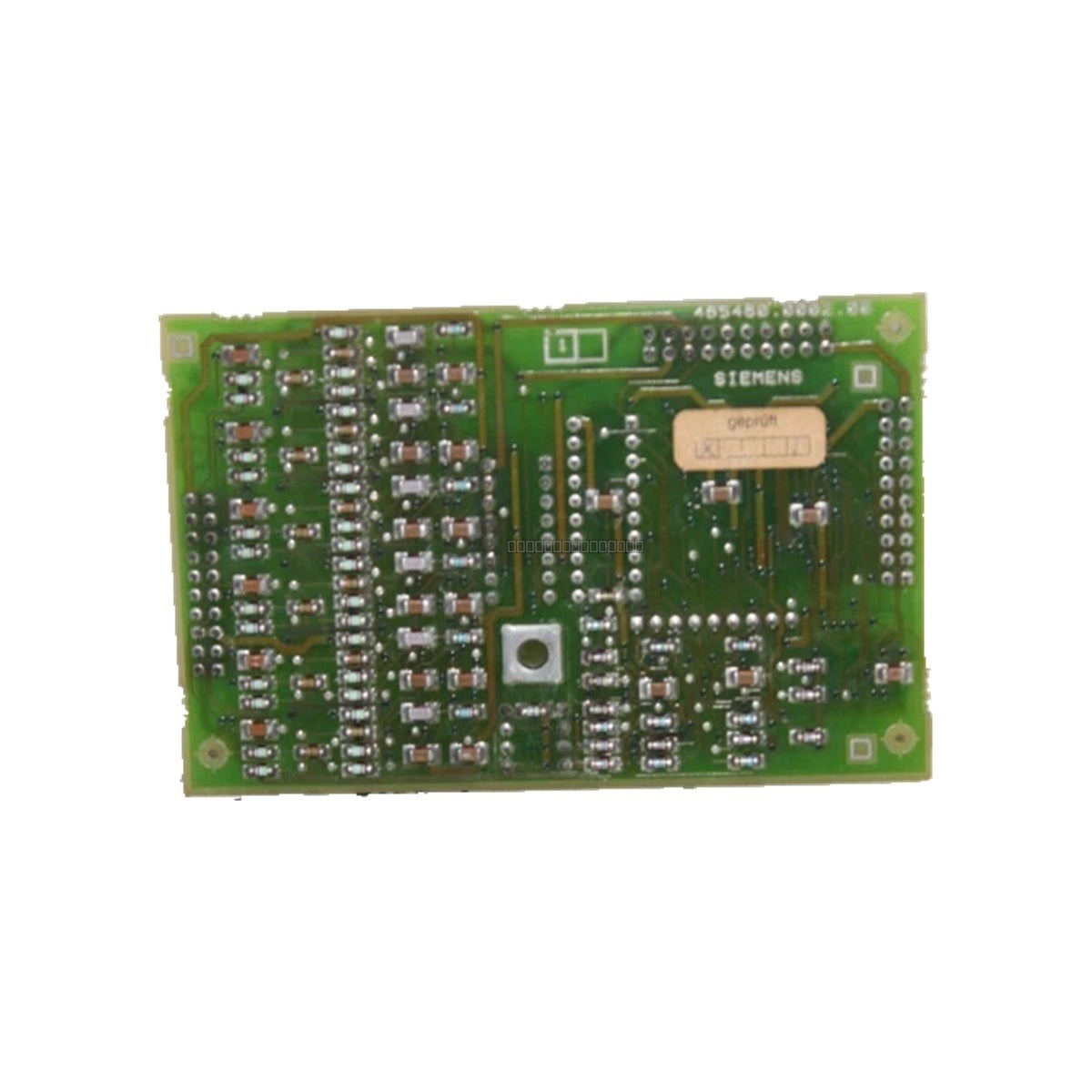

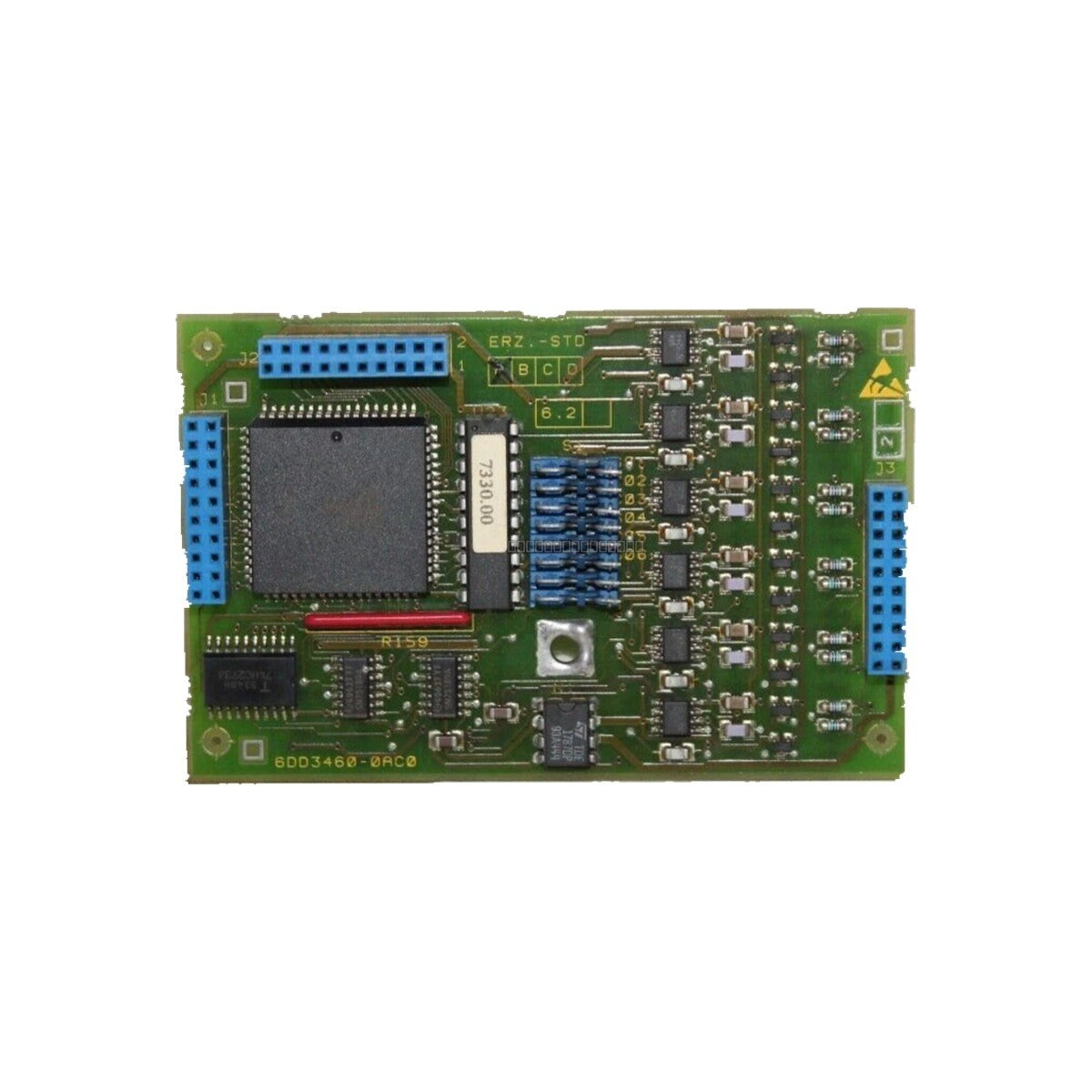

The Siemens 6DD3460-0AC0 is a pulse sensor module designed for the Simadyn D automation system. This incremental encoder module, identified as the SE59 for PT10 submodule memory, is engineered to facilitate two impulse sensing channels. It serves as a critical interface component for high-precision motion and position feedback within industrial control environments.
Features
Designed for Simadyn D system integration
Supports two independent impulse sensing channels
Compatible with PT10 submodule memory configurations
Robust electrical isolation for signal integrity
Compact form factor for high-density rack mounting
Technical Specifications
Product Model
6DD3460-0AC0
Function
Pulse Sensor / Incremental Encoder Module
Power Supply
+5 V DC
Input Threshold
+/- 200 mV
Input Impedance
120 Ohm
Isolation Voltage
500 V DC
Operating Temperature
0 degC to +55 degC
Storage Temperature
-40 degC to +85 degC
Humidity
5 to 95 % RH (non-condensing)
Installation Guidelines
Ensure the Simadyn D rack is powered down before inserting or removing the 6DD3460-0AC0 module to prevent electrical damage.
Handle the module using ESD-safe practices to protect sensitive internal circuitry.
Ensure proper grounding of the module chassis to the system backplane to minimize electromagnetic interference (EMI).
Route signal cables away from high-voltage power lines or heavy inductive loads to maintain signal accuracy.
Verify that the +5 V power supply is stable and within specified tolerances before operation.
FAQ
What is the primary function of the 6DD3460-0AC0?
This module acts as an incremental encoder interface for the Simadyn D system, allowing for the processing of two impulse sensing inputs.
Is this module compatible with other Simadyn D submodules?
The 6DD3460-0AC0 is specifically designated as the SE59 module for PT10 submodule memory applications.
What are the environmental requirements for this module?
The module is designed for standard industrial environments with an operating temperature range of 0 degC to 55 degC and requires non-condensing humidity levels up to 95%.
