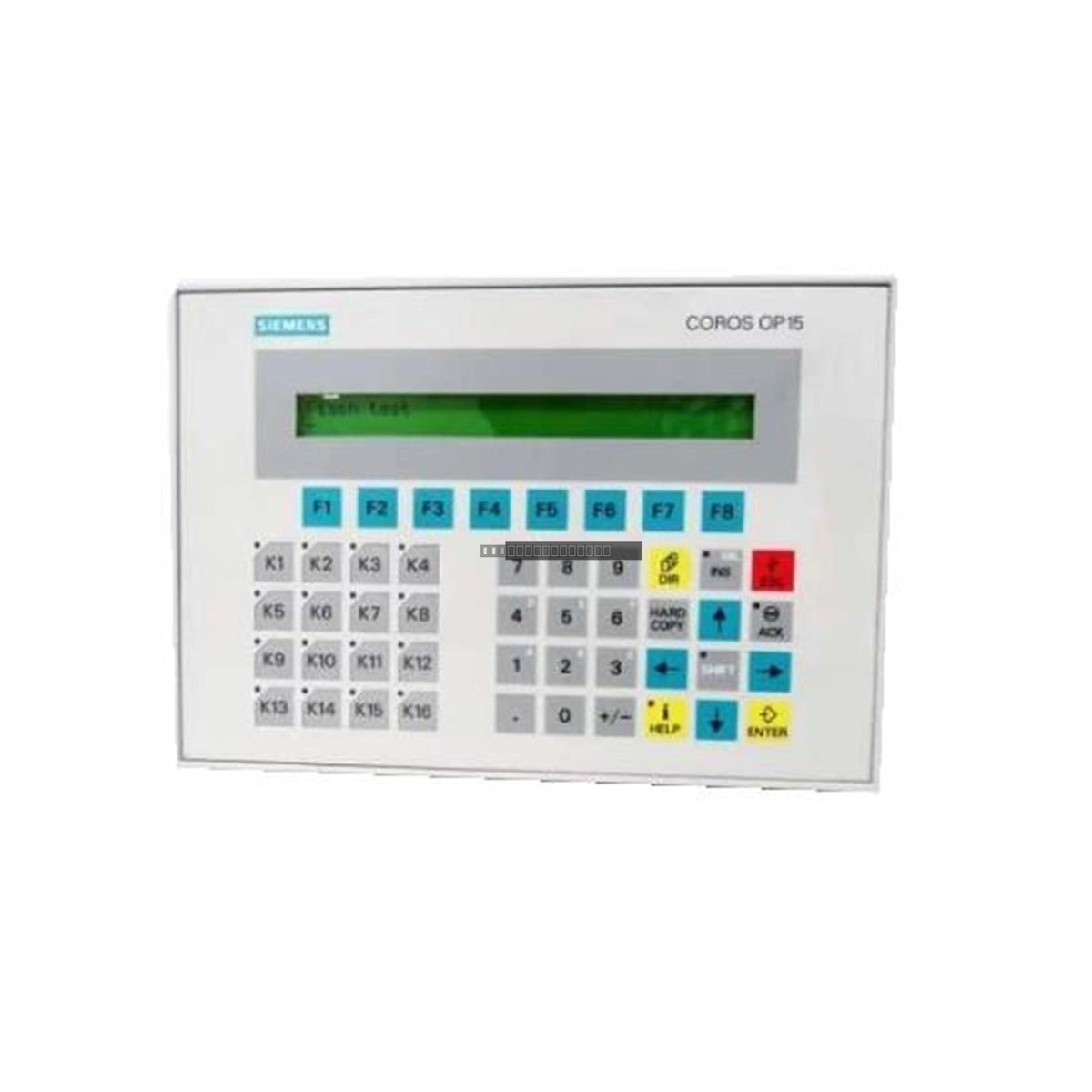

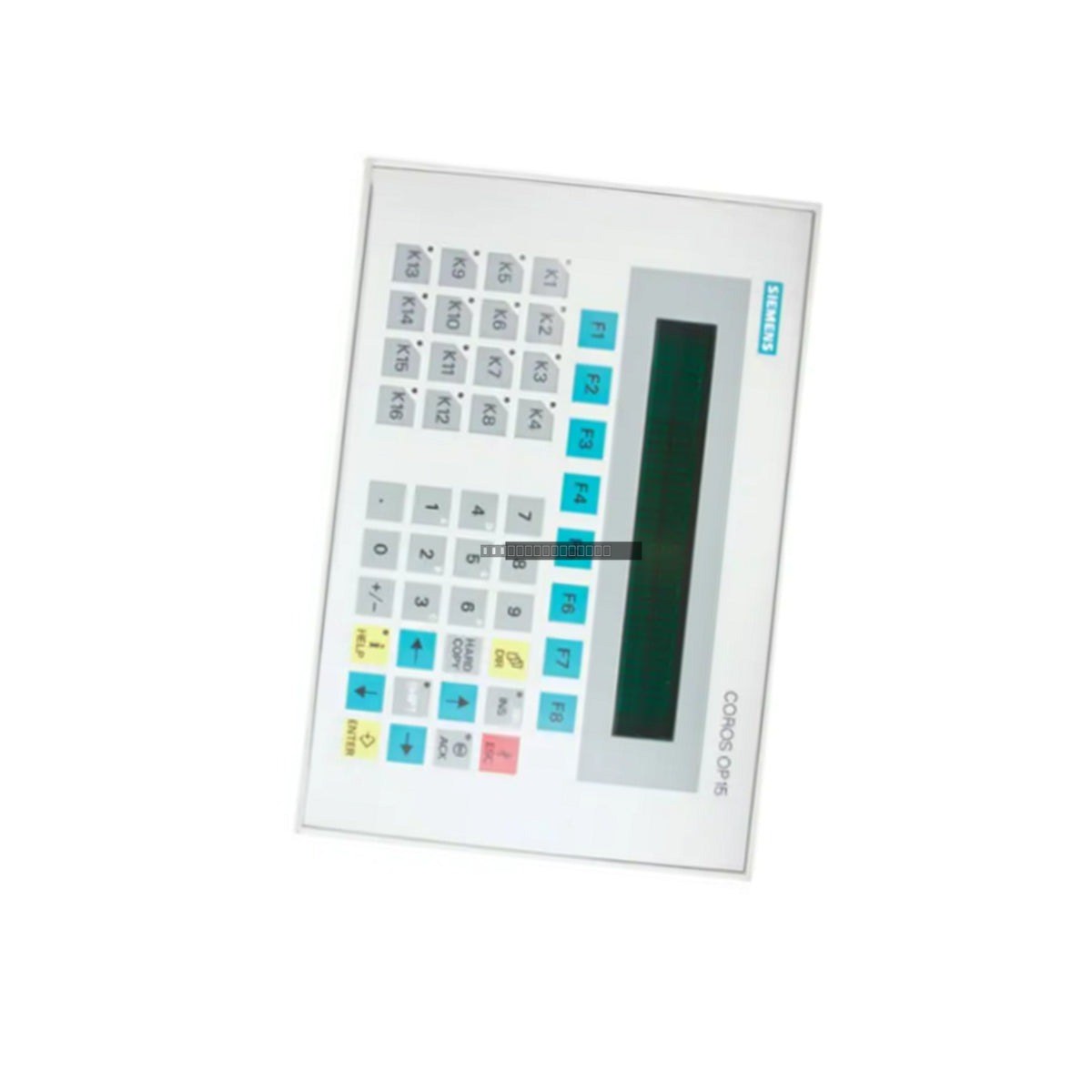

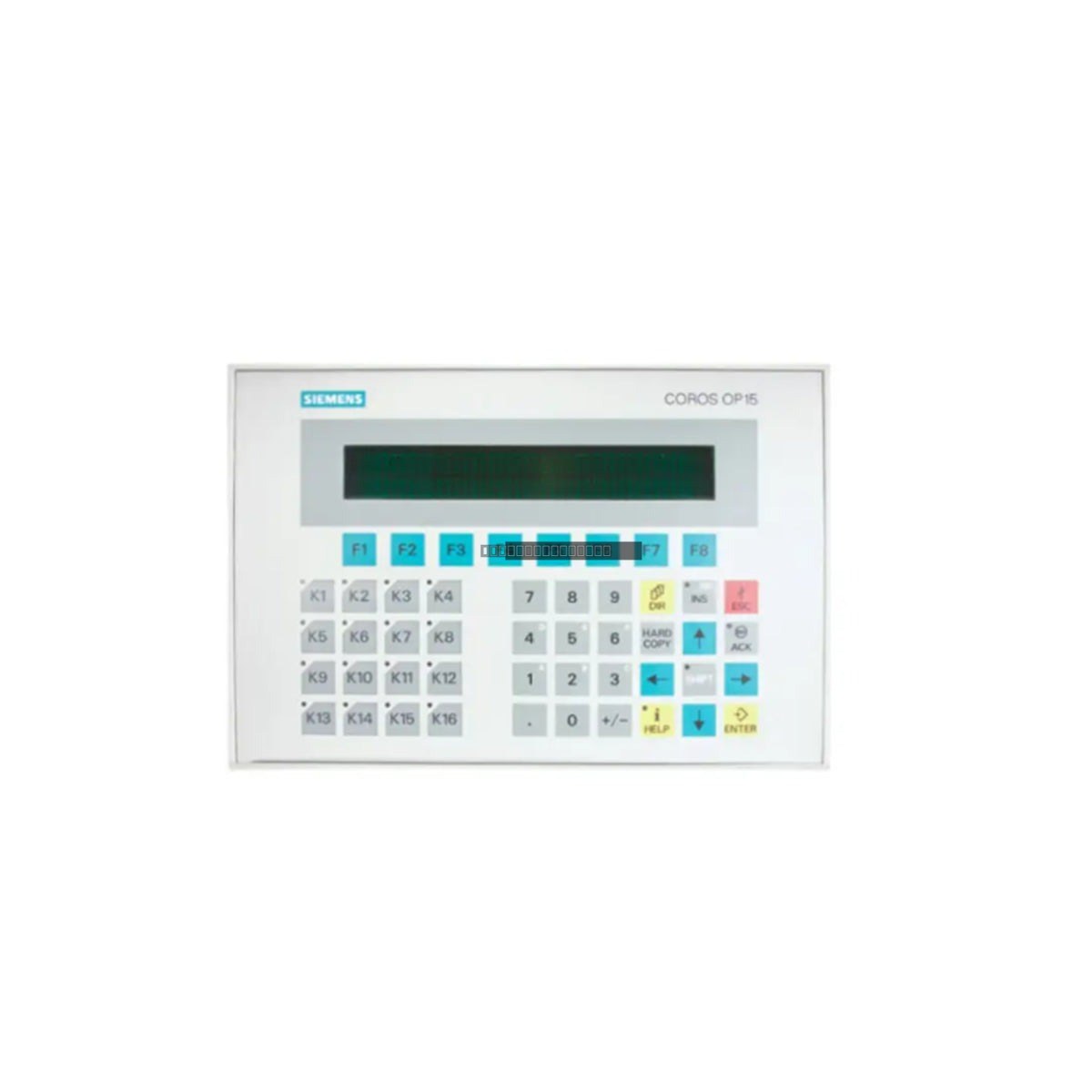

The Siemens 6AV3515-1EB30-1AA0 is a robust Simatic HMI OP15/A1 operator panel engineered for reliable local control and monitoring in legacy industrial automation systems. This unit provides a clear, high-contrast 2-line by 40-character LCD display and integrates 256 KB of internal memory to manage local screen configurations and diagnostic messaging. It is a standard solution for plant-floor environments where direct operator interaction with S5 or S7 controllers is required to maintain process stability and monitor system health.
Features
Tactile, chemical-resistant membrane keypad for reliable input in harsh industrial settings.
Flexible communication architecture featuring dual TTY/V.24 (RS232) ports and one RS422/RS485 port.
Supports direct connectivity to Simatic programmable logic controllers for deterministic data exchange.
Compact, ruggedized housing designed for panel-mount integration in control cabinets.
Efficient power profile with a typical consumption of 9.5 W at 24 VDC.
Applications
This operator panel is widely utilized in heavy industrial sectors, including chemical processing, power generation, and aggregate mining. It serves as a primary interface for displaying process alarms, viewing system variables, and adjusting setpoints at the machine level, helping to reduce downtime by facilitating rapid operator response to system alerts.
Technical Specifications
Model
6AV3515-1EB30-1AA0
Series
Simatic HMI / Coros OP15
Display
2 lines x 40 characters
Memory
256 KB
Communication
2 x TTY/V.24, 1 x RS422/485
Input Voltage
24 VDC
Power Consumption
9.5 W
Operating Temperature
0 to 50 deg C
Storage Temperature
-20 to 60 deg C
Installation Guidelines
Ensure the panel is mounted in an enclosure that provides adequate protection against dust and moisture.
Always disconnect power before performing any wiring or maintenance on the terminal.
Use shielded communication cables for serial connections to minimize EMI interference in noisy industrial environments.
Verify that the supply voltage is stable at 24 VDC to prevent intermittent communication errors.
Maintain proper clearance around the unit to ensure adequate ventilation and prevent overheating during continuous operation.
FAQ
Is this unit compatible with modern S7-1500 controllers? This panel is primarily designed for legacy S5 and S7 interface environments. Compatibility with newer systems may require specific protocol converters or legacy communication modules.
Does the unit require external software for configuration? Yes, the OP15/A1 series requires the appropriate Siemens configuration software compatible with the Coros OP series to load screens and message registers.
