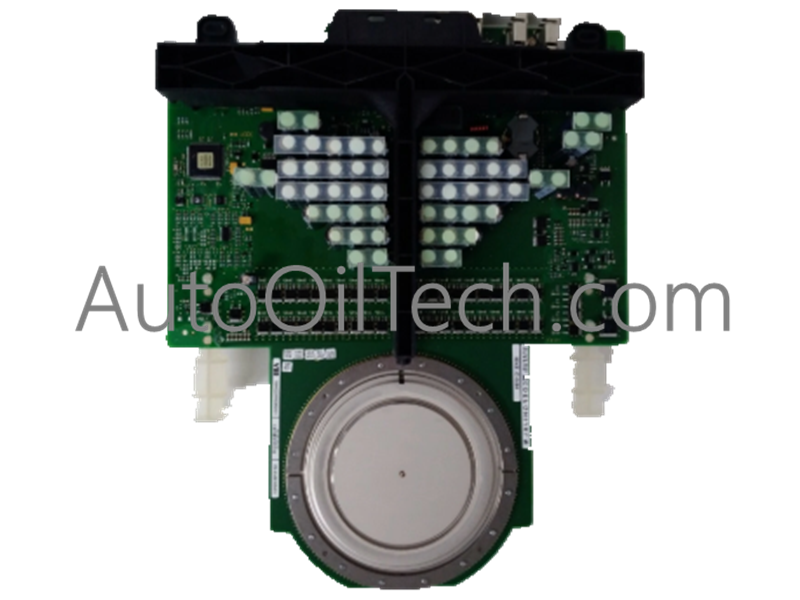

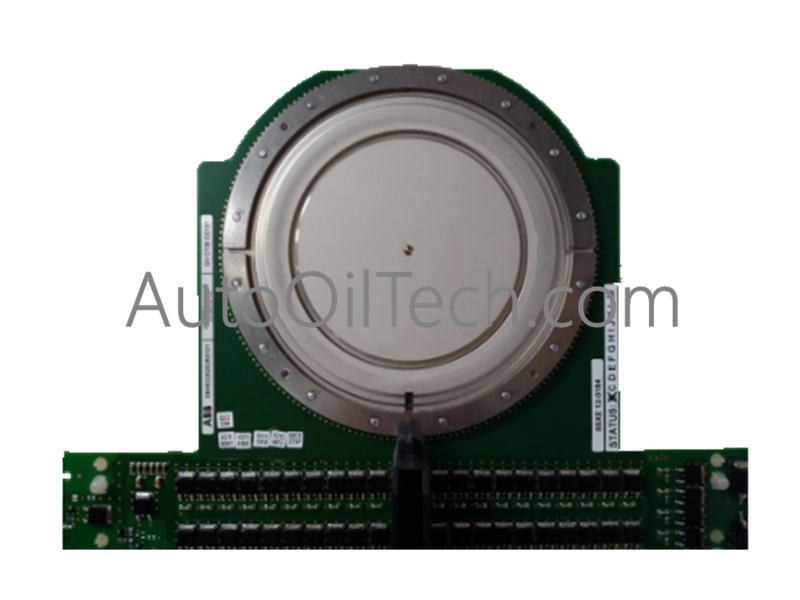

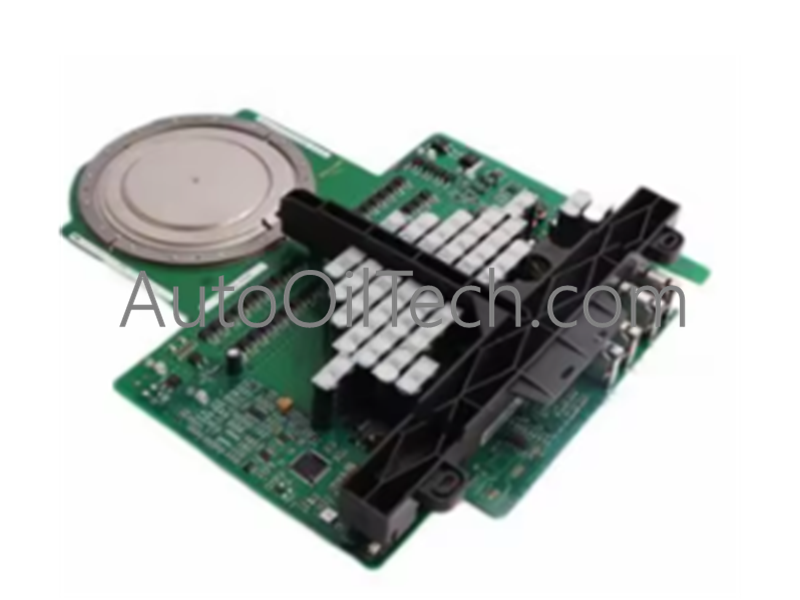

The ABB 5SHX1445H0002, also cataloged as the 5SHX1445H0002 IGCT Module, operates as a dedicated hardware component for high-voltage semiconductor switching within industrial power conversion platforms.
Hardware Specifications
Parameter
Specification
Model
5SHX1445H0002
Brand
ABB
ABB Model Number
3BHL000387P0101
Origin
Switzerland
Product Type
IGCT Modules
Voltage Rating
4500 V
Current Rating
1445 A
Turn-Off Capability
Snubberless
Cooling Method
Water-cooled
Clamping Mounting Force
40 kN
Weight
2.9 kg
Dimensions
Standard press-pack housing dimensions for 4500 V IGCT
Operating Temp
-40 to 125 deg C wafer junction temperature range
Power Consumption
Integrated gate unit logic dissipation up to 100 W
Profinet / EtherNet/IP Deterministic Networks and Driver Integration
The module implements an integrated gate driver board that connects to the central control rack through dedicated fiber optic links to achieve absolute galvanic isolation. This arrangement ensures full firmware flash compatibility across ABB ACS drive system control layers, allowing synchronous gate command execution across high I/O density scaling frameworks. Real-time switching routines interface smoothly over Profinet or EtherNet/IP deterministic networks, delivering sub-microsecond pulse distribution velocity. The internal gate drive electronics monitor power rails continuously, eliminating processing latency and safeguarding the silicon wafer against voltage transients during dynamic load changes.
Frequently Asked Questions
Q: What are the engineering constraints regarding the mounting force of this module?
A: The hardware requires a precise mechanical mounting force of exactly 40 kN. This clamping force must be applied uniformly to establish parallel contact resistance profiles across the internal free-floating silicon layers and to maintain proper thermal transfer to the water cooling blocks.
Q: Does this high-voltage module require an external snubber circuit assembly?
A: No. The integrated gate-commutated thyristor architecture is explicitly optimized for snubberless turn-off operation at full rated 4500 V voltage and 1445 A current thresholds, which reduces peripheral component count and simplifies internal cabinet assembly.
