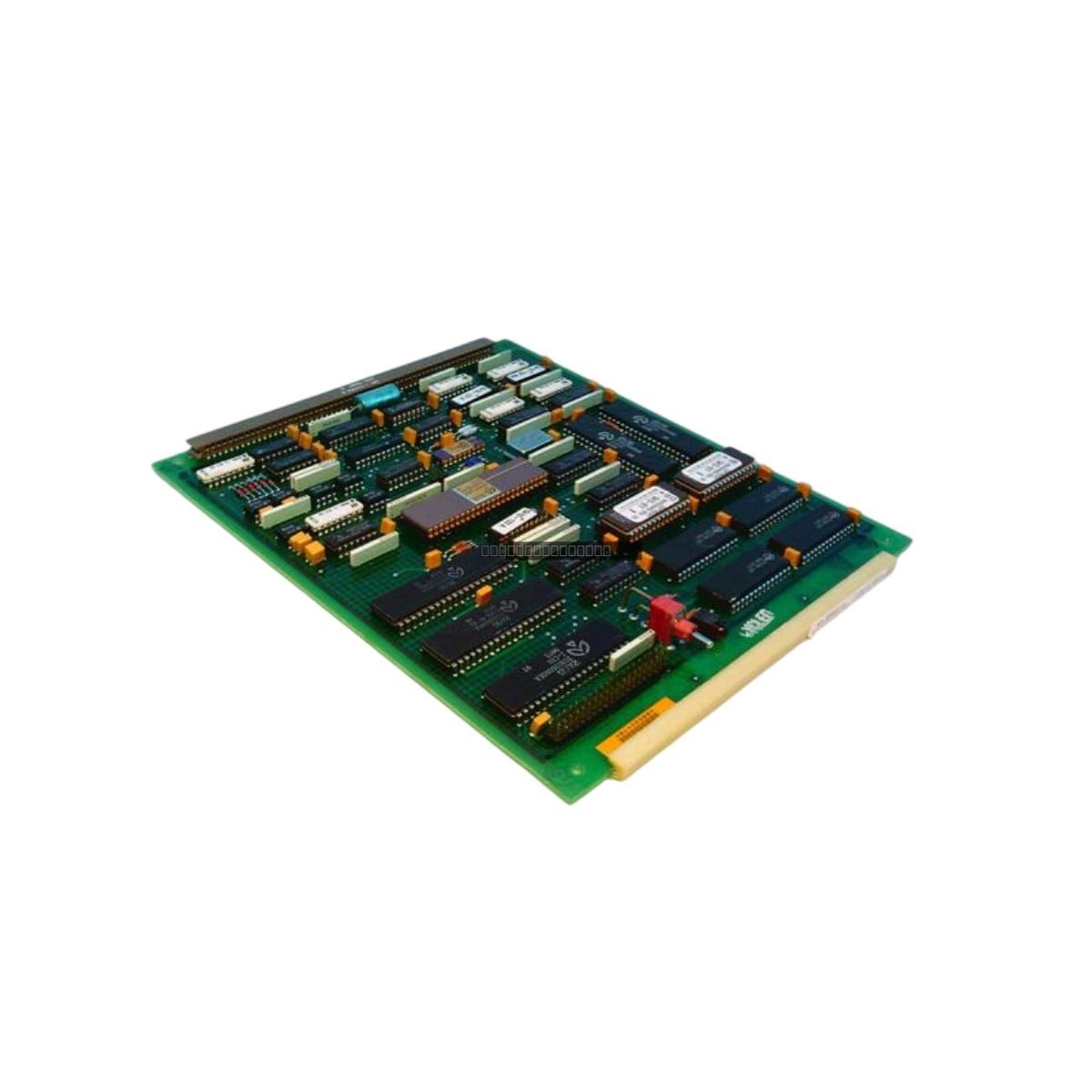

Woodward 5463-473 Smart I/O Module PC Board

Product Overview

The Woodward 5463-473 is a specialized Smart Input/Output (SIO) module designed for integration within Woodward industrial control systems. Engineered for high-reliability environments, this PC board-level component facilitates precise data acquisition and signal processing. It is frequently deployed in mission-critical applications, including industrial gas turbine management, thermal power generation, and offshore oil platform control systems. The module is pre-configured with Version 4.4 Operating System (OPSYS) firmware, ensuring efficient logic execution and stable communication within the control loop.

Features

• Integrated on-board toggle switch for manual hardware configuration and diagnostic overrides.
• Male pin header interface for secure, high-speed connection to system backplanes.
• Optimized for low-latency I/O scanning and high-speed signal processing.
• Designed for seamless compatibility with Woodward Netcon and associated chassis architectures.
• Robust PCB construction suitable for demanding industrial environments.

Applications

This module serves as a critical interface component in complex automation setups where high-speed data integrity is required. Typical installations include:

• Gas turbine control and monitoring systems.
• Thermal power plant automation.
• Offshore oil and gas processing facilities.
• Legacy Woodward control system maintenance and upgrades.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module to prevent electrical damage.
• Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
• Verify that the male pin header is correctly aligned with the chassis slot before applying pressure to seat the module.
• Ensure the environment remains within the specified 0 to 60 deg C operating range to maintain module longevity.
• Check the position of the on-board toggle switch before final commissioning to ensure the desired operational mode is active.

FAQ

What is the primary function of the 5463-473 module?
The 5463-473 acts as a Smart I/O module, responsible for signal processing and data acquisition within Woodward control platforms.

Does this module come with firmware pre-installed?
Yes, this unit is supplied with Version 4.4 OPSYS firmware, optimized for high-speed scanning and system compatibility.

Can the toggle switch be used while the system is running?
The toggle switch is designed for hardware testing and configuration. Consult your specific system documentation or maintenance manual before toggling switches during active operation to avoid unintended control outputs.
