51307186-275 | Honeywell | Header Board

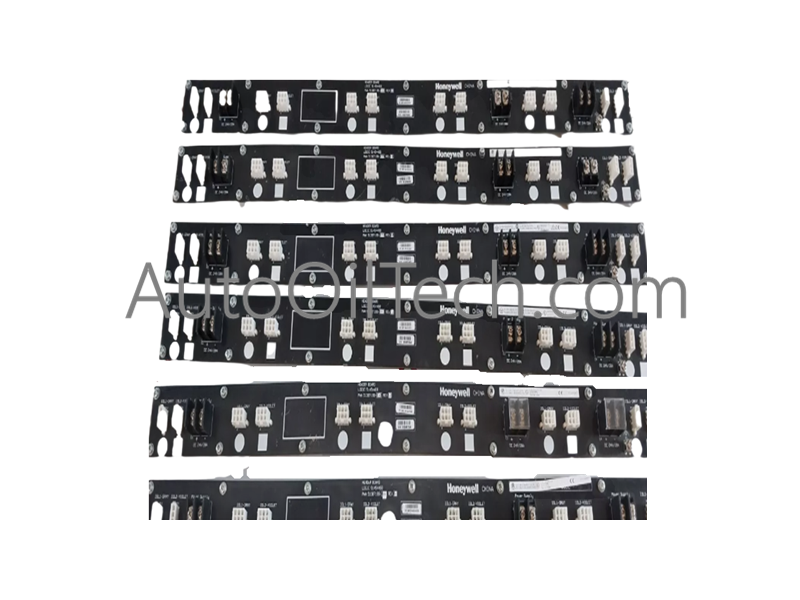

Honeywell 51307186-275 Header Board

Configured for logic routing and signal distribution inside Honeywell control platforms, the Honeywell 51307186-275 (51307186 header board) provides direct electrical interfacing for modules using logic type 51454468. The board maintains stable low‑voltage continuity across header terminals and supports hazardous‑location deployment through certified construction.

Hardware Specifications

4-20 mA HART Loop Protocol Behavior

Although the header board does not terminate analog loops directly, it routes low‑voltage signals between logic modules and field termination assemblies. Shielding and PCB trace spacing reduce noise coupling when 4-20 mA or HART‑enabled channels pass through adjacent wiring blocks. Channel‑to‑channel isolation is maintained by the receiving modules, while the board ensures deterministic signal alignment across logic type 51454468.

Frequently Asked Questions

Q: Can the 51307186-275 be replaced while the system remains energized? A: Header boards typically require the associated module to be placed in a safe or standby state before removal to prevent signal interruption.

Q: Does this board add electrical load to the controller backplane? A: No. It is a passive routing board and introduces no additional current draw beyond the connected modules.

Q: Are firmware updates required for compatibility with logic type 51454468? A: The board contains no firmware. Compatibility depends solely on the logic module’s electrical interface and configuration.

Field Installation Guidelines

• Ensure full seating of the header connector to maintain stable contact under vibration.
• Maintain PCB clearance from high‑voltage conductors to avoid induced noise.
• Verify grounding continuity according to Honeywell hazardous‑location wiring practices.
• Avoid excessive bending or mechanical stress on attached harnesses to preserve conductor integrity.
• Confirm correct alignment with logic type 51454468 before energizing the control system.
