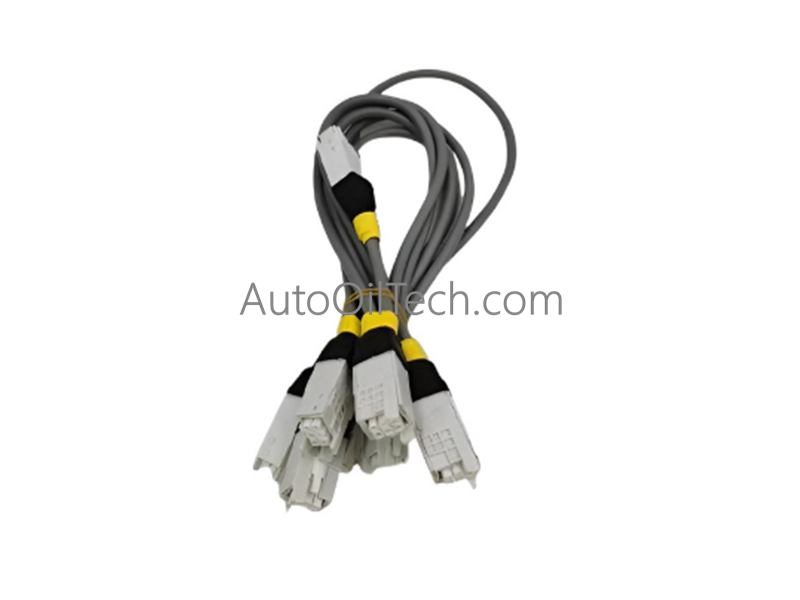

The Honeywell 51204126-004, also cataloged as the 51204126 cable set, operates as a PM power cable with integrated I/O link protection for distributed control system (DCS) infrastructure.
Hardware Specifications
Parameter
Specification
Model
51204126-004
Brand
Honeywell
Origin
Not specified
Weight
Approx. 610 g
Dimensions
Length 4 m
Operating Temp
Industrial-grade range (not specified)
Power Consumption
Passive cable, no electrical load
Cable Type
PM power cable with I/O link protection
Impedance
124 Ohm
Voltage Rating
300 V
Application
Industrial automation, DCS infrastructure
Compatibility
Honeywell control system modules
4-20 mA HART Loop Protocol
The cable integrates with Honeywell DCS modules supporting 4-20 mA HART loop signaling. The built-in I/O link protection network ensures stable communication under industrial noise conditions, while impedance control (124 Ohm) maintains signal fidelity across extended cable runs.
Frequently Asked Questions
Q: Can the cable be hot-swapped during system operation? A: No. Cable replacement requires system power-down to maintain signal integrity and prevent transient faults.
Q: Is the cable interchangeable with non-Honeywell cables? A: No. Use only Honeywell-specified cables to ensure proper shielding, impedance, and connector compatibility.
Q: What is the recommended grounding practice? A: Ground the shield at the controller end only to avoid ground loops and induced noise.
Field Installation Guidelines
Route the cable away from high-voltage conductors to minimize EMI/RFI interference.
Maintain shield continuity and ground only at the controller termination point.
Verify connector engagement with I/O link protector before energizing the system.
Avoid excessive bending radius to preserve insulation integrity.
Inspect cable armor and jacket for damage prior to commissioning.
