51202901-200 Honeywell Experion PKS Wire Harness

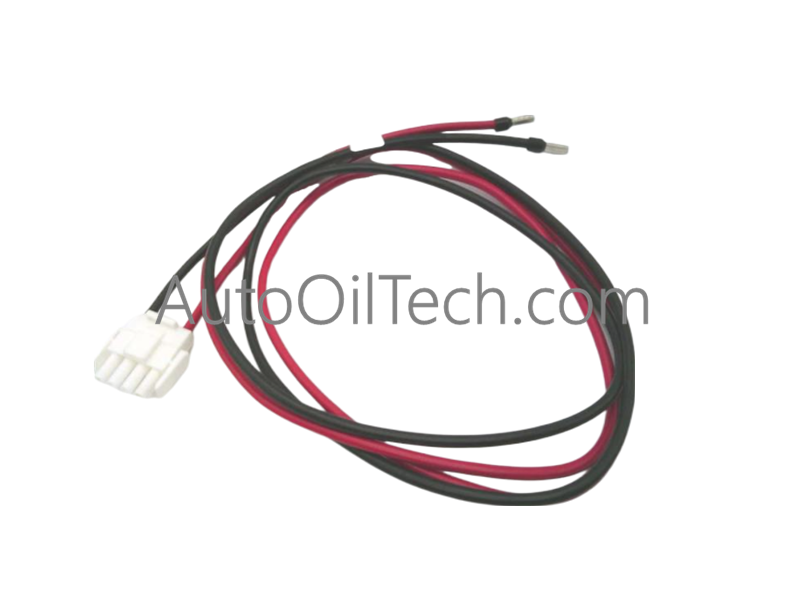

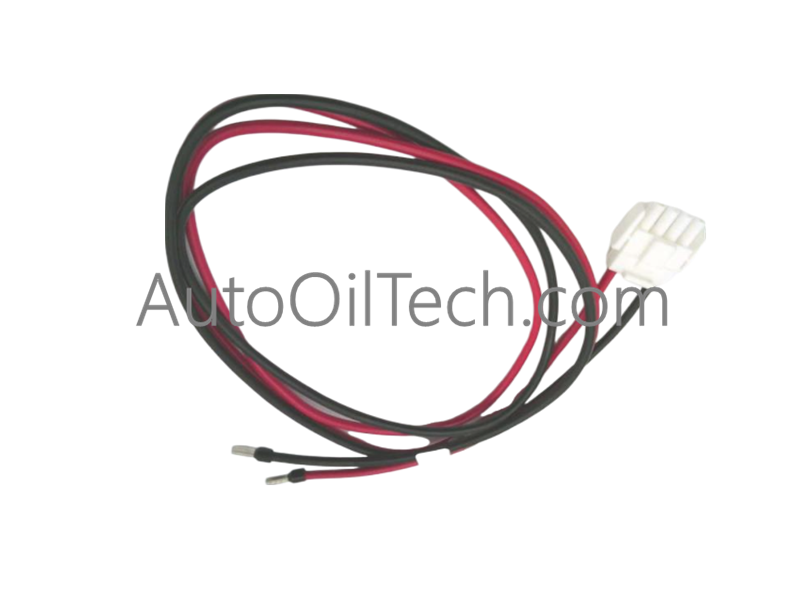

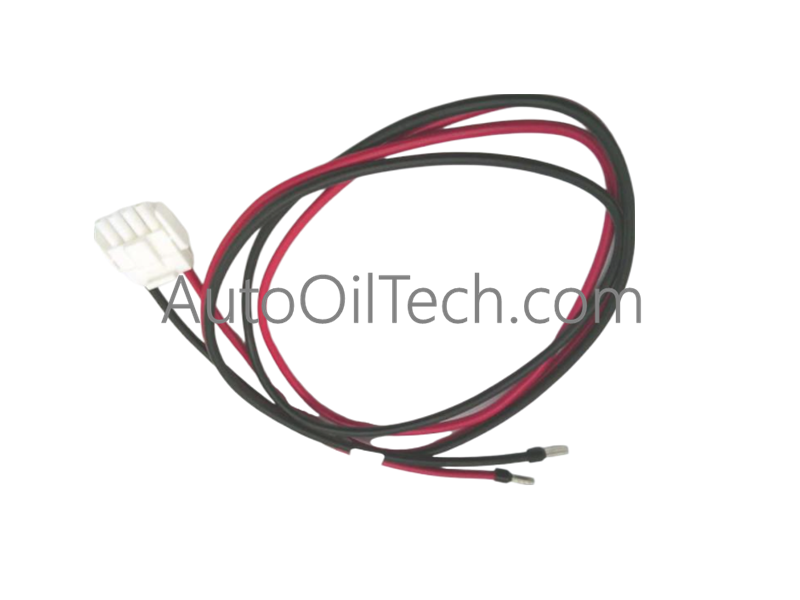

The Honeywell 51202901-200 (51202901200 Wire Harness) is configured for industrial computer and wiring network integration in distributed control systems, providing direct physical and electrical signal routing.

Suffix Breakdown & Model Matrix

The base catalog designation 51202901-200 represents the complete wire harness assembly, with the trailing suffix indicating physical length and specific terminal connector variations configured for Honeywell hardware architectures. No auxiliary sub-assemblies exist for this passive cabling component.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

The wire harness maintains signal propagation stability across industrial instrumentation loops through a dedicated 2-wire configuration, limiting parasitic capacitance and resistance drops over physical spans. The internal conductors utilize insulated jacketing to suppress electromagnetic interference from adjacent power distribution components. System-level isolation is preserved by maintaining continuous shielding from the controller termination panel to the field device junction boundary.

Frequently Asked Questions

Q: Does this wire harness require external power conditioning during operation?

A: No, the assembly is passive and acts purely as a physical conductor medium for low-voltage power or communication signals.

Q: What are the installation restrictions regarding bending stress near connector terminals?

A: Field routing requires avoiding sharp bends near the crimped connector interfaces, maintaining a minimum bend radius consistent with standard industrial wiring practices to prevent internal conductor fatigue.

Q: Is this harness compatible with legacy controller migration frameworks?

A: Yes, it is designed to interface with established Honeywell system configurations requiring a 2-wire connection layout.

Field Installation Guidelines

Route the wire harness strictly through designated cable trays, avoiding proximity to high-voltage alternating current power conduits and variable frequency drive motor leads. Secure all termination points using calibrated screwdrivers to achieve proper torque on terminal block screws without damaging internal strands. Ensure that any integrated shield drain wires are terminated securely to the designated cabinet earth ground bar to maintain continuous electromagnetic compatibility.
