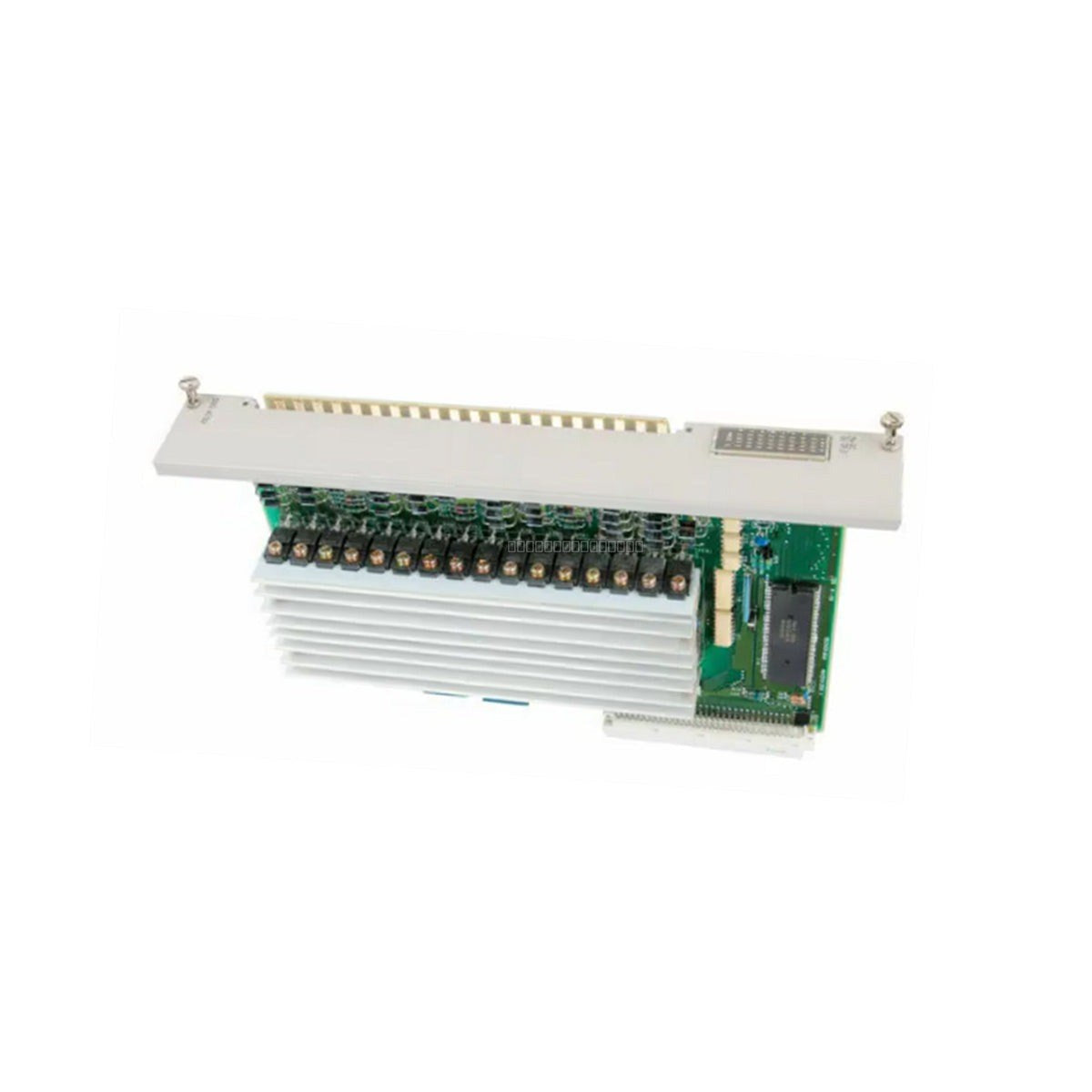

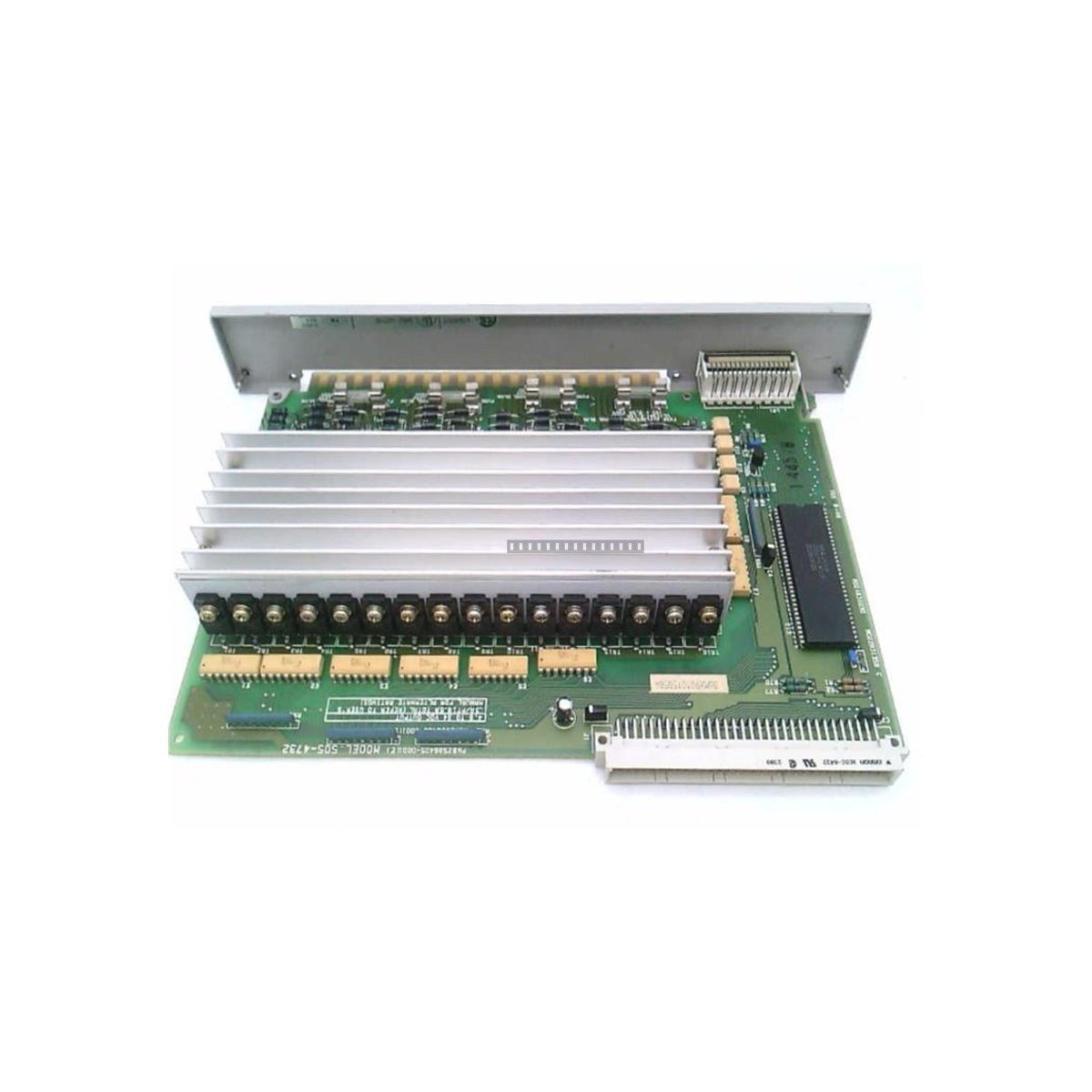

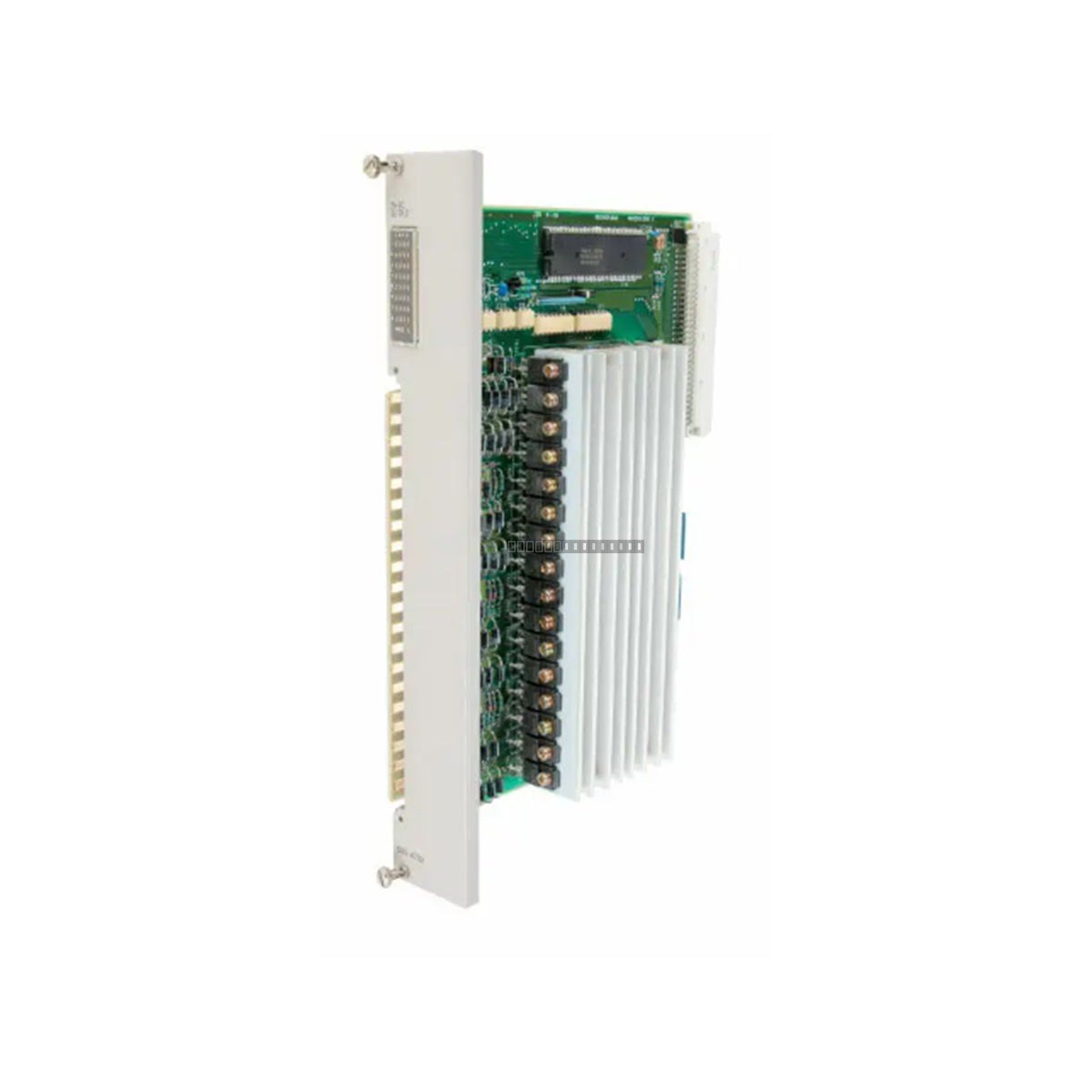

The Siemens 505-4732 is a high-density digital output module designed for use within the TI 505 series programmable logic controller (PLC) systems. This module provides 32 discrete output points, enabling the control of various field devices such as solenoids, relays, and indicators. Engineered for industrial environments, it facilitates reliable switching for DC-based control applications.
Features
32-point digital output configuration for high-density I/O requirements.
Operating voltage range of 4.5-34 VDC, providing flexibility for various low-voltage DC control circuits.
Designed specifically for the Siemens TI 505 PLC platform architecture.
Robust construction suitable for standard industrial control cabinet mounting.
Applications
This module is typically utilized in manufacturing and process automation environments where the TI 505 PLC system is deployed. It is suitable for controlling DC-operated actuators, pilot lights, and intermediate relay interfaces in automated machinery, packaging lines, and material handling systems.
Technical Specifications
Product Model
505-4732
Module Type
Digital Output Module
Point Count
32 Points
Voltage Range
4.5-34 VDC
Manufacturer
Siemens
Tariff Code
8538903000
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage or unexpected system behavior.
Verify that the module is firmly seated in the backplane connector to ensure proper communication with the CPU and power supply.
Route output wiring through dedicated cable trays, keeping high-voltage AC lines separate from low-voltage DC signal lines to minimize electromagnetic interference (EMI).
Ensure proper grounding of the PLC chassis to a common earth point to maintain signal integrity and safety.
Use appropriate wire gauges and ferrules for terminal connections to ensure secure, vibration-resistant contact.
FAQ
Is the Siemens 505-4732 still in production?
No, this module has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy TI 505 systems.
What is the voltage rating for this module?
The 505-4732 is designed to operate within a 4.5-34 VDC range, making it compatible with standard 12VDC and 24VDC control logic.
