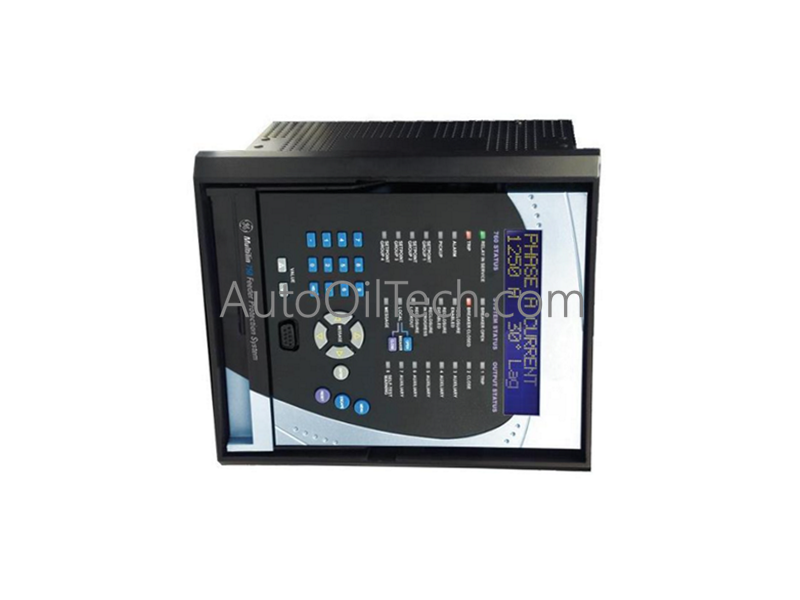

489-P1-LO-A20-E GE Multilin Generator Management Relays

The GE Multilin 489-P1-LO-A20-E, also cataloged as the 489-P1-LO-A20-E Generator Management Relay, serves as the primary 489 Generator Management Relay utilized to execute generator protection and monitoring sequences across small to medium-sized induction and synchronous generator networks.

Hardware Specifications

Power Protection Matrix and Signal Execution

• Current Transformer Sensing and Differential Logic The module incorporates phase sensing circuitry optimized for 1 A current transformer secondary loops. This P1 hardware configuration tracks output and neutral current inputs across a conversion range of 0.02 to 20 x CT, executing a dual-slope phase differential curve shape to prevent false trips during external faults while clearing internal faults via output relays within 10 ms.
• Analog Telemetry and Thermal Monitoring The back-panel termination layer includes 4-20 mA analog inputs alongside field-programmable RTD circuits. These channels handle active continuous auxiliary inputs, such as transducer-driven vibration monitoring loops and bearing resistance elements, to safeguard mechanical structures against localized thermal and rotational stress.
• Network Integration and Voltage Phase Synchronization The device calculates energy metering updates every 50 ms and ensures voltage phase reversal timing accuracy within 200 to 400 ms. For external host communication, the hardware drives integrated Modbus RTU, Modbus TCP/IP, and DNP 3.0 serial/ethernet protocols to stream real-time diagnostic registers directly to plant DCS and SCADA networks.

Frequently Asked Questions

Q: How does the 489-P1-LO-A20-E handle electrical noise and transient interference on its ground plane?

A: The internal filtering network and terminal grounding layout conform to C37.90 EMI, Surge Withstand Capability (SWC), and RFI interference immunity standards. High-frequency noise components induced from surrounding field instrumentation or switching transients are systematically shunted to the dedicated filter ground.

Q: What physical mechanism prevents unauthorized field extraction of this draw-out module?

A: The bottom edge of the enhanced front faceplate contains a integrated mechanical draw-out handle. This handle structure is machined with a dedicated alignment port designed to accept a standard wire lead security seal, preventing unapproved physical extraction of the internal relay chassis from its outer case.
