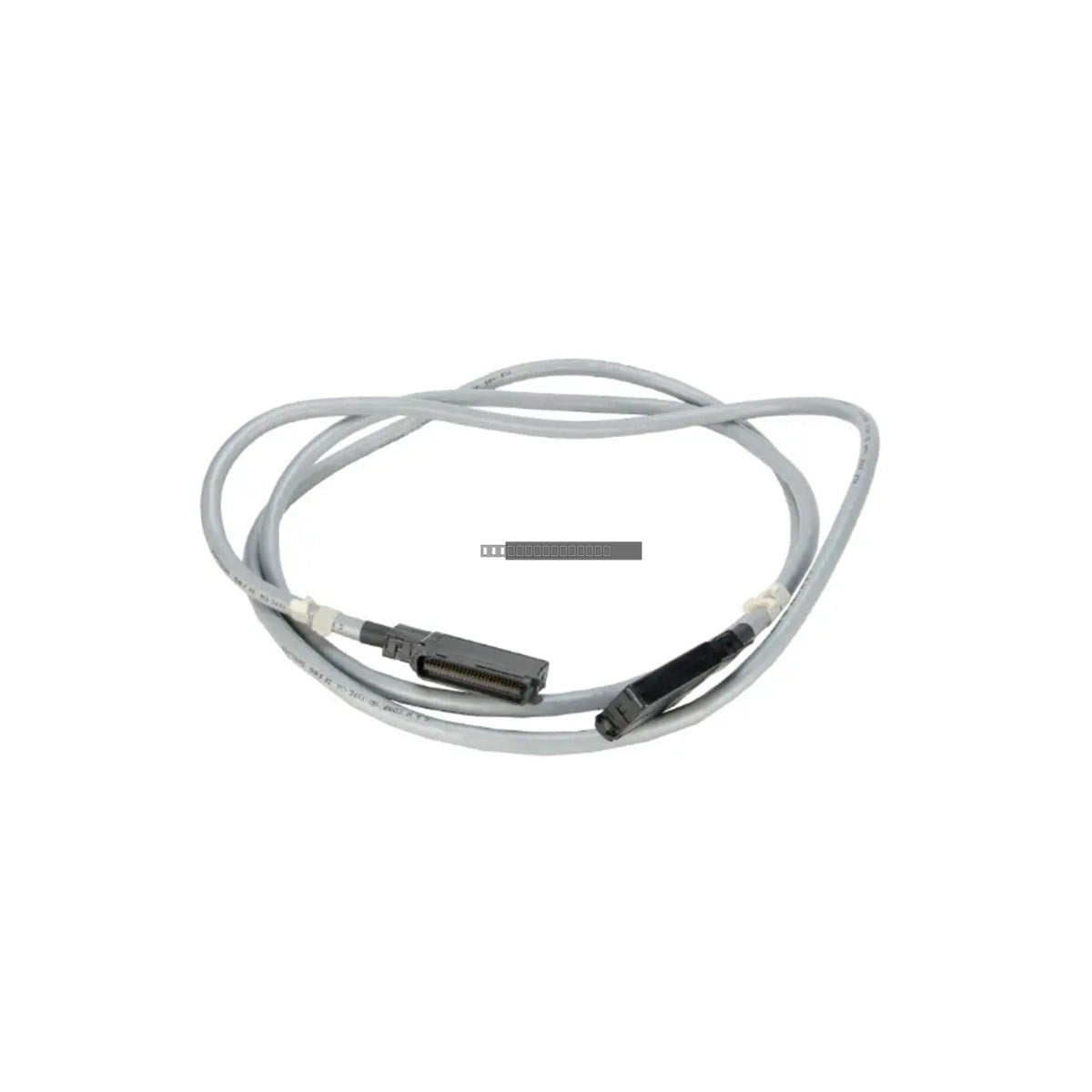

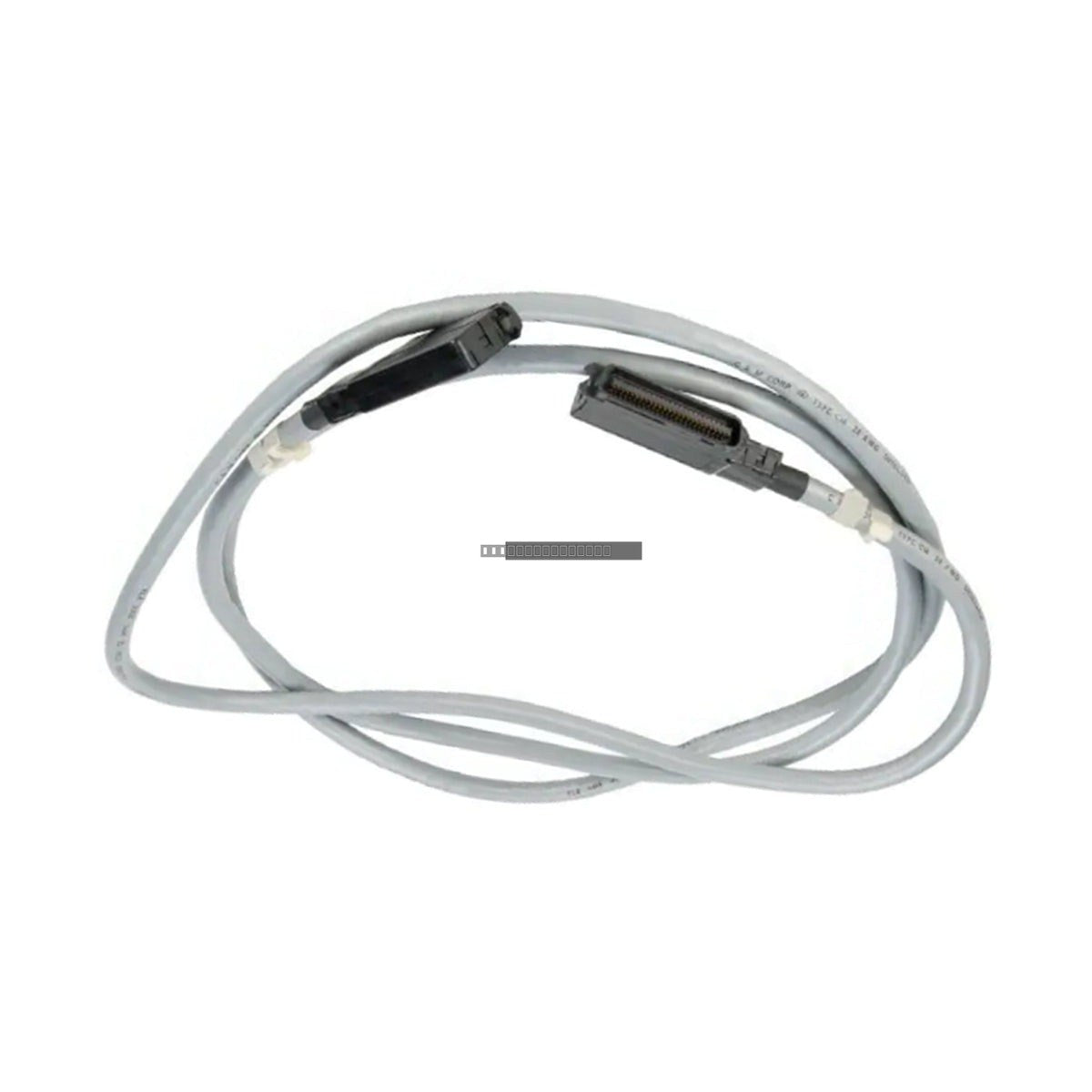

The Invensys Triconex 4000029-010 is a specialized 9-foot (2.74 meter) cable assembly designed for integration within Triconex Safety Instrumented Systems (SIS). This component acts as a vital link for reliable data and signal transmission between controller units, I/O modules, and field termination assemblies. Engineered for demanding industrial environments, this cable assembly provides the necessary signal integrity required for mission-critical safety applications, including chemical processing, power generation, and oil and gas infrastructure.
Features
System Compatibility: Engineered specifically for the Triconex SIS architecture, supporting Triple Modular Redundancy (TMR) signal paths.
Signal Integrity: Features precision-twisted conductors and robust industrial-grade shielding to mitigate electromagnetic interference (EMI) and crosstalk.
Mechanical Durability: Equipped with high-density connectors and integrated strain relief to ensure secure, long-term connections in high-vibration rack environments.
Industrial Construction: Utilizes a flame-retardant outer jacket suitable for installation within standard safety-rated control cabinets.
Technical Specifications
Model
4000029-010
Brand
Invensys (Triconex)
Cable Length
9 ft (2.74 m)
Operating Temperature
-20 to 70 deg C
Storage Temperature
-40 to 85 deg C
Connector Type
Proprietary Triconex High-Density Interface
Weight
0.6 kg
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or damage to the I/O interface pins.
Route cables through designated cable trays or conduits, keeping them physically separated from high-voltage power lines to minimize induced noise.
Verify that the connector locking mechanisms are fully engaged to maintain mechanical stability and proper electrical contact.
Avoid sharp bends or tight radii during installation to prevent damage to the internal shielding and conductors.
Handle with care to prevent debris from entering the high-density connector pins.
FAQ
Is this cable compatible with all Triconex systems?
The 4000029-010 is designed for specific Triconex SIS applications. Please verify your system's hardware manual or the specific interface requirements for your I/O module to ensure compatibility.
Does this cable support redundant pathways?
Yes, the cable is designed to facilitate the redundant communication pathways necessary for TMR (Triple Modular Redundancy) configurations within the Triconex ecosystem.
