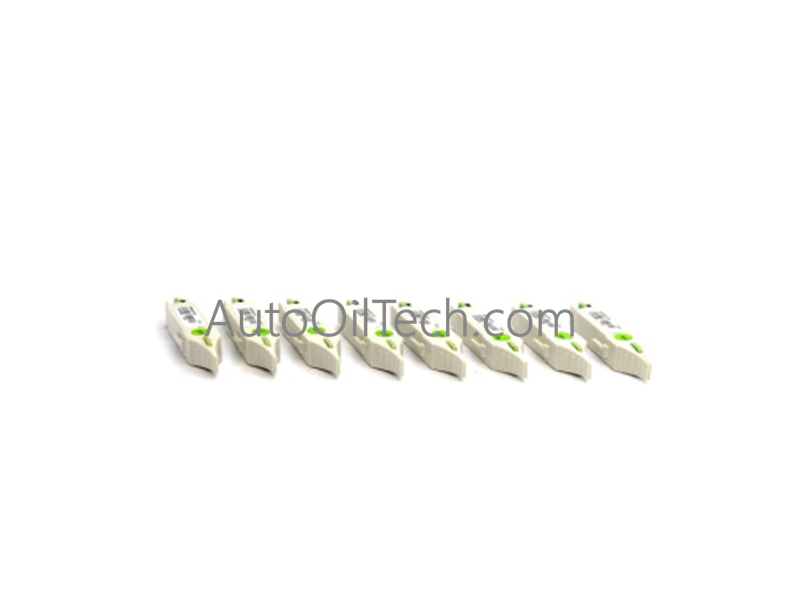

3BSE023607R1 ABB TY801K01 ShuntStick

Product Description

The TY801K01 (3BSE023607R1) is a precision shunt resistor assembly specifically engineered for the ABB S800 I/O system. This dual-element "shunt stick" provides a $125 + 125\ \Omega$ resistive interface, primarily used to convert 4-20 mA current signals into voltage inputs compatible with high-density analog modules. Designed for seamless integration into specific Module Termination Units (MTUs), the TY801K01 ensures signal stability and high-accuracy data acquisition for critical process control loops.

Technical Specifications

• Manufacturer: ABB

• Model Number: TY801K01

• Part Number: 3BSE023607R1

• Resistive Value: Dual $125\ \Omega$ resistors ($125 + 125\ \Omega$ total)

• Function: Current-to-voltage conversion for 4-20 mA loops

• Analog Module Compatibility: AI845, AI880A

• MTU Compatibility: TU834, TU844, TU845, TU854

• Installation Type: Plug-in Shunt Stick

• RoHS Status: Fully compliant with EU Directive 2011/65/EU

• Module Width: 15.5 mm

• Module Height: 11 mm

• Module Depth: 62 mm

• Net Weight: 0.06 kg (0.13 lbs)

Operational Applications

The TY801K01 is essential for:

• Redundant Analog Inputs: Enabling redundant AI845 or AI880A configurations on specialized termination units.

• Signal Conditioning: Providing the precise resistance required for 800xA system analog input channels to read standard industrial current loops.

• System Maintenance: Replacing aged or damaged shunt sticks to restore signal accuracy in existing S800 I/O clusters.
