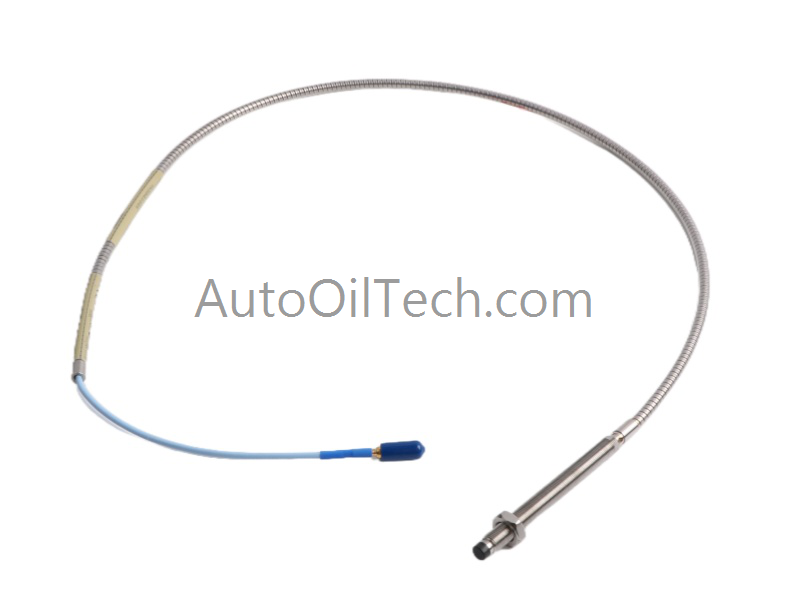

The Bently Nevada 330104-00-10-10-02-00 proximity probe is a metric‑threaded, armored 8 mm eddy‑current sensor used for shaft displacement, rotor dynamics, and vibration monitoring within the 3300 XL system architecture. Its mechanical configuration and electrical characteristics follow the standardized 3300 XL scaling curve for consistent proximitor‑to‑monitor performance.
02 — Miniature coaxial ClickLoc connector, standard cable
00 — No agency approvals
Hardware Specifications
Parameter
Specification
Model
330104‑00‑10‑10‑02‑00
Product Type
3300 XL 8 mm Proximity Probe
Brand
Bently Nevada
Origin
Made in U.S.A
Thread Type
M10 × 1 (metric)
Unthreaded Length
0 mm
Overall Case Length
100 mm
Cable Length
1.0 m
Connector Type
Miniature coaxial ClickLoc
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 303 / 304 stainless steel
Minimum Target Size
15.2 mm (flat target)
Weight
0.323 kg
Shipping Weight
1.5 kg
Functional Characteristics
The probe maintains the standard 3300 XL eddy‑current scaling, ensuring compatibility with all 3300 XL proximitor modules. The 100 mm case length provides extended mechanical reach for installations requiring deeper penetration into housings or bearing brackets.
The ClickLoc connector ensures:
Positive locking
Coaxial shielding continuity
Reduced micro‑motion noise
Stable impedance across the full cable length
The armored cable protects against:
Abrasion
Mechanical vibration
Oil splash and industrial contaminants
Installation Notes
Mount using an M10 × 1 threaded bore with clean, burr‑free surfaces.
Maintain perpendicular alignment to the shaft for linear displacement response.
Avoid tight cable bends to preserve coaxial impedance.
Terminate shielding at the proximitor end only to prevent ground loops.
Verify gap voltage after installation to confirm correct standoff distance.
