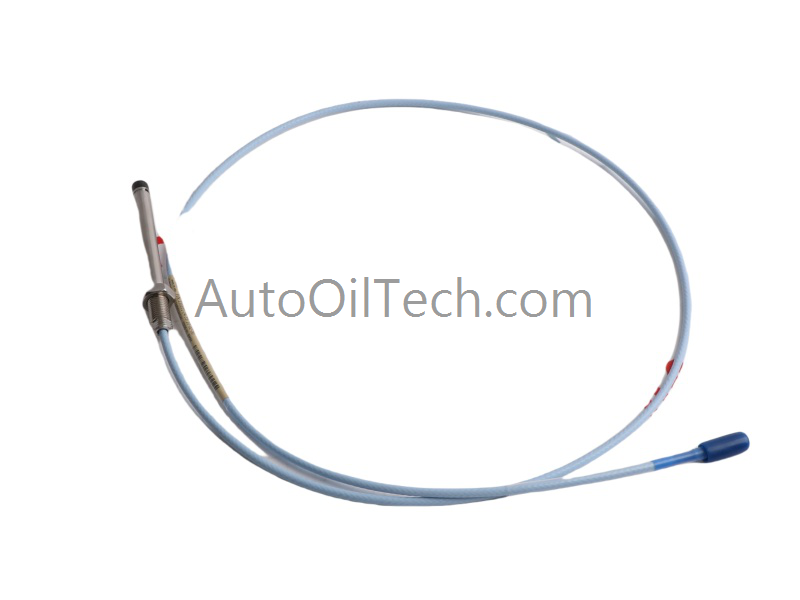

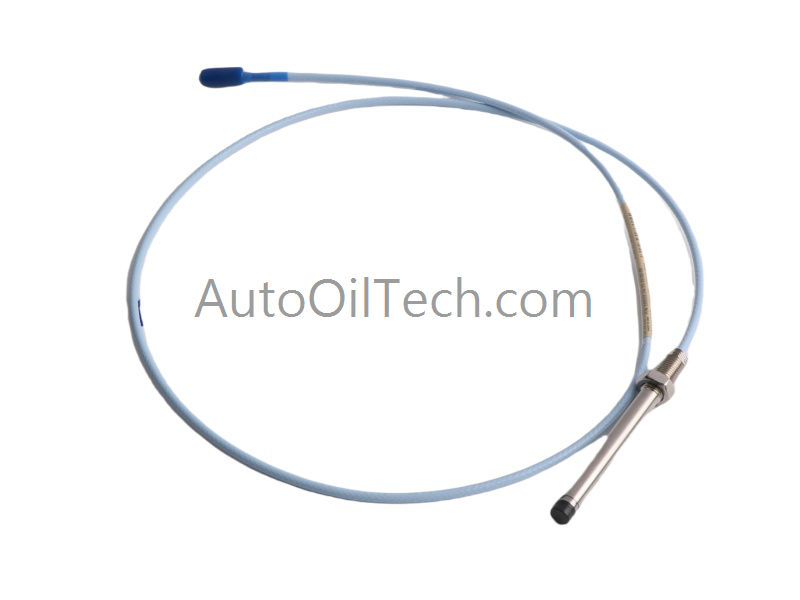

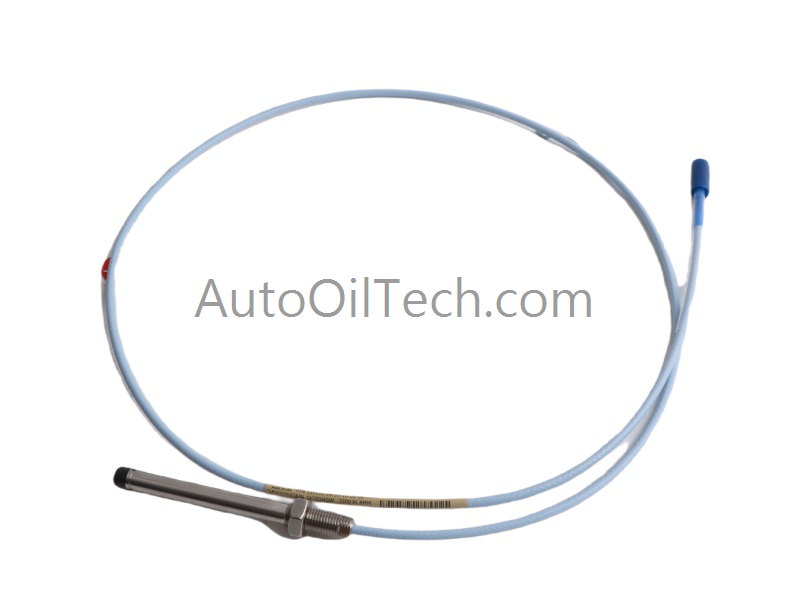

Bently Nevada 330101-00-35-10-02-00 3300 XL 8 mm Proximity Probe
The Bently Nevada 330101‑00‑35‑10‑02‑00, part of the 3300 XL 8 mm Proximity Probe family, is engineered for non‑contact vibration and position measurements on turbomachinery. It provides reliable monitoring of radial vibration, shaft position, and speed/phase reference signals in fluid‑film bearing machines.
02 — Miniature coaxial ClickLoc™ connector with standard cable
00 — Agency approval option (none / standard)
Hardware Specifications
Parameter
Specification
Model
330101‑00‑35‑10‑02‑00
Brand
Bently Nevada
Product Type
3300 XL 8 mm Proximity Probe
Tip Diameter
8 mm
Thread Size
3/8‑24 UNF
Case Length
3.5 in
Cable Length
1.0 m (3.3 ft)
Connector Type
Miniature coaxial ClickLoc, standard cable
Agency Approval
None
Linear Range
2 mm (80 mils)
Output Sensitivity
~200 mV/mil
Operating Temperature
–51 °C to +177 °C (–60 °F to +351 °F)
Materials
PPS probe tip, AISI 303/304 stainless steel case
Functional Description
The probe uses eddy‑current transducer technology to deliver a proportional voltage output relative to shaft displacement. It is designed for high‑frequency response, enabling accurate monitoring of both static (position) and dynamic (vibration) values. The rugged PPS tip and stainless steel case ensure durability in harsh industrial environments.
Frequently Asked Questions
Q: Can the 330101‑00‑35‑10‑02‑00 be hot‑swapped? A: No. Probes must be disconnected only when the system is de‑energized to preserve calibration integrity.
Q: Is it interchangeable with other 3300 XL probes? A: Yes. It is fully compatible with standard 3300 XL extension cables and Proximitor sensors without requiring bench recalibration.
Q: What applications are typical? A: Radial vibration, axial thrust position, and speed/phase reference measurements on turbomachinery.
Field Installation Guidelines
Do not cut or modify the probe cable; factory termination preserves calibration.
Maintain proper bend radius to avoid altering coaxial geometry.
Route cables away from high‑frequency switching conductors to reduce induced noise.
Ensure ClickLoc connector is fully seated before energizing the system.
Confirm installation practices comply with site standards for vibration monitoring systems.
