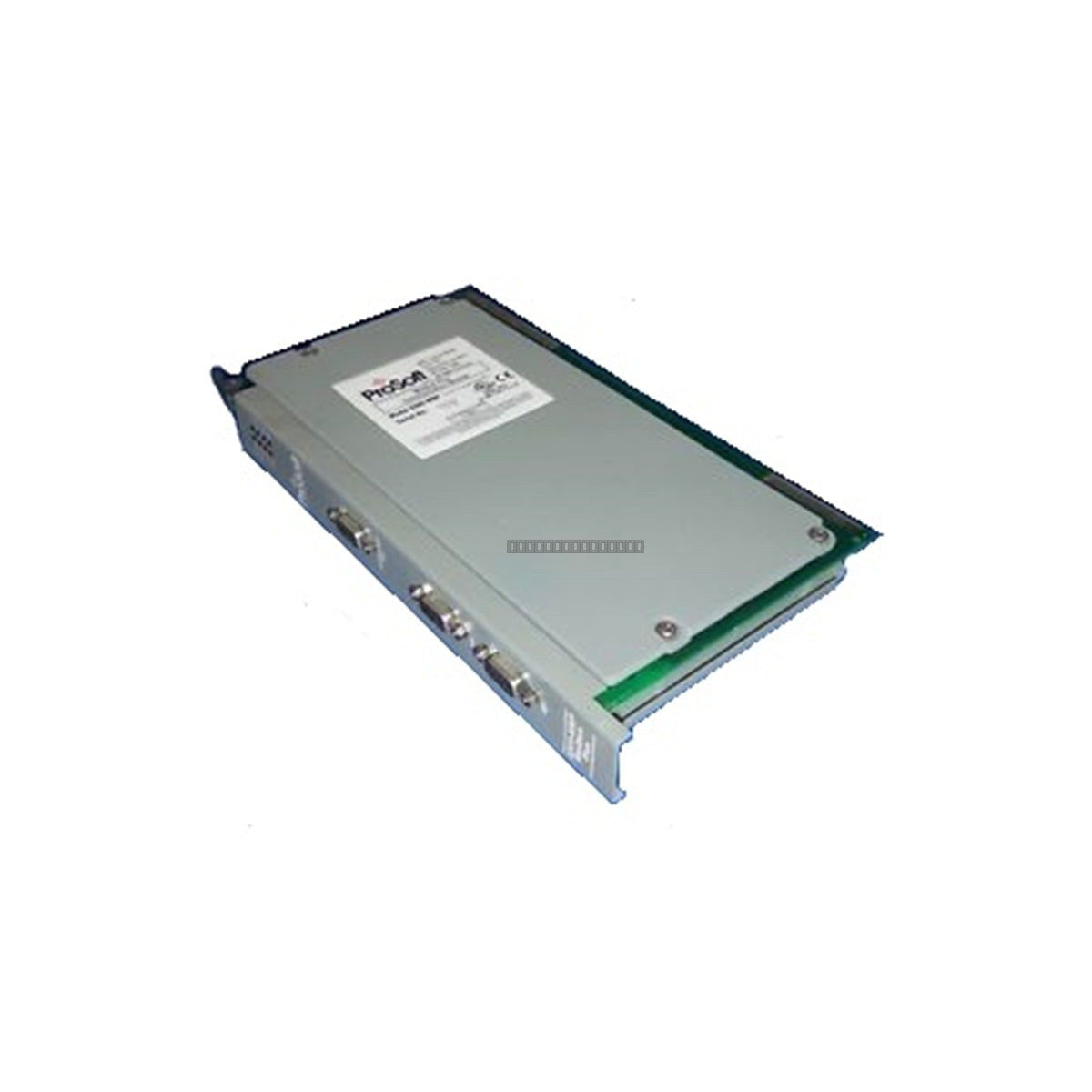

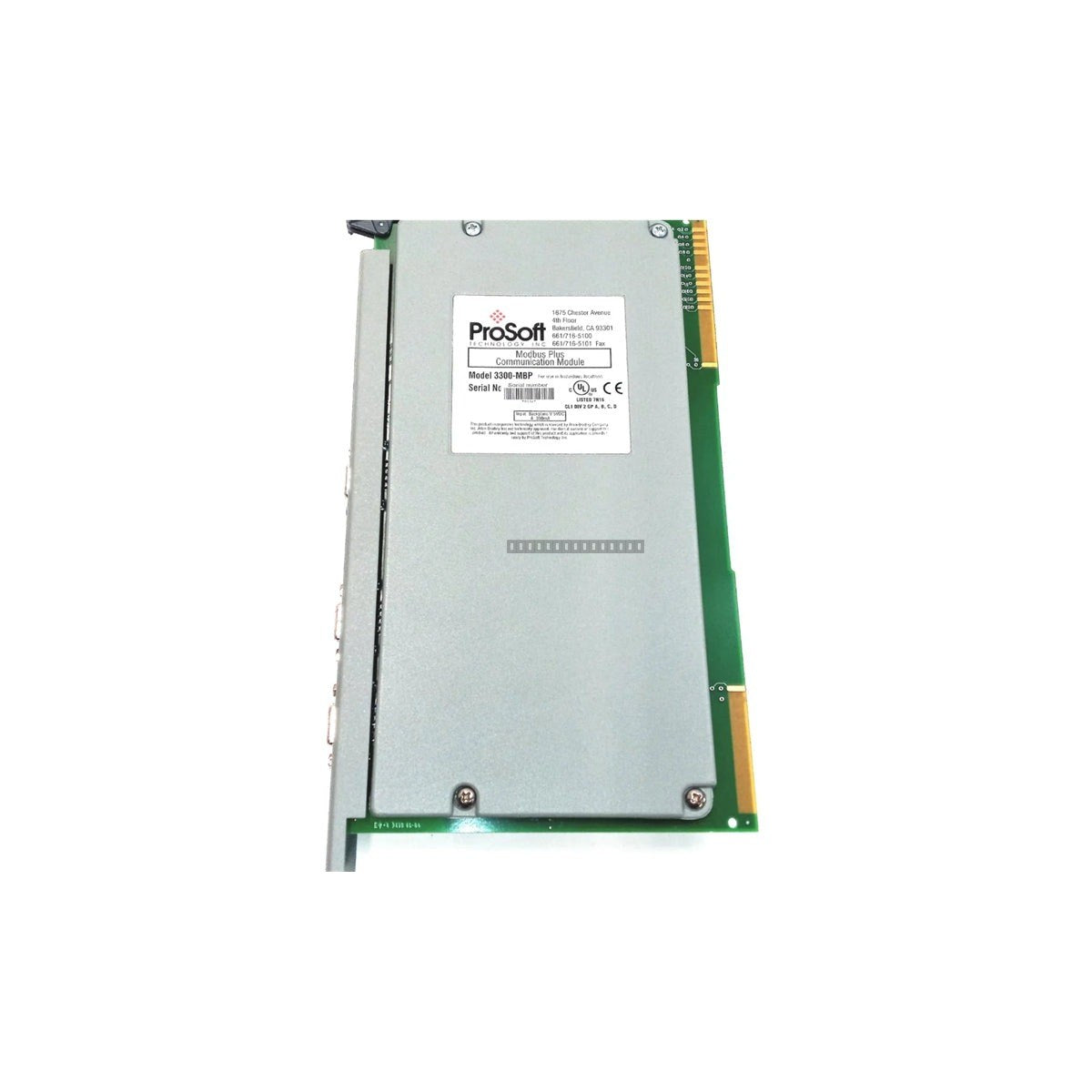

ProSoft 3300-MBP Modbus Plus Communication Module

Description

The ProSoft 3300-MBP is a specialized communication module designed for high-performance data interfacing within legacy industrial control systems. This PC board/add-on board provides critical networking capabilities for systems requiring Modbus Plus (MBP) protocol integration. Primarily utilized in heavy industrial environments such as oil and gas refining, chemical processing, and power generation, the 3300-MBP serves as a vital bridge between control processors and peripheral networking hardware. By ensuring robust data throughput and protocol stability, this module facilitates real-time monitoring of mission-critical assets.

Features

• Dedicated hardware interface for Modbus Plus (MBP) protocol.
• Offloads communication processing from the host PLC to ensure optimal control logic execution.
• Supports high-speed peer-to-peer communication and Global Data functionality.
• Industrial-grade circuitry designed to resist electromagnetic interference (EMI).
• Compatible with standard industrial network topologies, including daisy-chain and trunk-line configurations.
• Optimized for deterministic data delivery in large-scale automated manufacturing.

Applications

The 3300-MBP is typically deployed in legacy control architectures where Modbus Plus integration is required for system expansion or maintenance. Common applications include:

• Oil and gas refining process control.
• Chemical processing plant automation.
• Power generation and distribution monitoring.
• Large-scale manufacturing control networks.

Technical Specifications

Installation Guidelines

• Ensure the host system is powered down before installing or removing the 3300-MBP module.
• Handle the module by its edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Ensure proper seating of the PC board within the host chassis or backplane slot.
• Verify that all communication cabling is properly shielded and routed away from high-voltage lines or high-EMI sources to maintain signal integrity.
• Confirm that the network topology follows Modbus Plus cabling standards, including proper termination at the end of the trunk line.

FAQ

Is the 3300-MBP compatible with all PLC systems?

The 3300-MBP is designed for specific legacy industrial control systems that support this PC board form factor and the Modbus Plus protocol. Please verify your host system's hardware compatibility and slot requirements before installation.

What environment is this module rated for?

The module is rated for industrial environments with an operating temperature range of 0 to 60 deg C and non-condensing humidity levels up to 95 percent.
