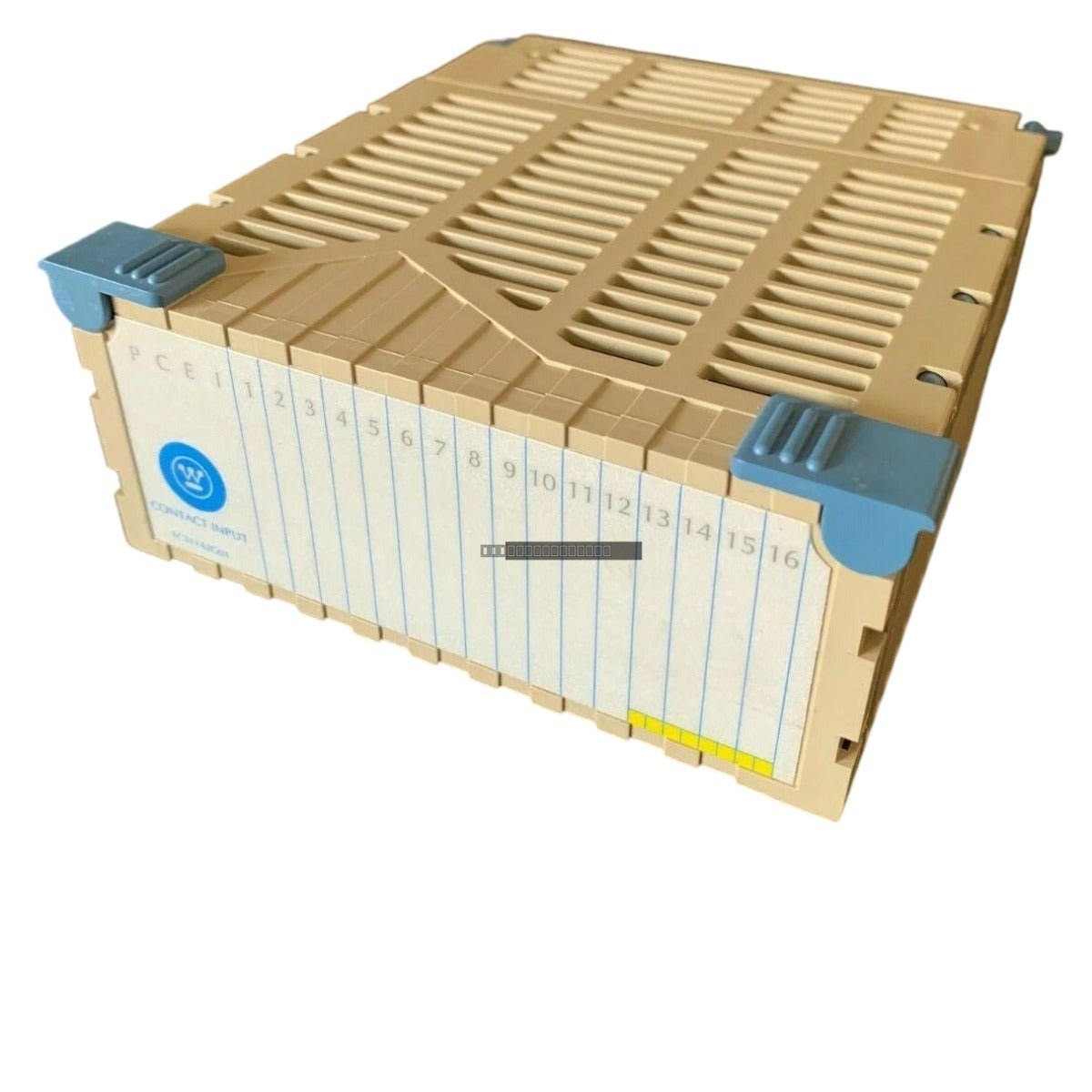

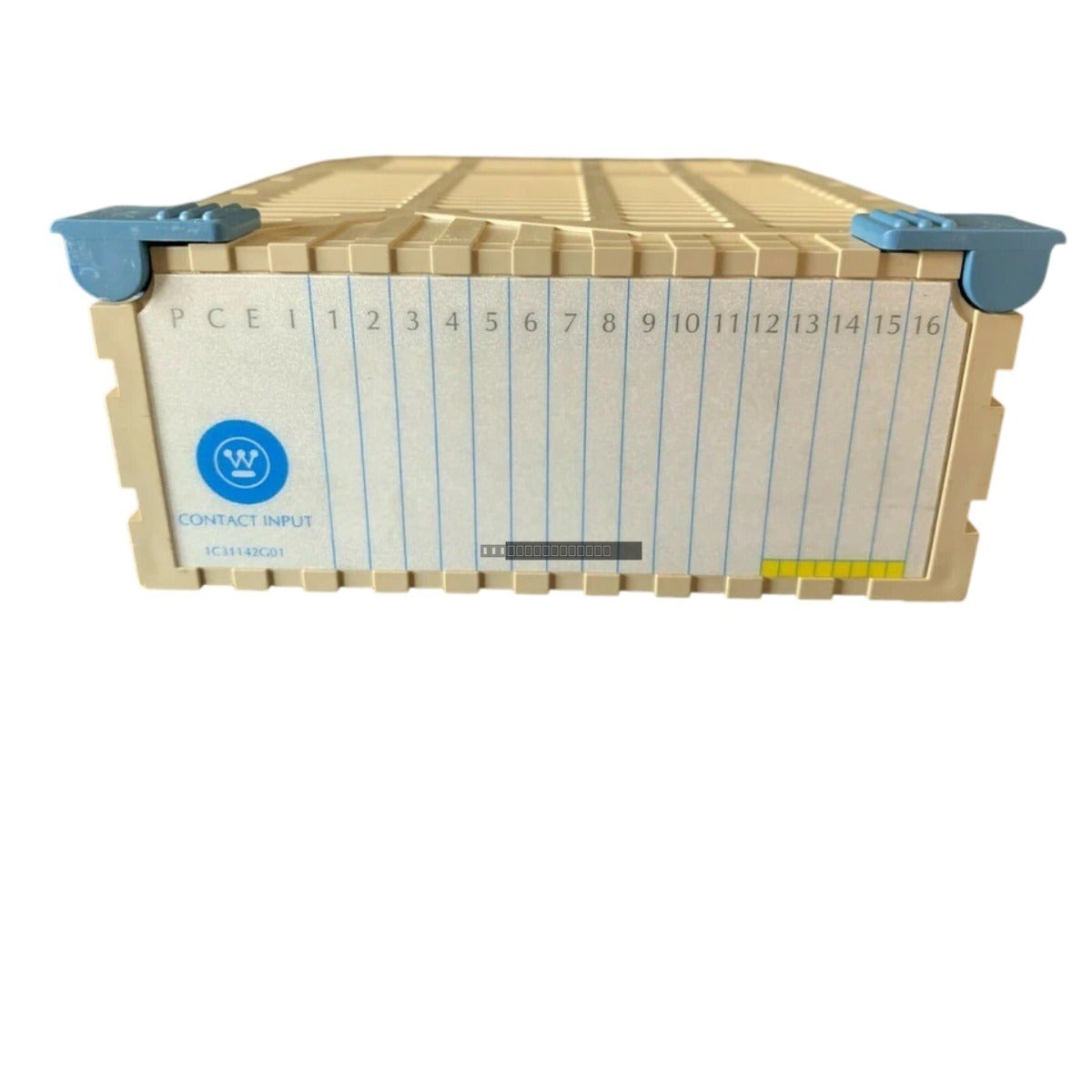

The Ovation 1C31142G01 is a 16-channel contact input module designed for industrial control applications. This module provides reliable digital input monitoring and features an integrated 48V auxiliary power source. It is engineered to support a 45 VDC on-card wetting supply range, ensuring consistent signal detection for field-connected contact devices.
Features
16-channel digital input capacity for high-density signal monitoring.
Integrated 48V auxiliary power supply for field contact wetting.
Designed for seamless integration into Ovation control system racks.
Robust construction suitable for demanding industrial environments.
Technical Specifications
Part Number
1C31142G01
Module Type
Contact Input Module
Channel Count
16
Auxiliary Supply
48 VDC
Wetting Supply Range
45 VDC
System Compatibility
Ovation Series
Installation Guidelines
Ensure the control system rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that field wiring is properly shielded and routed away from high-voltage AC lines to minimize electromagnetic interference (EMI).
Ensure proper seating of the module in the backplane connector to maintain reliable communication with the controller.
Maintain adequate ventilation within the cabinet to prevent thermal stress on the module components.
Handle with standard ESD precautions to protect sensitive internal circuitry during installation or maintenance.
FAQ
Is the 1C31142G01 still in production? No, this model has been discontinued by the manufacturer. We supply tested, reliable units to support legacy system maintenance.
Does this module include a wetting supply? Yes, the module features an onboard 48V auxiliary supply with a 45 VDC wetting range to support field contacts.
