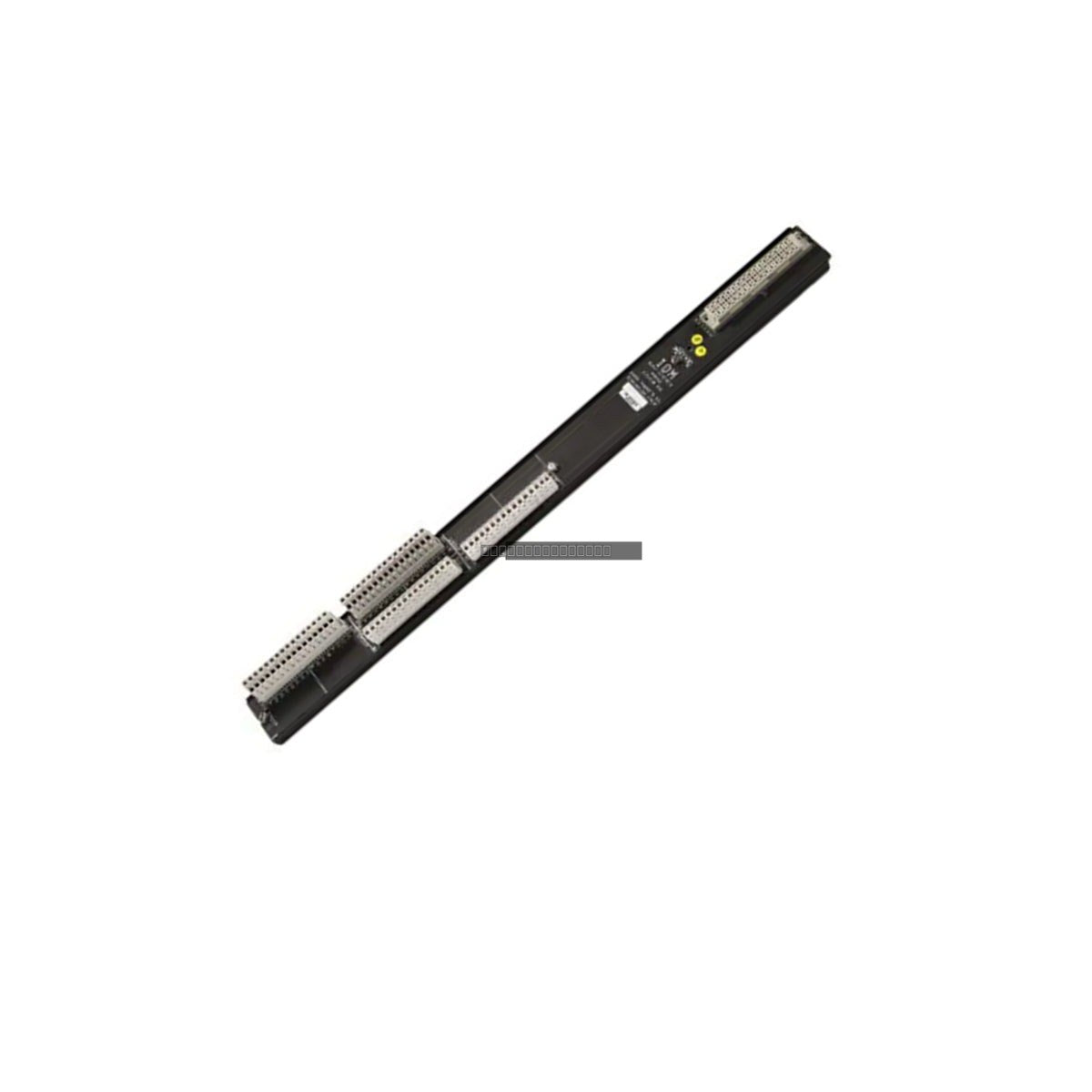

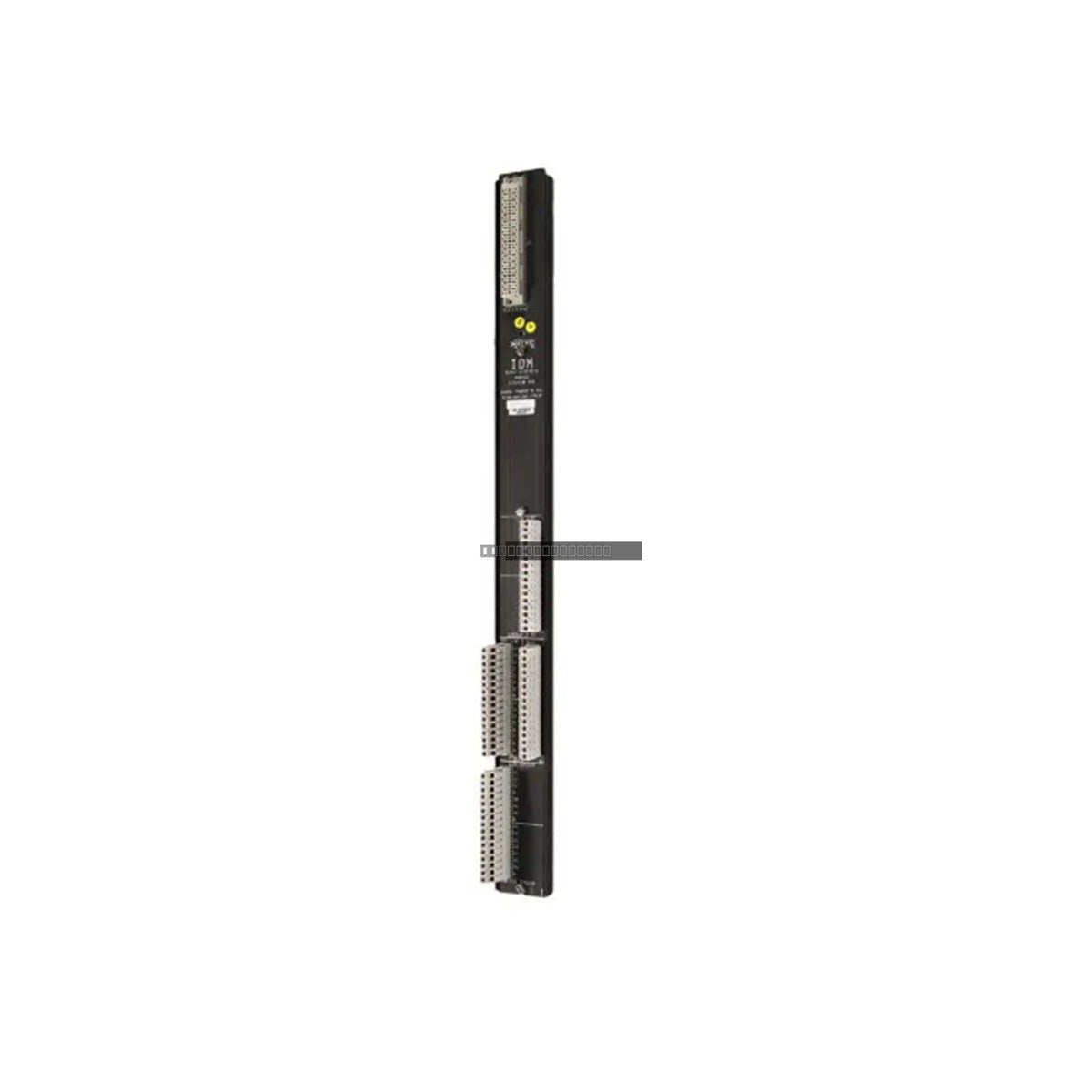

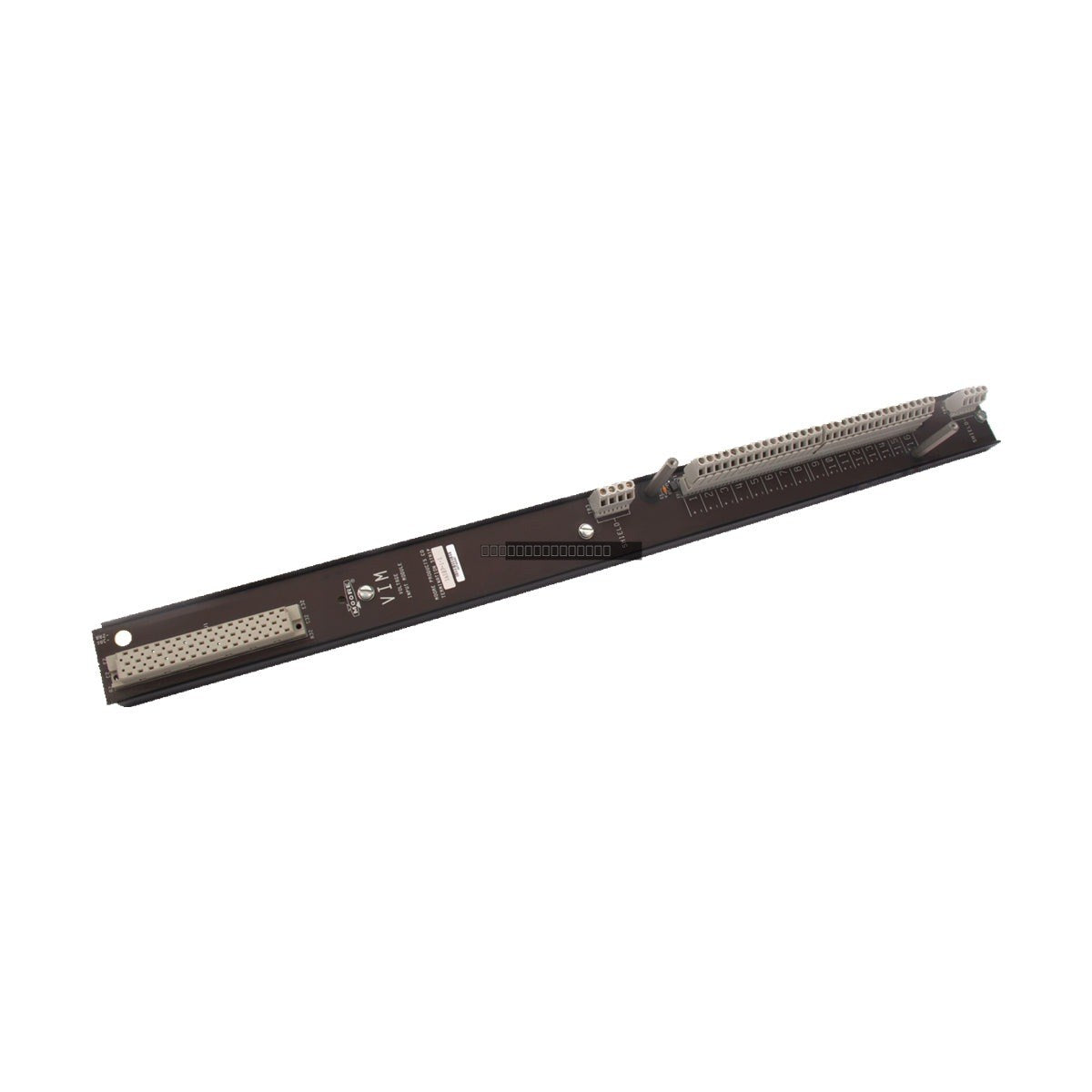

The Siemens 16187-1-1 is a specialized Voltage Input Termination (VIM) strip designed for the Siemens APACS+ Distributed Control System (DCS). This module acts as the physical and electrical interface between field-level voltage instrumentation and the system's processing controllers. It is widely utilized in high-reliability industrial environments, including hydrocarbon processing, chemical manufacturing, and utility power plants, to ensure signal integrity for critical process variables. By providing a ruggedized termination point, the 16187-1-1 facilitates efficient diagnostic testing and simplifies routine maintenance.
Features
Designed specifically for the Siemens Moore APACS+ DCS architecture.
Provides high-density wiring termination for voltage input signals.
Passive interface design to minimize signal attenuation and contact resistance.
Rugged construction to withstand thermal and vibrational stresses in industrial control cabinets.
Facilitates rapid connection and disconnection of field wiring without disrupting the primary DCS backplane.
Applications
This module is intended for use in APACS+ control cabinets where precise voltage signal management is required. It is suitable for process control applications involving analog voltage inputs, signal isolation, and high-density I/O management in industrial automation systems.
Technical Specifications
Model
16187-1-1
Brand
Siemens
Product Series
APACS+ DCS
Module Type
Voltage Input Termination (VIM)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5% to 95% non-condensing
Input Type
Voltage Signal Termination
Installation Guidelines
Ensure the system power is disconnected before installing or removing the VIM strip to prevent electrical shorts or damage to the I/O bus.
Mount the module securely on the designated industrial rail within the APACS+ cabinet.
Use proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
Ensure all field wiring is properly labeled and securely seated in the terminal blocks to maintain consistent contact resistance.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal degradation.
Verify that the ambient temperature and humidity levels within the cabinet remain within the specified operating ranges.
FAQ
What is the primary function of the 16187-1-1?
The 16187-1-1 serves as a Voltage Input Termination (VIM) strip for the Siemens APACS+ system, providing a secure and organized interface for field voltage signals to connect to the DCS I/O bus.
Is this module compatible with other Siemens systems?
This module is specifically engineered for the Siemens Moore APACS+ DCS series. Please verify your system hardware compatibility before installation.
