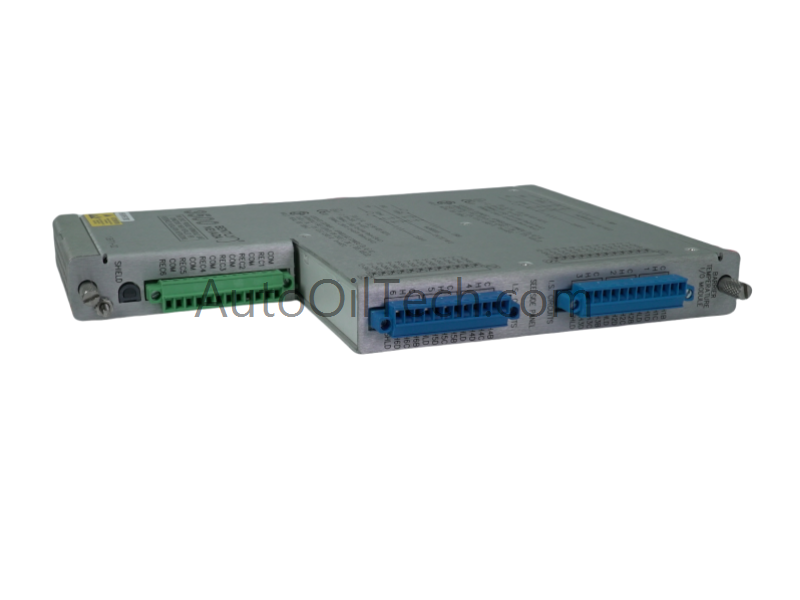

136711-01 | Bently Nevada | I/O Module

Description

The Bently Nevada 136711-01 is a 6-channel RTD/TC (Resistance Temperature Detector / Thermocouple) I/O module designed for the 3500/60 Temperature Monitoring System. This specific version is equipped with internal intrinsic safety barriers, allowing it to interface directly with sensors located in hazardous areas without requiring external safety barriers, while providing direct internal terminations for field wiring.

Specifications

• Model Number: 136711-01

• Product Type: I/O Module with Internal Barriers and Internal Terminations

• Compatible Monitor: 3500/60 RTD/TC Temperature Monitor

• Number of Channels: 6 independent temperature channels

• Input Types: Supports various RTDs (e.g., Pt100) and Thermocouples (e.g., Type K, J, T, E)

• Dimensions: 35cm x 3cm x 10cm (L x W x H)

• Weight: 0.46 Kg (Net)

• Operating Temperature: 0°C to +65°C (+32°F to +150°F) when used with internal barriers

• Country of Origin: Made in the U.S.A. (Certificate of Origin available)

Features

• Integrated Intrinsic Safety: Includes built-in internal barriers to provide explosion protection for transducer systems in hazardous environments.

• Direct Field Wiring: Features internal terminal blocks that allow for the direct landing of field cables without the need for an external termination assembly.

• Versatile Signal Conditioning: Fully programmable via the 3500 Rack Configuration Software to accept any combination of RTD and TC inputs.

• System Performance Integrity: Unlike external barriers, these internal barriers are a native part of the 3500 system, ensuring no degradation of signal accuracy or performance.

• Space-Saving Design: Eliminates the need for additional DIN rail space and wiring complexity associated with third-party galvanic isolators.

• Fault Detection: Provides continuous diagnostics for the sensor and field wiring, capable of identifying open circuits or sensor failures instantly.
