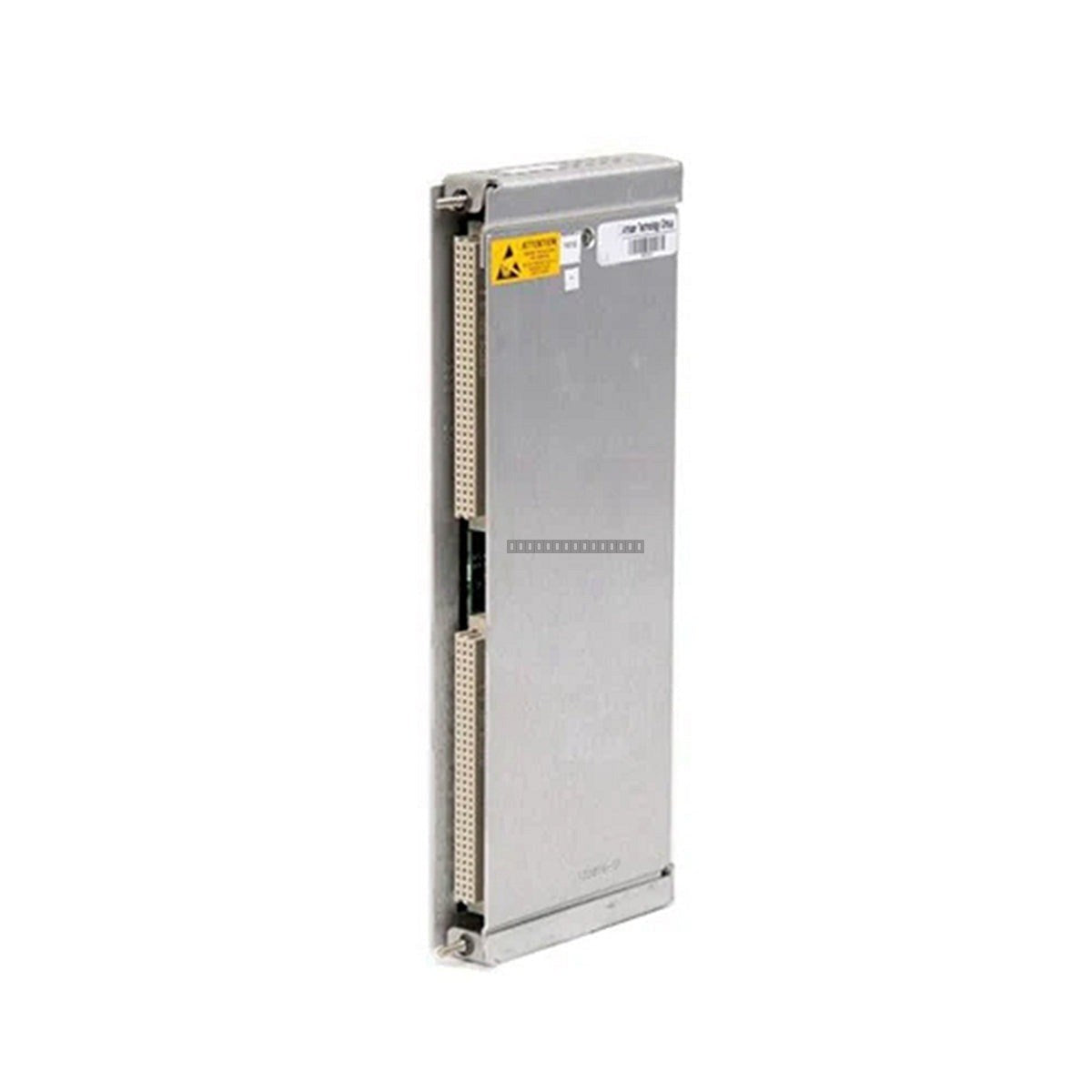

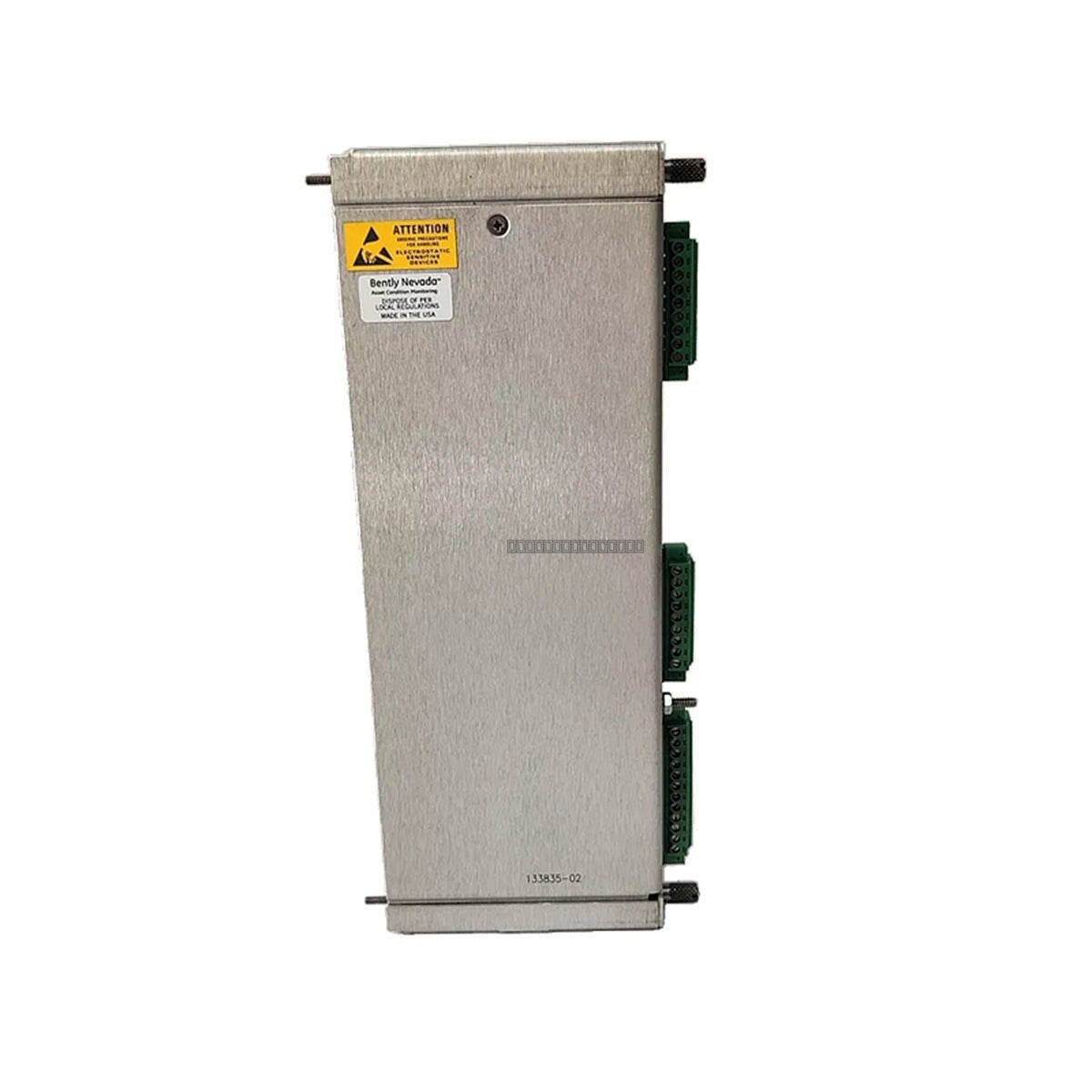

Bently Nevada 133835-01 3500/60 ISO TC Temperature I/O Module

Description

The Bently Nevada 133835-01 is an Isolated Thermocouple (TC) Temperature I/O Module designed for use within the 3500 machinery protection system. This module provides high-precision temperature monitoring for critical rotating machinery, such as turbines, compressors, and large motors. By utilizing isolated input channels, the 133835-01 ensures signal integrity and minimizes common-mode noise interference, which is essential for accurate bearing and stator temperature tracking. This I/O module is engineered to work in conjunction with the 3500/60 monitor module and supports external termination blocks, facilitating efficient field wiring and simplified maintenance procedures.

Features

• Isolated Inputs: Each thermocouple channel is electrically isolated to prevent ground loops and signal degradation.
• External Termination: Designed for use with external termination blocks, allowing for easier cable management and field maintenance outside the main rack.
• System Integration: Fully compatible with the Bently Nevada 3500 rack series, supporting redundant power and communication configurations.
• Programmable Alarms: Integrates with 3500 rack configuration software to enable user-defined Alert and Danger setpoints for proactive machinery protection.
• Robust Design: Built for harsh industrial environments with a wide operating temperature range.

Applications

• Bearing temperature monitoring in centrifugal compressors.
• Stator winding temperature tracking in large electric motors and generators.
• General-purpose thermocouple monitoring for industrial rotating equipment.
• Critical machinery protection systems requiring high-reliability signal isolation.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use a properly grounded anti-static wrist strap when handling the module to prevent damage to sensitive internal electronics.
• Rack Seating: Ensure the module is fully seated in the designated 3500 rack slot and that the front panel screws are tightened to maintain proper grounding and EMI shielding.
• Power Status: Ensure the rack power is managed according to site safety procedures before inserting or removing any I/O module.
• Wiring: Use shielded thermocouple extension wire to maintain signal integrity. Route signal cables away from high-voltage power lines and high-EMI sources to prevent noise injection.
• External Termination: Ensure the external termination block is correctly wired and securely mounted before connecting to the I/O module.

FAQ

Q: Does this module include the terminal block?
A: The 133835-01 is the I/O module itself. External termination blocks are typically ordered separately depending on your specific wiring requirements.

Q: Is this module compatible with all 3500 racks?
A: Yes, it is designed for standard Bently Nevada 3500 series racks. Ensure your rack configuration software is updated to support the 3500/60 module series.
