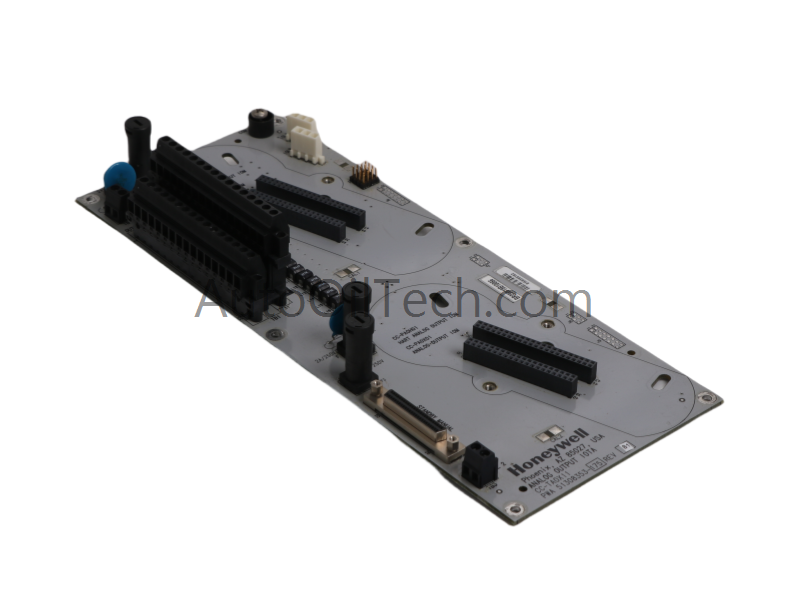

Honeywell CC-TAON11 51306521-175 Analog Output Module

Description

The Honeywell CC-TAON11 51306521-175 is a high-performance Analog Output (AO) module designed for the Experion PKS Series C I/O system. This module serves as a critical interface between the control system and field devices, providing precise current signals to drive valves, actuators, and other modulating final control elements in demanding industrial environments.

Specifications

• Model Number: CC-TAON11
• Part Number: 51306521-175
• Number of Channels: 16 isolated or non-isolated output channels
• Output Signal Range: 4 to 20 mA DC
• Resolution: 12-bit or higher for precision control
• Load Resistance: Supports up to 750 ohms at 24V DC
• Power Requirements: Powered via the Series C I/O Link and 24V DC supply
• Isolation: Galvanic isolation between field wiring and internal system logic
• Operating Temperature: Rated for standard industrial ranges (-40°C to +70°C)

Features

• HART Communication: Supports Highway Addressable Remote Transducer protocol for pass-through of field device diagnostics.
• Hot-Swappable Design: Allows for module replacement without interrupting system power or shutting down the controller.
• Redundancy Support: Can be configured in a redundant pair to ensure high availability for mission-critical loops.
• Onboard Diagnostics: Includes comprehensive self-checking capabilities to detect open wire or short circuit conditions.
• Compact Form Factor: Utilizes the Series C vertical orientation to maximize cabinet space and improve heat dissipation.
• Conformal Coating: Often provided with protective coating to withstand corrosive or humid atmospheric conditions.
